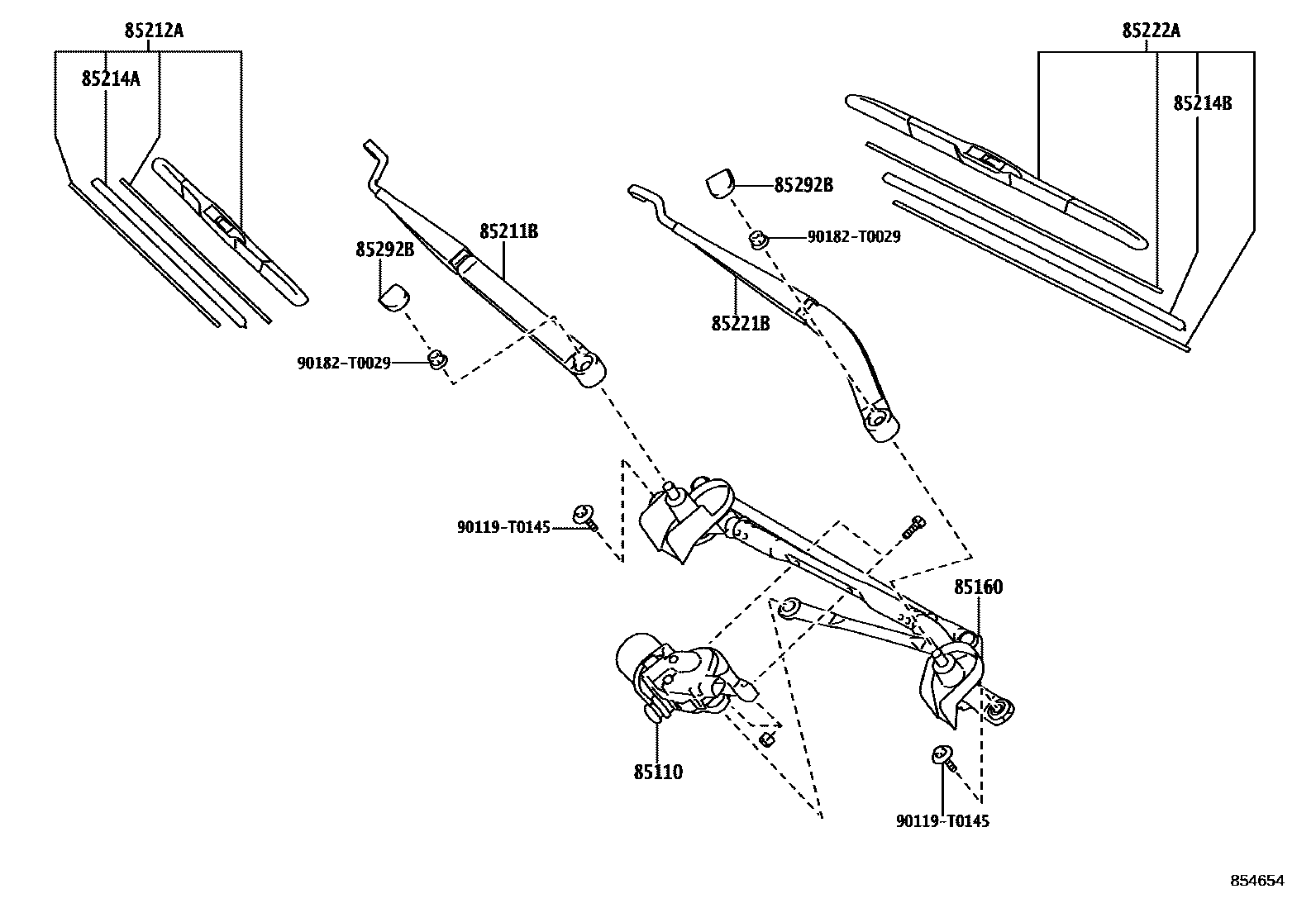

Toyota HILUX (DOUBLE CAB) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main85110-0K171iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202207

main85110-0K201iGUN125,126..MA202108-202208

main85110-0K201iGUN126..PKN202108-202301

main85110-0K201iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202108-202303

main85110-0K201iGUN12#,13#,TGN121..RHD..THP202108-202207

main85110-0K222iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main85110-0K251iGUN126..IND202203-202209

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGUN12#,13#,TGN121..RHD..THP202108-202207

main85150-0K150iGUN126..MMR202108-202210

main85150-0K150iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202207

main85150-0K180iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202109-202303

main85150-0K190iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,SA)202109-202303

main85150-0K220iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main85150-0K230iGUN126..PKN202110-202301

main85150-0K230iGUN125,126..MA202110-202208

main85150-0K250iGUN126..IND202203-202209

85211BARM, FRONT WIPER, RH

main85211-0K131iGUN126..IND202108-202209

main85211-0K131iGUN12#,13#,TGN121..RHD..THP202108-202207

main85211-0K131iGUN125,126..MA202108-202208

main85211-0K131iGUN126..PKN202108-202301

main85211-0K131iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202108-202303

main85211-0K140iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202108-202207

main85211-0K140iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main85211-0K140iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202210

main85211-0K230iTGN126..(H,S)..GEN202108-202207

85212ABLADE, FR WIPER, RH

main85212-42130iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥1,810202108-202210

main85212-42130iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP¥1,810202108-202207

main85212-42130iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)¥1,810202108-202303

main85212-71010iGUN126..IND¥3,190202108-202209

main85212-71010iGUN12#,13#,TGN121..RHD..THP¥3,190202108-202207

main85212-71010iGUN125,126..MA¥3,190202108-202208

main85212-71010iGUN126..PKN¥3,190202108-202301

main85212-71010iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥3,190202108-202303

85214ARUBBER, WIPER, RH

main85214-28090iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP¥750202108-202207

main85214-28090iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥750202108-202210

main85214-28090iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)¥750202108-202303

main85214-53080iGUN125,126..MA¥850202108-202208

main85214-53080iGUN12#,13#,TGN121..RHD..THP¥850202108-202207

main85214-53080iGUN126..IND¥850202108-202209

main85214-53080iGUN126..PKN¥850202108-202301

main85214-53080iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥850202108-202303

85214BRUBBER, WIPER, LH

main85214-28090iGUN126..PKN¥750202108-202301

main85214-28090iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥750202108-202303

main85214-28090iGUN125,126..MA¥750202108-202208

main85214-28090iGUN126..IND¥750202108-202209

main85214-28090iGUN12#,13#,TGN121..RHD..THP¥750202108-202207

main85214-53080iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)¥850202108-202303

main85214-53080iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥850202108-202210

main85214-53080iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP¥850202108-202207

85221BARM, FRONT WIPER, LH

main85221-0K130iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥3,180202108-202303

main85221-0K130iGUN12#,13#,TGN121..RHD..THP¥3,180202108-202207

main85221-0K130iGUN125,126..MA¥3,180202108-202208

main85221-0K130iGUN126..IND¥3,180202108-202209

main85221-0K130iGUN126..PKN¥3,180202108-202301

main85221-0K141iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202210

main85221-0K141iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202108-202207

main85221-0K141iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main85221-0K150iTGN126..(H,S)..GEN202108-202207

85222ABLADE, FR WIPER, LH

main85222-42130iGUN12#,13#,TGN121..RHD..THP¥1,800202108-202207

main85222-42130iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥1,800202108-202303

main85222-42130iGUN126..PKN¥1,800202108-202301

main85222-42130iGUN125,126..MA¥1,800202108-202208

main85222-42130iGUN126..IND¥1,800202108-202209

main85222-71010iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main85222-71010iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202207

main85222-71010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202210

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥200202108-202210

main85292-0D030iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥200202108-202303

main85292-0D030iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥200202108-202207

main85292-0D030iGUN125,126..MA¥200202108-202208

main85292-0D030iGUN126..IND¥200202108-202209

main85292-0D030iGUN126..PKN¥200202108-202301

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
