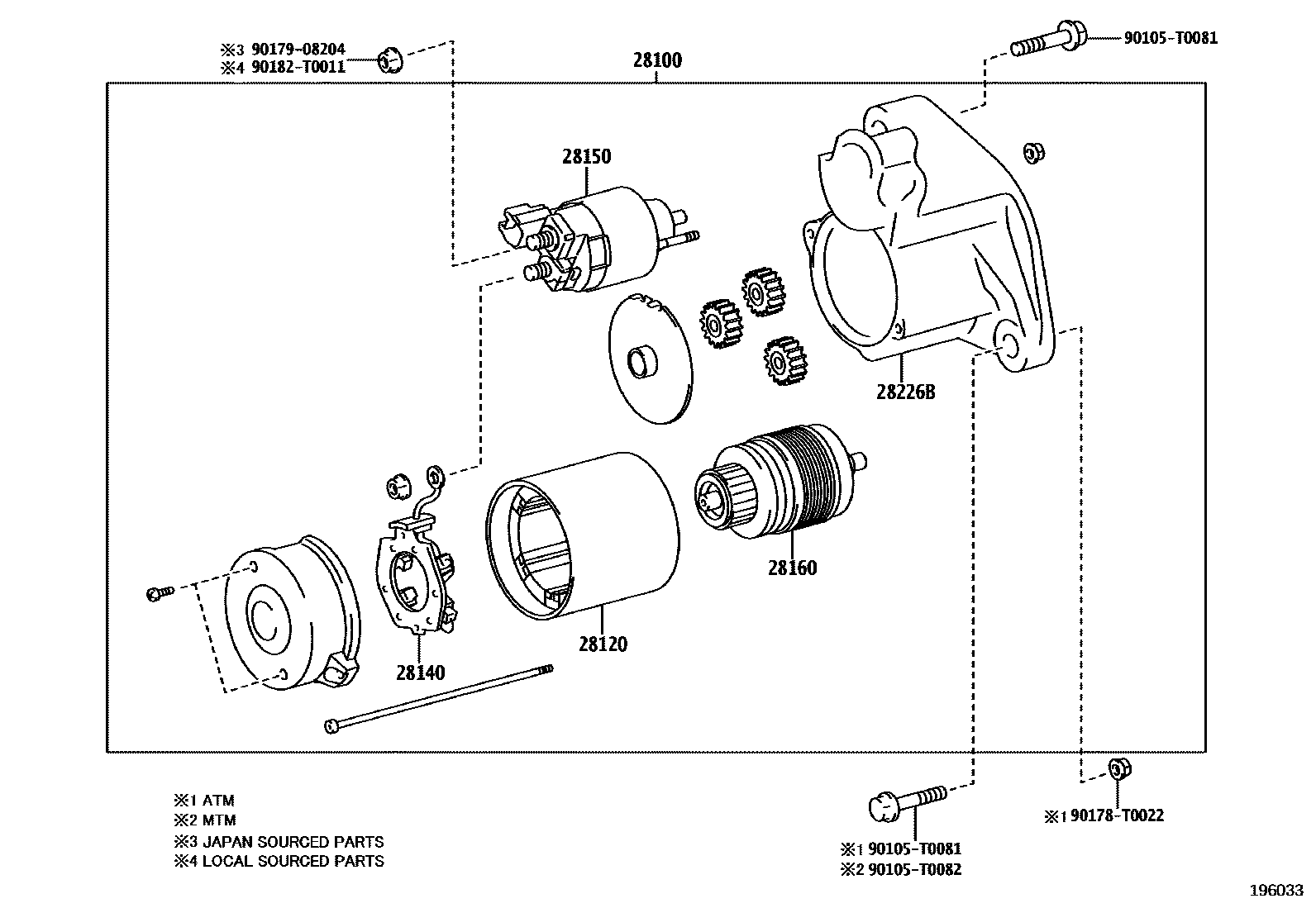

Toyota HILUX (DOUBLE CAB) — STARTER

0001 112V 2.0KW(DENSO) 0002 112V 2.2KW(VALEO) 0003 112V 2.4KW(DENSO),W(STOP & STA0004 112V 2.7KW 0005 112V 1.9KW(BOSCH/SEG) 0007 112V 1.4KW 0008 112V 2.2KW 0009 112V 1.6KW 0010 112V 2.0KW 0011 112V 1.4KW 0012 112V 1.4KW 0013 112V 1.6KW(DENSO) 0014 112V 1.4KW(BOSCH)

28100STARTER ASSY

main28100-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

12V 1.6KW

main28100-0C110i2TRFE..TGN121,126,136..SA202109-202301

12V 1.4KW

main28100-0C120i2TRFE..TGN126,136..AGTP202111-202210

12V 1.4KW

main28100-0C150i2TRFE..TGN128,138202111-202210

12V 1.6KW,DENSO

main28100-0C160i2TRFE..TGN128,138202111-202210

12V 1.4KW,BOSCH

main28100-0L052i2GDFTV..GUN125..LHD..GEN¥88,300202108-202207

12V 2.7KW,ASIA COLD COUNTRY SPEC

main28100-0L052i2GDFTV..GUN135..L..GEN¥88,300202108-202207

12V 2.7KW

main28100-0L052i2GDFTV..GUN135..L..GEN¥88,300202108-202207

12V 2.7KW,MOROCCO SPEC

main28100-0L100i1GDFTV..GUN126..6FC..TH¥84,400202108-202207

12V 2.4KW

main28100-0L100i1GDFTV..GUN126..6FC..TH¥84,400202108-202207

12V 2.4KW,TOYOTA STOP & START SYSTEM-WITH

main28100-0L180i1GDFTV..GUN126..6FC..TH¥76,600202108-202207

12V 2.0KW,TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28100-0L180i1GDFTV..GUN126..IND,MMR¥76,600202108-202209

12V 2.0KW,DENSO

main28100-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥76,600202108-202207

12V 2.0KW,DENSO

main28100-0L180i1GDFTV..GUN126..PKN¥76,600202110-202301

12V 2.0KW

main28100-0L180i1GDFTV,2GDFTV..GUN125,126..MA¥76,600202110-202208

12V 2.0KW

main28100-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202206

12V 1.9KW,BOSCH

sub28100-0L201

main28100-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202207

12V 1.9KW,BOSCH

sub28100-0L201

main28100-0L201i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202207-202210

12V 1.9KW,BOSCH

main28100-0L201i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202208-202210

12V 1.9KW,BOSCH

main28100-0L220i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)202109-202301

12V 1.9KW

sub28100-0L221

main28100-0L220i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA202109-202303

12V 1.9KW

sub28100-0L221

main28100-0L261i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..(INDP,THP)..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..(INDP,MMRP,T202108-202205

12V 2.2KW,VALEO

sub28100-0L262

main28100-0L261i1GDFTV..GUN126..6FC..TH202108-202205

12V 2.2KW,TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

sub28100-0L262

main28100-0L262i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202206-202207

12V 2.2KW,VALEO

main28100-0L262i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202206-202207

12V 2.2KW,TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28100-0L262i1GDFTV..GUN126..IND202206-202209

12V 2.2KW,VALEO

main28100-0L262i1GDFTV..GUN126..MMR202206-202210

12V 2.2KW,VALEO

main28100-31190i1GRFE..GGN125..SA¥58,800202108-202301

12V 1.4KW

main28100-31190i1GRFE..GGN125..AGTP¥58,800202108-202210

12V 1.4KW

main28100-31190i1GRFE..GGN125..GCC¥58,800202108-202207

12V 1.4KW

main28100-54491i5LE..LAN125202109-202301

12V 2.2KW

main28100-75141i2TRFE..TGN126..L..GEN¥92,900202108-202207

12V 2.0KW

main28100-75141i2TRFE..TGN126..(H,S)..GEN¥92,900202108-202207

12V 2.0KW,ASIA COLD COUNTRY SPEC

28120YOKE ASSY, STARTER

main28120-0C090i2TRFE..TGN128,138202111-202210

DENSO

main28120-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

main28120-0C120i2TRFE..TGN126,136..AGTP202111-202210

main28120-0C160i2TRFE..TGN128,138202111-202210

BOSCH

main28120-0L050i2GDFTV..GUN125..LHD..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main28120-0L050i2GDFTV..GUN125..LHD..GEN202108-202207

MOROCCO SPEC

main28120-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥8,700202108-202207

DENSO

main28120-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥8,700202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN125,126..MA¥8,700202110-202208

main28120-0L180i1GDFTV..GUN126..IND,MMR¥8,700202108-202209

DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN125,126,13#..AGTP¥8,700202108-202210

DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)¥8,700202108-202301

DENSO

main28120-0L180i1GDFTV..GUN126..PKN¥8,700202110-202301

main28120-0L180i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA¥8,700202108-202303

DENSO

main28120-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202208

BOSCH

main28120-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202207

BOSCH

main28120-0L260i1GDFTV..GUN126..MMR202108-202210

VALEO

main28120-0L260i1GDFTV..GUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28120-0L260i1GDFTV..GUN126..IND202108-202209

VALEO

main28120-0L260i1GDFTV..GUN126..6FC..TH202108-202207

VALEO

main28120-54260i5LE..LAN125202109-202301

main28120-54380i2TRFE..TGN126..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main28120-66040i1GRFE..GGN125..GCC202108-202207

main28120-66040i1GRFE..GGN125..SA202108-202301

main28120-66040i1GRFE..GGN125..AGTP202108-202210

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

main28140-0C080i2TRFE..TGN128,138202111-202210

DENSO

main28140-0C120i2TRFE..TGN126,136..AGTP202111-202210

main28140-0L180i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA¥0202108-202303

DENSO

main28140-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥0202108-202207

DENSO

main28140-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥0202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28140-0L180i1GDFTV,2GDFTV..GUN125,126..MA¥0202110-202208

main28140-0L180i1GDFTV..GUN126..IND,MMR¥0202108-202209

DENSO

main28140-0L180i1GDFTV,2GDFTV..GUN125,126,13#..AGTP¥0202108-202210

DENSO

main28140-0L180i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)¥0202108-202301

DENSO

main28140-0L180i1GDFTV..GUN126..PKN¥0202110-202301

main28140-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202207

BOSCH

main28140-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202208

BOSCH

main28140-0L260i1GDFTV..GUN126..6FC..TH202108-202207

VALEO

main28140-0L260i1GDFTV..GUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28140-0L260i1GDFTV..GUN126..IND202108-202209

VALEO

main28140-0L260i1GDFTV..GUN126..MMR202108-202210

VALEO

main28140-35060i1GRFE..GGN125..AGTP202108-202210

main28140-35060i1GRFE..GGN125..SA202108-202301

main28140-35060i1GRFE..GGN125..GCC202108-202207

main28140-62030i2TRFE..TGN126..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main28140-64040i5LE..LAN125202109-202301

main28140-77090i2GDFTV..GUN135..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main28140-77090i2GDFTV..GUN125..LHD..GEN202108-202207

MOROCCO SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

main28150-0C080i2TRFE..TGN128,138202111-202210

DENSO

main28150-0C120i2TRFE..TGN126,136..AGTP202111-202210

main28150-0C160i2TRFE..TGN128,138202111-202210

BOSCH

main28150-0L050i2GDFTV..GUN125..LHD..L..GEN¥25,000202108-202207

ASIA COLD COUNTRY SPEC

main28150-0L050i2GDFTV..GUN125..LHD..GEN¥25,000202108-202207

MOROCCO SPEC

main28150-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202208

BOSCH

main28150-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202207

BOSCH

main28150-0L260i1GDFTV..GUN126..MMR202108-202210

VALEO

main28150-0L260i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

VALEO

main28150-0L260i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28150-0L260i1GDFTV..GUN126..IND202108-202209

VALEO

main28150-0Y170i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

DENSO

main28150-0Y170i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)202108-202301

DENSO

main28150-0Y170i1GDFTV,2GDFTV..GUN125,126..MA202110-202208

main28150-0Y170i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA202108-202303

DENSO

main28150-0Y170i1GDFTV..GUN126..IND,MMR202108-202209

DENSO

main28150-0Y170i1GDFTV..GUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28150-0Y170i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202108-202210

DENSO

main28150-0Y170i1GDFTV..GUN126..PKN202110-202301

main28150-31190i1GRFE..GGN125..AGTP202108-202210

main28150-31190i1GRFE..GGN125..GCC202108-202207

main28150-31190i1GRFE..GGN125..SA202108-202301

main28150-54330i5LE..LAN125¥14,500202109-202301

main28150-75120i2TRFE..TGN126..L..GEN¥9,900202108-202207

ASIA COLD COUNTRY SPEC

28160ARMATURE ASSY, STARTER

main28160-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

main28160-0C120i2TRFE..TGN126,136..AGTP202111-202210

main28160-0C150i2TRFE..TGN128,138202111-202210

DENSO

main28160-0C160i2TRFE..TGN128,138202111-202210

BOSCH

main28160-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28160-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

DENSO

main28160-0L180i1GDFTV,2GDFTV..GUN125,126..MA202110-202208

main28160-0L180i1GDFTV..GUN126..IND,MMR202108-202209

DENSO

main28160-0L180i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202108-202210

DENSO

main28160-0L180i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)202108-202301

DENSO

main28160-0L180i1GDFTV..GUN126..PKN202110-202301

main28160-0L180i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA202108-202303

DENSO

main28160-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202208

BOSCH

main28160-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202207

BOSCH

main28160-0L260i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

VALEO

main28160-0L260i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28160-0L260i1GDFTV..GUN126..IND202108-202209

VALEO

main28160-0L260i1GDFTV..GUN126..MMR202108-202210

VALEO

main28160-54140i2GDFTV..GUN125..LHD..GEN¥20,000202108-202207

ASIA COLD COUNTRY SPEC

main28160-54140i2GDFTV..GUN135..L..GEN¥20,000202108-202207

MOROCCO SPEC

main28160-64041i5LE..LAN125¥18,500202109-202301

main28160-74070i1GRFE..GGN125..GCC202108-202207

main28160-74070i1GRFE..GGN125..AGTP202108-202210

main28160-74070i1GRFE..GGN125..SA202108-202301

main28160-75120i2TRFE..TGN126..(H,S)..GEN¥18,500202108-202207

ASIA COLD COUNTRY SPEC

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207

main28226-0C120i2TRFE..TGN126,136..AGTP202111-202210

main28226-0C150i2TRFE..TGN128,138202111-202210

DENSO

main28226-0C160i2TRFE..TGN128,138202111-202210

BOSCH

main28226-0L180i1GDFTV..GUN126..6FC..TH¥19,700202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28226-0L180i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,¥19,700202108-202207

DENSO

main28226-0L180i1GDFTV,2GDFTV..GUN125,126..MA¥19,700202110-202208

main28226-0L180i1GDFTV..GUN126..IND,MMR¥19,700202108-202209

DENSO

main28226-0L180i1GDFTV,2GDFTV..GUN125,126,13#..AGTP¥19,700202108-202210

DENSO

main28226-0L180i1GDFTV..GUN126..PKN¥19,700202110-202301

main28226-0L180i1GDFTV..GUN126..6F..SA;1GDFTV..GUN126..6FC..(GHA,KEN,SA);1GDFTV,2GDFTV..GUN122,125,13#..SA¥19,700202108-202303

DENSO

main28226-0L180i1GDFTV,2GDFTV..GUN125,126..6F..(GHA,KEN)¥19,700202108-202301

DENSO

main28226-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202111-202207

BOSCH

main28226-0L200i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202111-202208

BOSCH

main28226-0L260i1GDFTV..GUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28226-0L260i2GDFTV..GUN135..H..GEN;1GDFTV..GUN126..THP..6F;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,121,122,125,136..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,202108-202207

VALEO

main28226-0L260i1GDFTV..GUN126..MMR202108-202210

VALEO

main28226-0L260i1GDFTV..GUN126..IND202108-202209

VALEO

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022¥100

9017908204

main90179-08204¥140

90182T0011

main90182-T0011¥110

11 parts on this diagram · 13 diagrams in section
