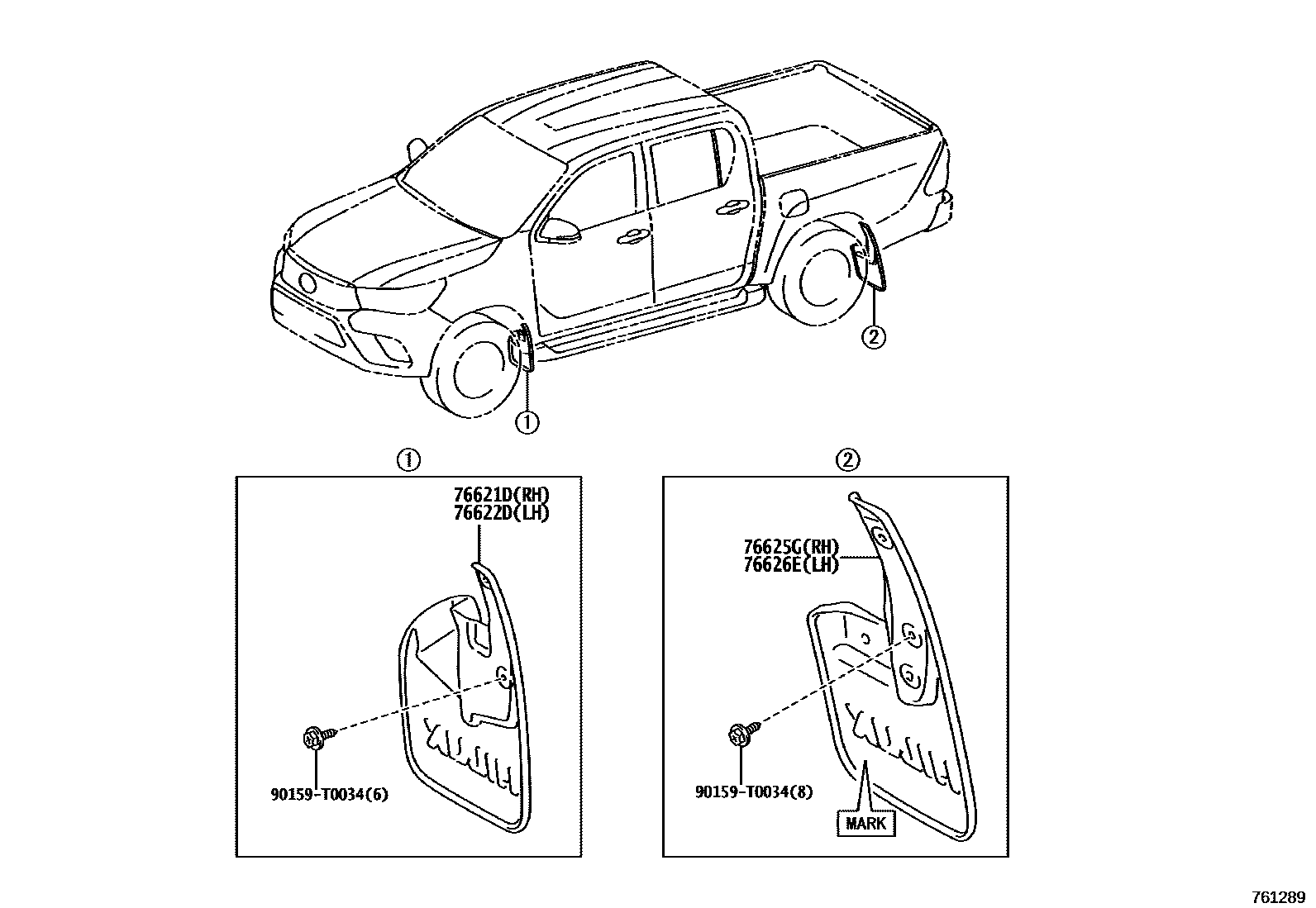

Toyota HILUX (DOUBLE CAB) — SPOILER & SIDE MUDGUARD
76621DMUDGUARD, FRONT FENDER, RH
main76621-0K130iGUN122..IV3;GUN122..RHD;TGN126..6FC..L;GUN125..RHD..6F..L..GEN;GUN120,121,TGN121..ARL,GEN,TH;GUN125,135,TGN136..THP..L..(LA,PH);GUN122,126,TGN126..LHD..THP..(5F,6FC202108-202207
MUD GUARD-WITH(FRONT & REAR)
main76621-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥2,220202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main76621-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥2,220202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76621-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥2,220202108-202207
MUD GUARD-WITH(FRONT & REAR)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&MUD GUARD-WITH(FRONT &REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76621-0K150iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202109-202303
main76621-0K160iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
TIRE & DISC WHEEL-225/70R17C STEEL
MUD GUARD-WITH(FRONT & REAR)
main76621-0K180iGUN125..AGTP..6FC;GUN135..AGTP..S..LA;GUN125,135..6F..BZAG;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202111-202210
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
76622DMUDGUARD, FRONT FENDER, LH
main76622-0K130iGUN122..S..GEN;TGN121..6FC..H;GUN126..6F..L..LA;TGN126..5F..L..GCC;GUN125,TGN136..LHD..MTM..L..(GCC,GEN)202108-202207
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&MUD GUARD-WITH(FRONT &REAR)
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main76622-0K140iGUN126..S..GEN;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN126..6FC..H..GEN;GUN135..L..(ARL,TH,VN);GUN126..LHD..6F..H..GEN;GUN126..THP..(H,S)..(ARL,LA,PH,TH,TWN,VN);GUN1¥1,840202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
main76622-0K150iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202109-202303
main76622-0K160iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
TIRE & DISC WHEEL-225/70R17C STEEL
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
main76625-0K250iGUN125..THP..6F..L..(GEN,LA,PH);GUN135,TGN126..LHD..THP..L..(GCC,GEN,LA);GUN126,TGN121,136..THP..(5F,6FC)..L..(ARL,LA)202108-202207
MUD GUARD-WITH(FRONT & REAR)
main76625-0K250iGUN125..THP..6F..L..(GEN,LA,PH);GUN135,TGN126..LHD..THP..L..(GCC,GEN,LA);GUN126,TGN121,136..THP..(5F,6FC)..L..(ARL,LA)202108-202207
MUD GUARD-WITH(REAR ONLY)
TIRE & DISC WHEEL-265/60R18 ALUMINUM,MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202301
MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR),MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&MUD GUARD-WITH(FRONT &REAR),MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL,MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR),MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM,MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR),MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
MUD GUARD-WITH(FRONT & REAR),MARK = WA
main76625-0K270iGUN125..L..IDN;GUN126..S..GEN;GUN135..L..(GEN,TH);GUN125,126..6FC..(H,L)..GEN;GUN126..THP..(H,S)..(LA,PH,TH,TWN);GUN126,TGN126..LHD..MTM..H..(GCC,GEN);GUN125,13#,TG¥2,220202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM,MARK = WA
MARK = WB
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
main76625-0K320iGUN125..L..GHA;TGN126,136..L..SA;GUN125,135,LAN125..MTM..(L,S)..(KEN,SA)202109-202303
main76625-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
76626EMUDGUARD, QUARTER PANEL, REAR LH
MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(REAR ONLY)
MUD GUARD-WITH(REAR ONLY)
main76626-0K250iGUN125..THP..6F..L..(GEN,LA,PH);GUN135,TGN126..LHD..THP..L..(GCC,GEN,LA);GUN126,TGN121,136..THP..(5F,6FC)..L..(ARL,LA)202108-202207
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL,MARK = WA
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR),MARK = WA
TIRE & DISC WHEEL-265/65R17 ALUMINUM,MARK = WA
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR),MARK = WA
TIRE & DISC WHEEL-265/60R18 ALUMINUM,MARK = WA
MUD GUARD-WITH(FRONT & REAR),MARK = WA
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM,MARK = WA
MARK = WA
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&MUD GUARD-WITH(FRONT &REAR),MARK = WA
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&MUD GUARD-WITH(FRONT &REAR),MARK = WA
MARK = WB
MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-225/70R17C STEEL
main76626-0K310iGUN125..AGTP..6FC;GUN135..AGTP..S..LA;GUN125,135..6F..BZAG;GGN125,GUN126,136,TGN126,136..AGTP..(H,S)202111-202210
TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT & REAR)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT & REAR)
MUD GUARD-WITH(FRONT & REAR)
main76626-0K320iGUN125..L..GHA;TGN126,136..L..SA;GUN125,135,LAN125..MTM..(L,S)..(KEN,SA)202109-202303
main76626-0K330iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
90159T0034
main90159-T0034
5 parts on this diagram · 1 diagram in section
