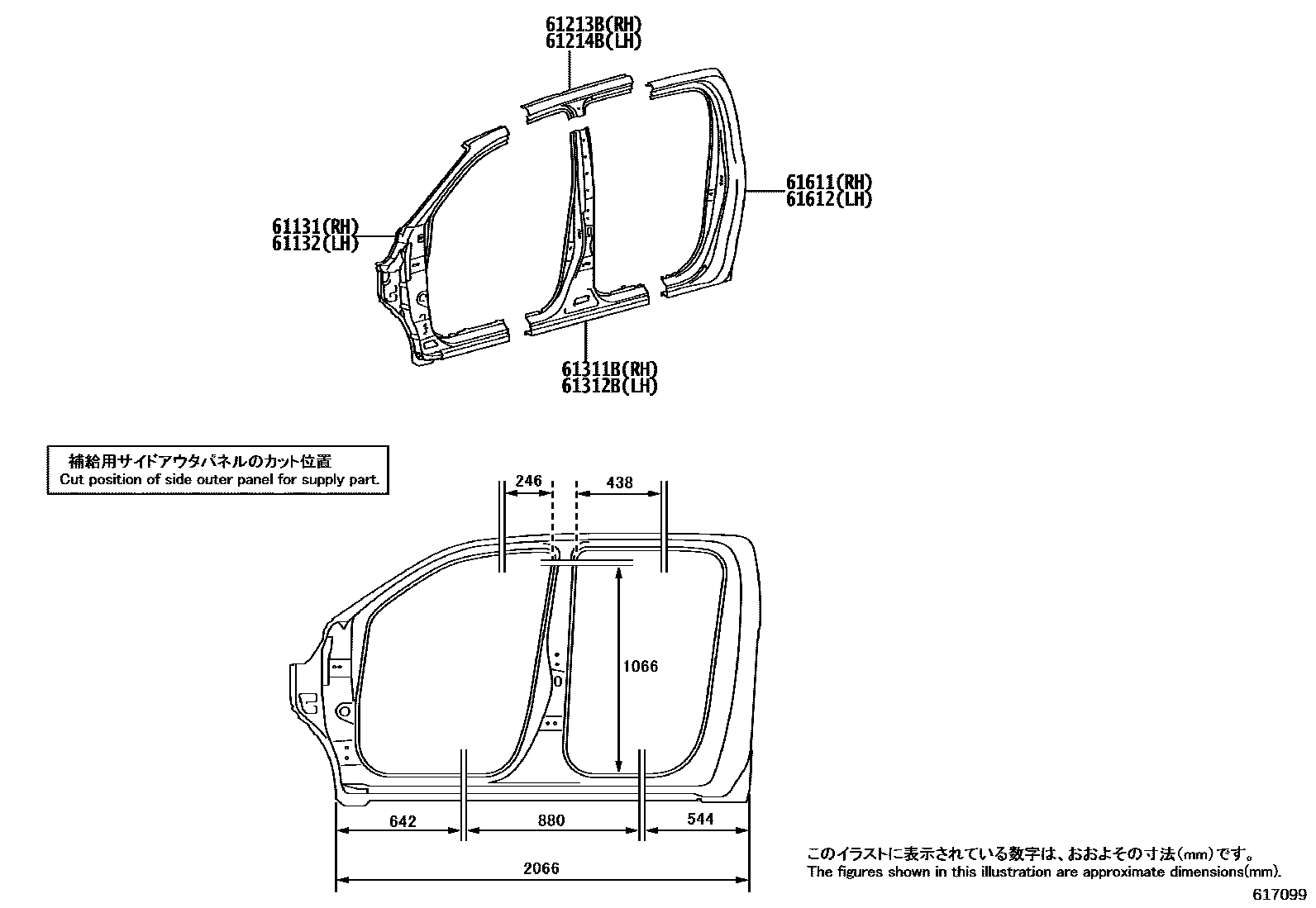

Toyota HILUX (DOUBLE CAB) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK010iGUN126..IND¥15,200202108-202303

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥15,200202108-202303

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥3,860202108-202303

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK010iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥3,860202108-202303

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥13,400202108-202303

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥13,400202108-202303

61611PANEL, QUARTER, RH

main61611-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥16,700202108-202303

61612PANEL, QUARTER, LH

main61612-KK010iGUN125,126..MA¥16,700202108-202303

8 parts on this diagram · 3 diagrams in section
