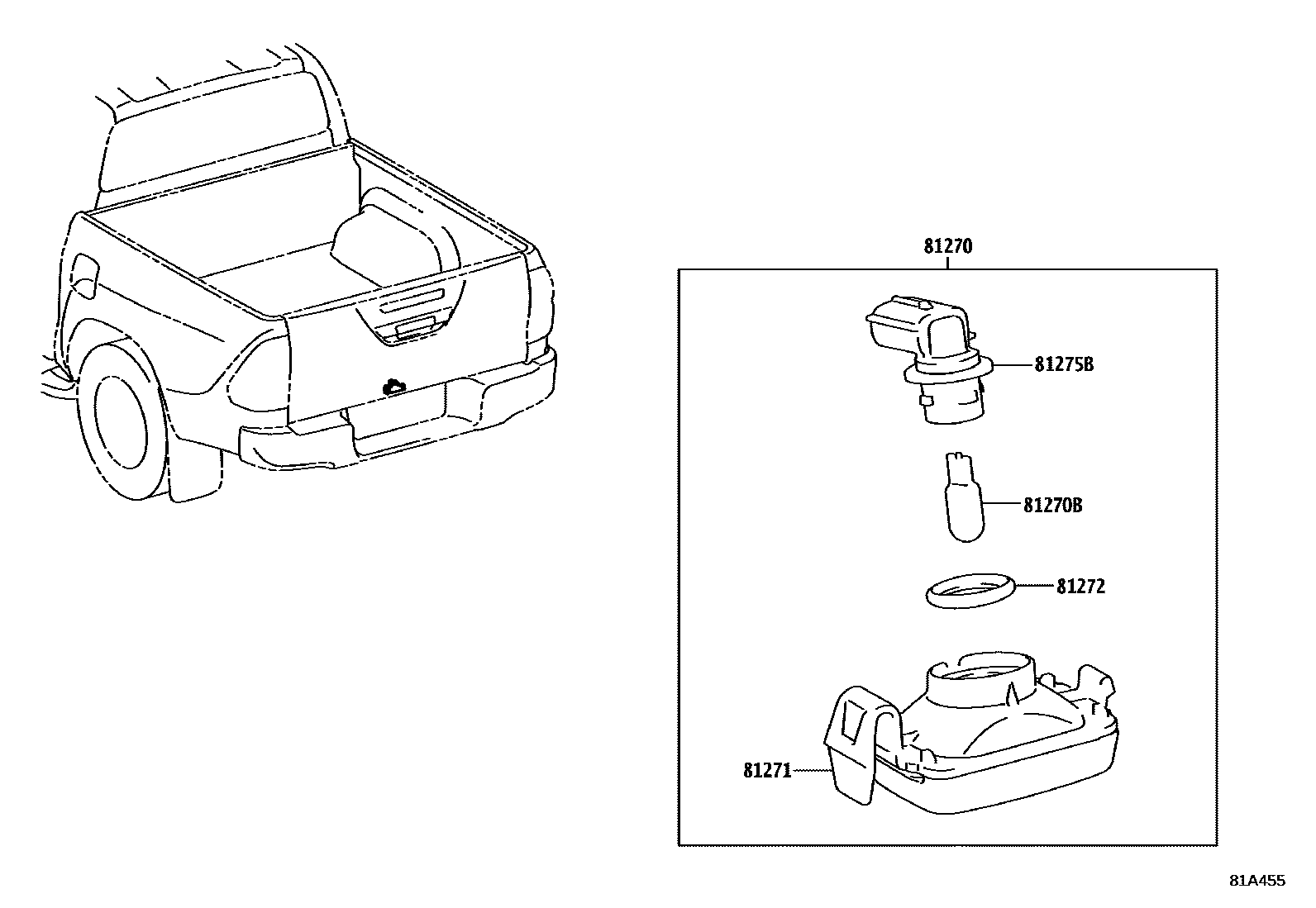

Toyota HILUX (DOUBLE CAB) — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0K080iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,590202108-202207

main81270-0K080iGUN125,126..MA¥1,590202108-202208

main81270-0K080iGUN126..IND¥1,590202108-202209

main81270-0K080iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥1,590202108-202210

main81270-0K080iGUN126..PKN¥1,590202108-202301

main81270-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥1,590202108-202303

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-TB003iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥160202108-202207

12V 5W

main90981-TB003iGUN125,126..MA¥160202108-202208

12V 5W

main90981-TB003iGUN126..IND¥160202108-202209

12V 5W

main90981-TB003iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥160202108-202210

12V 5W

main90981-TB003iGUN126..PKN¥160202108-202301

12V 5W

main90981-TB003iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥160202108-202303

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0K080iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥750202108-202207

main81271-0K080iGUN125,126..MA¥750202108-202208

main81271-0K080iGUN126..IND¥750202108-202209

main81271-0K080iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥750202108-202210

main81271-0K080iGUN126..PKN¥750202108-202301

main81271-0K080iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥750202108-202303

81272GASKET, LICENSE PLATE LAMP LENS

main90069-38039iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥170202108-202207

main90069-38039iGUN125,126..MA¥170202108-202208

main90069-38039iGUN126..IND¥170202108-202209

main90069-38039iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥170202108-202210

main90069-38039iGUN126..PKN¥170202108-202301

main90069-38039iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥170202108-202303

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90069-81108iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥710202108-202207

main90069-81108iGUN125,126..MA¥710202108-202208

main90069-81108iGUN126..IND¥710202108-202209

main90069-81108iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥710202108-202210

main90069-81108iGUN126..PKN¥710202108-202301

main90069-81108iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥710202108-202303

5 parts on this diagram · 1 diagram in section
