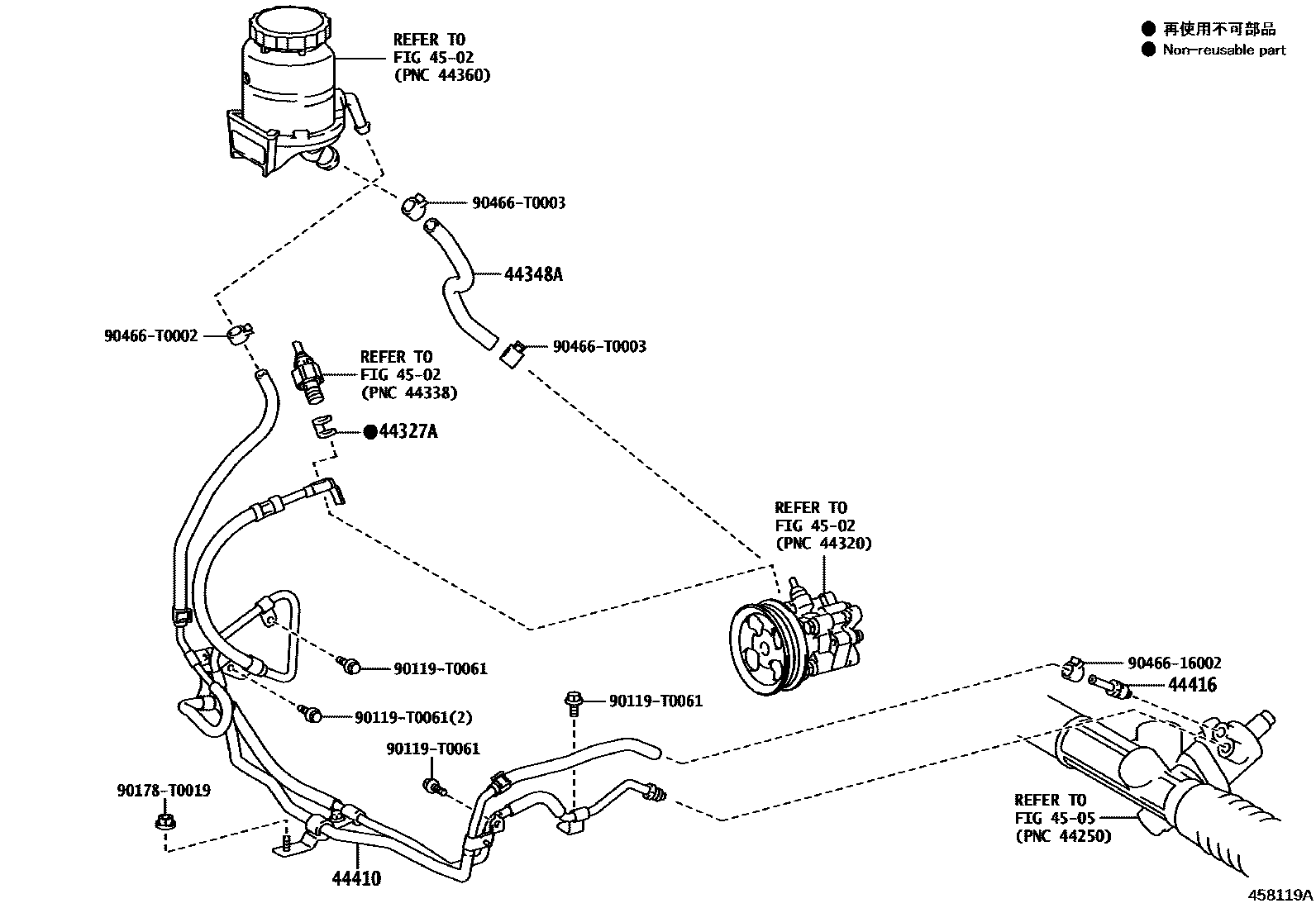

Toyota HILUX (DOUBLE CAB) — POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN126..IND¥160202108-202209

main44327-30030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥160202108-202210

main44327-30030iGUN126..PKN¥160202108-202301

main44327-30030iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥160202108-202303

main44327-30030iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥160202108-202207

main44327-30030iGUN125,126..MA¥160202108-202208

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K070iLAN125202109-202301

main44348-0K080iGGN125..AGTP202108-202210

main44348-0K080iGGN125..SA202108-202301

main44348-0K080iGGN125..GCC202108-202207

main44348-0K110iGUN12#,13#..THP¥1,400202108-202207

main44348-0K110iGUN126..IND¥1,400202108-202209

main44348-0K110iGUN125,126,13#..AGTP¥1,400202108-202210

main44348-0K110iGUN126..PKN¥1,400202108-202301

main44348-0K110iGUN122,125,126,13#..GHA,KEN,MMR,SA¥1,400202108-202303

main44348-0K110iGUN125,126..MA¥1,400202108-202208

44410TUBE ASSY, PRESSURE FEED

main44410-0K180iTGN121..ARL202108-202207

main44410-0K200iGUN120,121,122..RHD202108-202207

main44410-0K210iTGN136..RHD202109-202301

main44410-0K240iGGN125..GCC202108-202207

main44410-0K250iGGN125..AGTP202111-202210

main44410-0K271iGUN125..S..IDN;GUN125..RHD..L..GEN202108-202207

VSC-WITHOUT

main44410-0K271iGUN126..L..PKN202108-202301

main44410-0K271iGUN125..L..MA202108-202208

main44410-0K290iGUN125,126..(H,S)..MA202108-202208

main44410-0K290iGUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN135..L..(ARL,GEN);GUN125,126,136..RHD..(ARL,GEN,TH)202108-202207

VSC-W(*HSAC & *TSC)

main44410-0K290iGUN126..IND202108-202209

main44410-0K290iGUN126..(H,S)..PKN202108-202301

main44410-0K290iGUN125,126,13#..RHD..(KEN,SA)202108-202303

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202207

main44416-0K040iGUN125,126..MA202108-202208

main44416-0K040iGUN126..IND202108-202209

main44416-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202210

main44416-0K040iGUN126..PKN202108-202301

main44416-0K040iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

4502

4505

90119T0061

main90119-T0061¥80

90178T0019

main90178-T0019

9046616002

main90466-16002¥220

90466T0002

main90466-T0002¥180

90466T0003

main90466-T0003¥220

11 parts on this diagram · 9 diagrams in section
