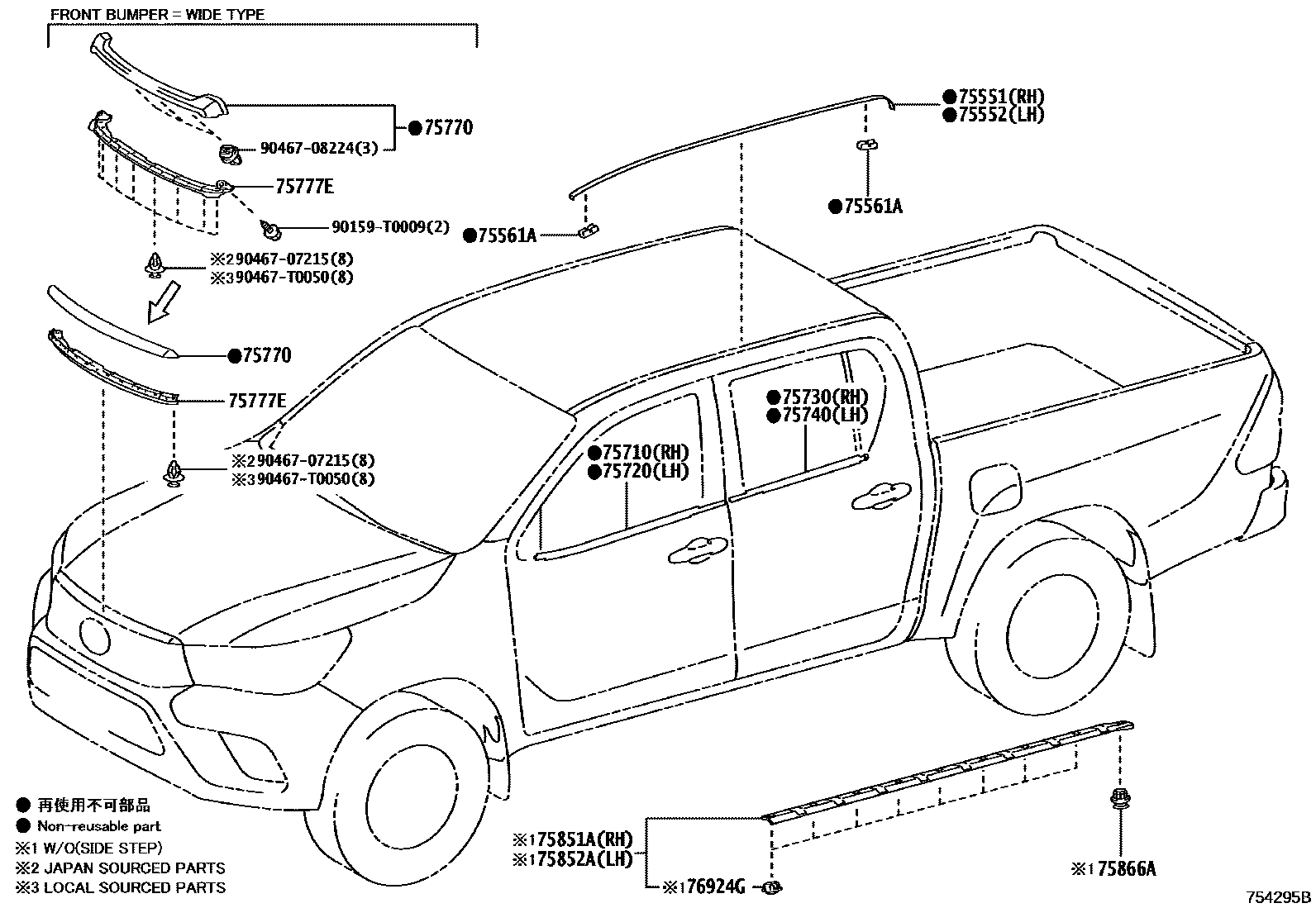

Toyota HILUX (DOUBLE CAB) — MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
main68160-0K010iGUN126..S..GEN;GUN125..THP..6FC;GUN135..THP..(L,S);GUN125..THP..6F..(L,S);GUN125..LHD..THP..6F..H;GUN126..THP..(ARL,GCC,LA,TWN);GGN125,GUN120,121,122,136,TGN120,121¥2,880202108-202210
DOOR BELT MOULDING-WITH(BLACK)
PLANT TMT
PLANT TKM
75720MOULDING ASSY, FRONT DOOR BELT, LH
main68210-0K010iGUN126..S..GEN;GUN125..THP..6FC;GUN135..THP..(L,S);GUN125..THP..6F..(L,S);GUN125..LHD..THP..6F..H;GUN126..THP..(ARL,GCC,LA,TWN);GGN125,GUN120,121,122,136,TGN120,121¥2,880202108-202210
DOOR BELT MOULDING-WITH(BLACK)
PLANT TMT
PLANT TKM
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K010iGUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125..RHD..H..GEN;GUN126..H..(GEN,PH,VN)¥2,480202108-202210
DOOR BELT MOULDING-WITH(BLACK)
75740MOULDING ASSY, REAR DOOR BELT, LH
main68230-0K010iGUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125..RHD..H..GEN;GUN126..H..(GEN,PH,VN)¥2,480202108-202210
DOOR BELT MOULDING-WITH(BLACK)
75770MOULDING ASSY, HOOD, FRONT
main75770-0K311iTGN136..GEN;TGN120,121..GCC;GUN122..5F..(H,S);GUN122,125,TGN126..L..GCC¥3,790202108-202207
PLATED
PLATED,RADIATOR GRILLE-CHROME PLATED
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
PLATED
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.,RADIATOR GRILLE-PAINTING
NO PAINT REQ.
main75770-0K390iGUN135..L..(GEN,VN);GUN126,136..RHD..THP..S;GUN125..THP..6FC..(GEN,LA);GUN126,135..THP..S..(LA,PH,VN);GUN125,TGN126..THP..MTM..S..(GEN,LA,VN)202108-202207
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
PLATED
PLATED,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-265/60R18 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
main75770-0K460iGUN125..S..GHA;GUN126,136..S..SA;GUN125,TGN126,136..LHD..(5F,6FC)..S..SA202109-202303
NO PAINT REQ.
main75770-0K470iGUN125,126,136..H..(GHA,KEN,SA);GGN125,GUN125,135,TGN136..RHD..(5F,6FC)..SA202109-202303
PLATED
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&REAR BUMPER-STEP TYPE(PLATED)
PLATED
75777EPAD, HOOD FRONT MOULDING
main53393-0K020iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202109-202303
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202210
TIRE & DISC WHEEL-265/65R17 STEEL
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202210
TIRE & DISC WHEEL-265/65R17 STEEL&REAR BUMPER-STEP TYPE(PLATED)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202210
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202210
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53393-0K041iGUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)¥2,880202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&RADIATOR GRILLE-CHROME PLATED
main53393-0K051iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K010iGUN125..PH;GUN135..6F..ARL;TGN126..THP..L..LA;GUN125..RHD..S..GEN;GUN126..THP..6F..S..LA;GUN126..RHD..6F..S..GEN;TGN126..THP..S..(GEN,LA);GUN125..RHD..6F..L..(GEN,I¥4,720202108-202207
STEP & STEP COVER-WITHOUT
main75851-0K060iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..S..SA;GUN125..(H,L)..(GHA,KEN,SA);GUN122,126,13#,LAN125,TGN121,126..(L,S)..SA202109-202303
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K010iGUN125..PH;GUN135..6F..ARL;TGN126..THP..L..LA;GUN125..RHD..S..GEN;GUN126..THP..6F..S..LA;GUN126..RHD..6F..S..GEN;TGN126..THP..S..(GEN,LA);GUN125..RHD..6F..L..(GEN,I¥4,720202108-202207
STEP & STEP COVER-WITHOUT
main75852-0K060iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..S..SA;GUN125..(H,L)..(GHA,KEN,SA);GUN122,126,13#,LAN125,TGN121,126..(L,S)..SA202109-202303
main75852-0K070iGUN126..AGTP..6FC..H..LA;GUN126,TGN136..(L,S)..BZAG;GUN125,13#,TGN138..AGTP..(L,S)202111-202210
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
main76923-52021iGUN125..PH;GUN135..6F..ARL;TGN126..THP..L..LA;GUN125..RHD..S..GEN;GUN126..THP..6F..S..LA;GUN126..RHD..6F..S..GEN;TGN126..THP..S..(GEN,LA);GUN125..RHD..6F..L..(GEN,I¥220202108-202301
STEP & STEP COVER-WITHOUT
main76923-52021iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..S..SA;GUN125..(H,L)..(GHA,KEN,SA);GUN122,126,13#,LAN125,TGN121,126..(L,S)..SA¥220202108-202303
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010iGUN125..PH;GUN135..6F..ARL;TGN126..THP..L..LA;GUN125..RHD..S..GEN;GUN126..THP..6F..S..LA;GUN126..RHD..6F..S..GEN;TGN126..THP..S..(GEN,LA);GUN125..RHD..6F..L..(GEN,I¥160202108-202210
STEP & STEP COVER-WITHOUT
main76924-0K020iTGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..S..SA;GUN125..(H,L)..(GHA,KEN,SA);GUN122,126,13#,LAN125,TGN121,126..(L,S)..SA202109-202303
90159T0009
main90159-T0009
9046707215
9046708224
90467T0050
main90467-T0050
17 parts on this diagram · 2 diagrams in section
