EPC Data

Toyota HILUX (DOUBLE CAB) — MIRROR

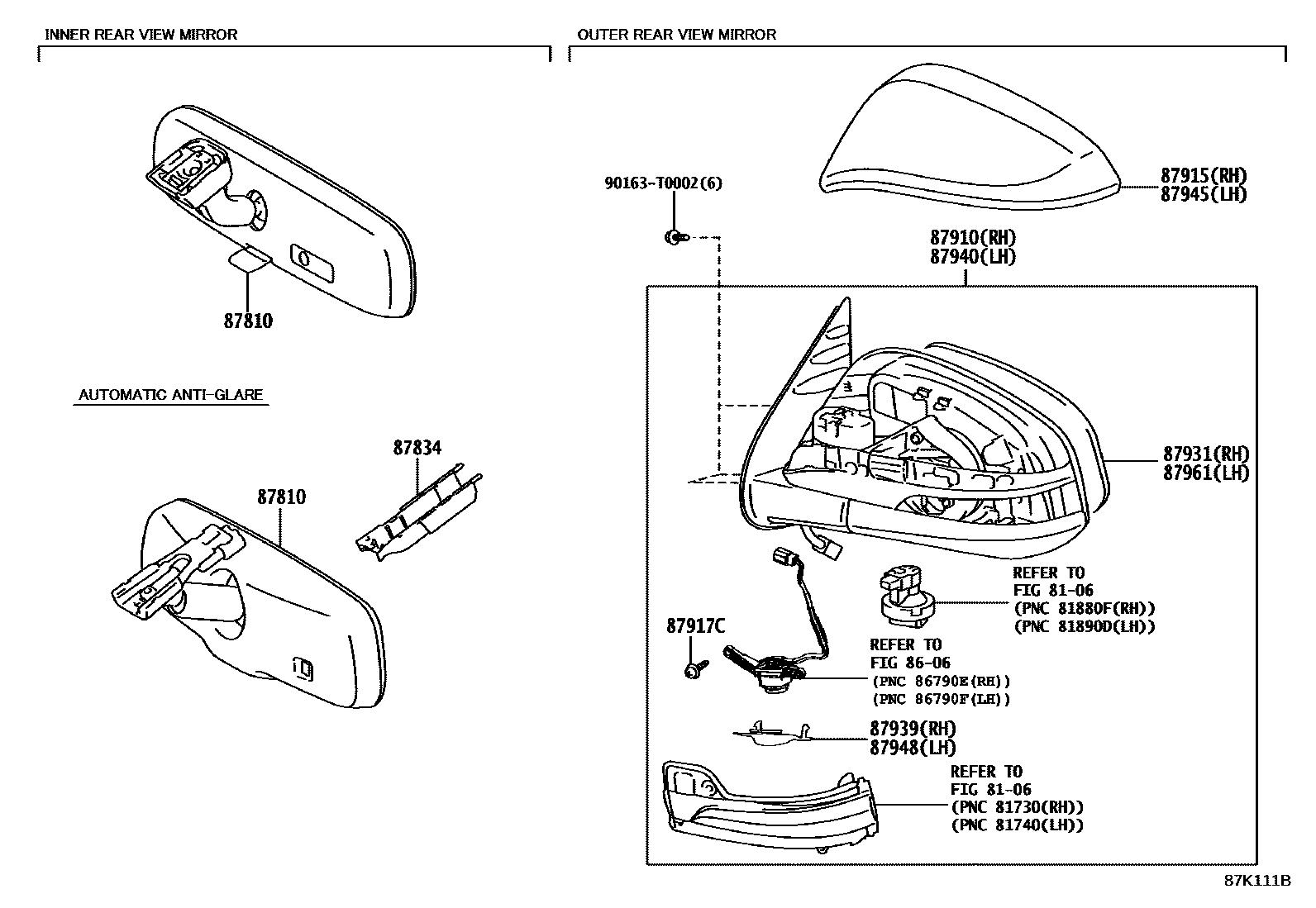

Parts diagram
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041i¥5,100202108-202303
main87810-0WG30i202108-202301
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87810-0WG30i202108-202209
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0K010i202108-202301
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87818-0K010i202108-202209
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0K741i202108-202303
NO PAINT REQ.
main87910-0K741i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main87910-0K741i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87910-0K751i202111-202210
NO PAINT REQ.
main87910-0K751i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
main87910-0K751i202111-202210
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87910-0K792i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87910-0K792i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87910-0K792i202108-202301
NO PAINT REQ.
main87910-0K792i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87910-0K792i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87910-0KC31i202108-202303
NO PAINT REQ.
main87910-0KC41i202108-202301
NO PAINT REQ.
main87910-0KC51i202108-202207
NO PAINT REQ.
main87910-0KC61i202108-202301
NO PAINT REQ.
main87910-0KC61i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main87910-0KC61i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main87910-0KC61i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87910-0KD02i202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)
main87910-0KD02i202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)&BACK MONITOR-WITH
main87910-0KD02i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
main87910-0KD02i202108-202207
NO PAINT REQ.
main87910-0KD12i202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KD12i202108-202303
NO PAINT REQ.
main87910-0KD12i202108-202207
NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KD12i202108-202301
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KD22i¥23,900202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87910-0KD22i¥23,900202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KD22i¥23,900202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KD22i¥23,900202108-202303
NO PAINT REQ.
main87910-0KD80i202111-202210
NO PAINT REQ.
main87910-0KE11i202111-202210
NO PAINT REQ.
main87910-0KE11i202111-202210
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87910-0KE11i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87910-0KF91i202111-202210
NO PAINT REQ.
main87910-0KF91i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87910-0KF91i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87910-0KG72i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87910-0KG72i202108-202301
NO PAINT REQ.
main87910-0KG72i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87910-0KG92i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
main87910-0KG92i202108-202207
NO PAINT REQ.
main87910-0KJ31i202110-202208
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
main87915-0K390i¥2,080202108-202303
NO PAINT REQ.,BLACK
main87915-0K390i¥2,080202108-202208
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL),BLACK
main87915-0K400i¥2,790202108-202301
PLATED,*CR
main87915-0K400i¥2,790202108-202207
PLATED,CENTRAL AND SOUTH AMERICA SPEC,*CR
main87915-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
main87915-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87915-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA),*CR
main87915-0K440i202111-202210
NO PAINT REQ.,BLACK
main87915-0K450i202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87915-0K450i202111-202210
PLATED,*CR
main87915-0K450i202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
main87915-0K600i202108-202207
PLATED,*CR
main87915-0K630i202109-202303
PLATED,BLACK
87917CSCREW, OUTER MIRROR
87931OUTER MIRROR, RH
main87931-0K750i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
main87931-0K750i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87931-0K750i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
main87931-0KC60i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87931-0KC60i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87931-0KC60i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87931-0KC60i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87931-0KC60i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87931-0KC60i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87931-0KC60i¥2,070202108-202303
main87931-0KD00i202108-202207
main87931-0KF80i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87931-0KF80i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87931-0KF80i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87931-0KF80i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87931-0KF80i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87931-0KF80i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87931-0KJ30i202110-202208
87939COVER, OUTER MIRROR HOLE, RH
main87939-0KM00¥240
main87939-0KN60
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0KA91i202108-202303
NO PAINT REQ.
main87940-0KB01i202108-202301
NO PAINT REQ.
main87940-0KB11i202108-202207
NO PAINT REQ.
main87940-0KB21i202108-202301
NO PAINT REQ.
main87940-0KB21i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main87940-0KB21i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87940-0KB21i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main87940-0KB62i202108-202207
NO PAINT REQ.
main87940-0KB62i202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)
main87940-0KB62i202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)&BACK MONITOR-WITH
main87940-0KB62i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
main87940-0KB72i202108-202301
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KB72i202108-202303
NO PAINT REQ.
main87940-0KB72i202108-202207
NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KB72i202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KB82i¥23,900202108-202207
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KB82i¥23,900202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87940-0KB82i¥23,900202108-202303
NO PAINT REQ.
main87940-0KB82i¥23,900202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KC30i202111-202210
NO PAINT REQ.
main87940-0KC61i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87940-0KC61i202111-202210
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87940-0KC61i202111-202210
NO PAINT REQ.
main87940-0KE41i202108-202207
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main87940-0KE41i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main87940-0KE41i202108-202303
NO PAINT REQ.
main87940-0KE51i202111-202210
NO PAINT REQ.
main87940-0KE51i202111-202210
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87940-0KE51i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
main87940-0KE92i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87940-0KE92i202108-202301
NO PAINT REQ.
main87940-0KE92i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87940-0KE92i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87940-0KE92i202108-202207
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87940-0KF51i202111-202210
NO PAINT REQ.
main87940-0KF51i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87940-0KF51i202111-202210
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87940-0KG42i202108-202301
NO PAINT REQ.
main87940-0KG42i202108-202301
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main87940-0KG42i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
main87940-0KG62i202108-202207
NO PAINT REQ.
main87940-0KG62i202108-202207
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
main87940-0KJ01i202110-202208
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-0K390i¥2,080202108-202303
NO PAINT REQ.,BLACK
main87945-0K390i¥2,080202108-202208
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL),BLACK
main87945-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA),*CR
main87945-0K400i¥2,790202108-202301
PLATED,*CR
main87945-0K400i¥2,790202108-202207
PLATED,CENTRAL AND SOUTH AMERICA SPEC,*CR
main87945-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
main87945-0K400i¥2,790202108-202207
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87945-0K440i202111-202210
NO PAINT REQ.,BLACK
main87945-0K450i202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87945-0K450i202111-202210
PLATED,*CR
main87945-0K450i202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
main87945-0K600i202108-202207
PLATED,*CR
main87945-0K630i202109-202303
PLATED,BLACK
87948COVER, OUTER MIRROR HOLE, LH
main87948-0KM00¥240
main87948-0KN60
87961MIRROR OUTER, LH
main87961-0KB20i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87961-0KB20i¥2,070202108-202303
main87961-0KB20i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87961-0KB20i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87961-0KB20i¥2,070202108-202207
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87961-0KB20i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87961-0KB20i¥2,070202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87961-0KB60i202108-202207
main87961-0KE50i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
main87961-0KE50i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
main87961-0KE50i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main87961-0KF40i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87961-0KF40i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87961-0KF40i202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
main87961-0KF40i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main87961-0KF40i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87961-0KF40i202111-202210
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
main87961-0KJ00i202110-202208
90163T0002
main90163-T0002

14 parts on this diagram · 1 diagram in section

Toyota HILUX (DOUBLE CAB) MIRROR — Parts Diagram | EPC Data
