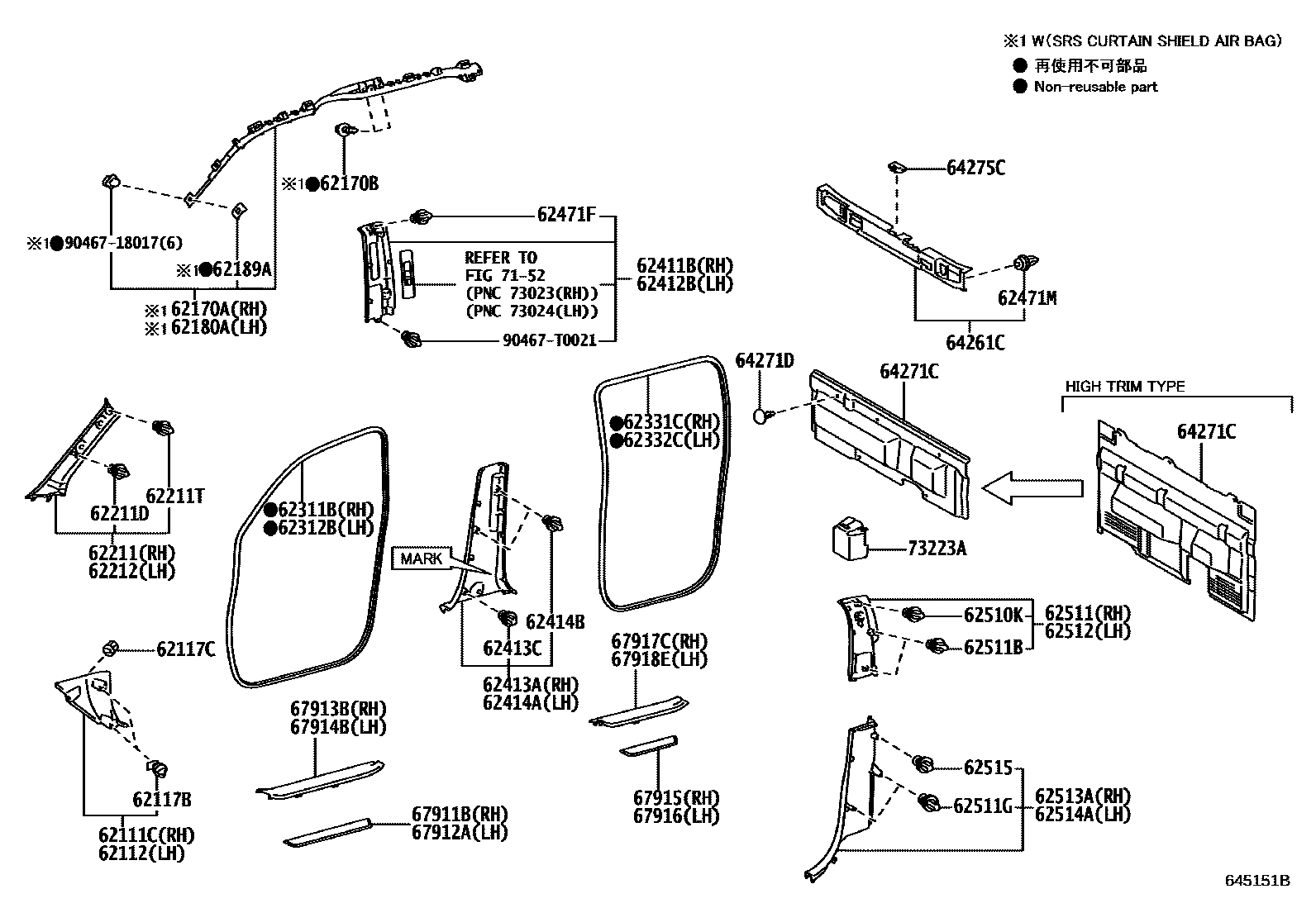

Toyota HILUX (DOUBLE CAB) — INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0K100iGUN135..H;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..THP..6F..(ARL,LA);GUN125..THP..6F..(ARL,LA,VN);GUN122,TGN136..LHD..THP..L..(GEN,LA);GUN125,135..THP..6FC..(AR¥27,900202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main62170-0K100iGUN125..S..IDN;GUN125..6FC..S..GEN;GUN125..RHD..H..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN;GUN135,TGN121..L..(GEN,VN)¥27,900202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62170BBOLT, W/WASHER
main91673-80616iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥60202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main91673-80616iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥60202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0K100iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥27,900202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main62180-0K100iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥27,900202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥80202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main62189-42010iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN¥80202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62211GARNISH, FRONT PILLAR, RH
main62211-0K190-B0iGUN125..S..IDN;GUN125..6FC..S..GEN;GUN126..RHD..6F..S..GEN;GUN135,TGN121..L..(GEN,VN)202108-202208
LT.GRAY,TRIM2#
main62211-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202210
LT.GRAY,TRIM20
main62211-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62211-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
main62211-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62211-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
main62211-0K190-C0iGUN13#..THP..6FC..H;GUN126..LHD..6FC..H..GEN;GUN126..H..(ARL,TWN)..CBU;GUN125,126,135..LHD..6F..H..(GEN,PH)202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
main62211-0K190-C0iGUN13#..THP..6FC..H;GUN126..LHD..6FC..H..GEN;GUN126..H..(ARL,TWN)..CBU;GUN125,126,135..LHD..6F..H..(GEN,PH)202108-202210
BLACK,TRIM21
main62211-0K190-C0iGUN13#..THP..6FC..H;GUN126..LHD..6FC..H..GEN;GUN126..H..(ARL,TWN)..CBU;GUN125,126,135..LHD..6F..H..(GEN,PH)202108-202208
BLACK,TRIM21,23
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2,LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM20
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM20
BLACK,TRIM21,23
BLACK,TRIM23
SRS AIR BAG-WITH(*DRP),BLACK,TRIM21
BLACK,TRIM21
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#,3#
BLACK,TRIM23
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20,22
BLACK,TRIM21
BLACK,TRIM23
BLACK,TRIM21,23
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
SRS AIR BAG-WITH(*DRP)
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2
main90467-10188iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..(GHA,KEN,SA);GUN122,135,LAN125,TGN121,126,136..SA¥80202108-202303
main90467-T0021iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN126..RHD..6FC..S..GEN202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main90467-T0021iGUN125..S..IDN;GUN125..6FC..S..GEN;GUN125..RHD..H..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN;GUN135,TGN121..L..(GEN,VN)202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
62212GARNISH, FRONT PILLAR, LH
main62212-0K190-B0iGUN125..S..IDN;GUN125..6FC..S..GEN;GUN126..RHD..6F..S..GEN;GUN135,TGN121..L..(GEN,VN)202108-202208
LT.GRAY,TRIM2#
main62212-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202210
LT.GRAY,TRIM20
main62212-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62212-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
main62212-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62212-0K190-B0iGUN126..S..ARL;GUN126..H..IV3;GUN135..6F..H..TH;GUN136..6FC..S..ARL;GUN126..THP..6FC..H..LA;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,TH);GUN135..THP..6F..(ARL,L202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
BLACK,TRIM21
BLACK,TRIM21,23
LT.GRAY,TRIM20
sub62212-0K201
LT.GRAY,TRIM2#
sub62212-0K201
LT.GRAY,TRIM2#,3#
sub62212-0K201
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#
sub62212-0K201
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2,LT.GRAY,TRIM2#
sub62212-0K201
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#
sub62212-0K201
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM20
sub62212-0K201
SRS AIR BAG-WITH(*DRP),BLACK,TRIM21
sub62212-0K201
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM23
main62212-KK020-B0iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..(GHA,KEN,SA);GUN122,135,LAN125,TGN121,126,136..SA202109-202303
LT.GRAY,TRIM2#
main62212-KK030-B0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,128,13#..AGTP202109-202301
LT.GRAY,TRIM20
main62212-KK030-B0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,128,13#..AGTP202109-202303
LT.GRAY,TRIM2#
LT.GRAY,TRIM20,22
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM23
BLACK,TRIM21,23
BLACK,TRIM21
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0K110-B0iGUN125..S..IDN;GUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN122..LHD..L..(GEN,PH);GUN126202108-202301
LT.GRAY,TRIM2#
main62411-0K110-B0iGUN125..S..IDN;GUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN122..LHD..L..(GEN,PH);GUN126202108-202301
LT.GRAY,TRIM20
main62411-0K110-B0iGUN125..S..IDN;GUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN122..LHD..L..(GEN,PH);GUN126202108-202207
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#
main62411-0K110-B0iGUN125..S..IDN;GUN126..H..IV3;GUN136..THP..6F;GUN126..THP..6FC..LA;GUN135..RHD..THP..6F;GUN126..S..(ARL,GEN);GUN13#..THP..6FC..(L,S);GUN122..LHD..L..(GEN,PH);GUN126202108-202207
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2,LT.GRAY,TRIM2#
main62411-0K110-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..H..(ARL,GEN,PH,TWN,VN)..CBU202108-202207
LT.GRAY,TRIM20,3#
main62411-0K110-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..H..(ARL,GEN,PH,TWN,VN)..CBU202108-202207
LT.GRAY,TRIM2#,3#
main62411-0K110-C0iGUN13#..THP..6FC..H;GUN126..6F..(GCC,PH);GUN126..H..(ARL,GEN,TWN)..CBU;GUN125,135..6F..H..(GCC,GEN,PH)202108-202210
BLACK,TRIM21
main62411-0K110-C0iGUN13#..THP..6FC..H;GUN126..6F..(GCC,PH);GUN126..H..(ARL,GEN,TWN)..CBU;GUN125,135..6F..H..(GCC,GEN,PH)202108-202208
BLACK,TRIM21,23
BLACK,TRIM23
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#,3#
BLACK,TRIM23
LT.GRAY,TRIM20,22
main62411-KK020-B0iGUN126..GHA,KEN;GUN126,136..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
BLACK,TRIM21
BLACK,TRIM21,23
BLACK,TRIM23
62412BGARNISH, CENTER PILLAR, UPPER LH
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2,LT.GRAY,TRIM2#
main62412-0K110-C0iGUN13#..THP..6FC..H;GUN126..6F..(GCC,PH);GUN126..H..(ARL,GEN,TWN)..CBU;GUN125,135..6F..H..(GCC,GEN,PH)202108-202208
BLACK,TRIM21,23
main62412-0K110-C0iGUN13#..THP..6FC..H;GUN126..6F..(GCC,PH);GUN126..H..(ARL,GEN,TWN)..CBU;GUN125,135..6F..H..(GCC,GEN,PH)202108-202210
BLACK,TRIM21
BLACK,TRIM23
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
BLACK,TRIM23
main62412-KK020-B0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,128,13#..AGTP202109-202303
LT.GRAY,TRIM2#
main62412-KK020-B0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,128,13#..AGTP202109-202301
LT.GRAY,TRIM20
LT.GRAY,TRIM20,22
BLACK,TRIM21
BLACK,TRIM21,23
BLACK,TRIM23
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
62414BCLIP (FOR CENTER LOWER GARNISH)
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471MCLIP
DOOR TRIM-LEATHER(GR SPORT)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&REARHEADREST-WITH(RH/LH/CENTER)
REAR HEADREST-WITH(RH/LH/CENTER)
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC
REAR HEADREST-WITH(RH/LH)
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC&REAR HEADREST-WITH(RH/LH/CENTER)
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER&REAR HEADREST-WITH(RH/LH/CENTER)
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC&REAR HEADREST-WITH(RH/LH/CENTER)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-0K360-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..LHD..H..GEN;GUN126..H..(ARL,PH,TWN,VN)..CBU202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
main62511-0K360-B0iGUN125..S..IDN;TGN126..H..GEN;GUN135..L..(GEN,VN);GUN125,TGN121..(L,S)..GEN;GUN122,126..RHD..(L,S)..GEN202108-202210
LT.GRAY,TRIM20
main62511-0K360-B0iGUN125..S..IDN;TGN126..H..GEN;GUN135..L..(GEN,VN);GUN125,TGN121..(L,S)..GEN;GUN122,126..RHD..(L,S)..GEN202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62511-0K360-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..LHD..H..GEN;GUN126..H..(ARL,PH,TWN,VN)..CBU202108-202209
LT.GRAY,TRIM2#
BLACK,TRIM21,23
BLACK,TRIM21
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM20
LT.GRAY,TRIM20,3#
BLACK,TRIM23
BLACK,TRIM21
SRS AIR BAG-WITH(*DRP),BLACK,TRIM21
BLACK,TRIM21,23
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
LT.GRAY,TRIM20,22
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
BLACK,TRIM21,23
BLACK,TRIM21
BLACK,TRIM23
main62511-KK080-B0iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..(GHA,KEN,SA);GUN122,135,LAN125,TGN121,126,136..SA202109-202303
LT.GRAY,TRIM2#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-0K360-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..LHD..H..GEN;GUN126..H..(ARL,PH,TWN,VN)..CBU202108-202210
LT.GRAY,TRIM20
main62512-0K360-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..LHD..H..GEN;GUN126..H..(ARL,PH,TWN,VN)..CBU202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM20
main62512-0K360-B0iGUN126..6FC..TH;GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN125,126..LHD..H..GEN;GUN126..H..(ARL,PH,TWN,VN)..CBU202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM21
main62512-0K360-C0iGUN13#..THP..6FC..H;GUN126..LHD..6FC..H..GEN;GUN126..H..(ARL,TWN)..CBU;GUN125,126,135..LHD..6F..H..(GEN,PH)202108-202208
BLACK,TRIM21,23
main62512-0K360-C0iGUN13#..THP..6FC..H;GUN126..LHD..6FC..H..GEN;GUN126..H..(ARL,TWN)..CBU;GUN125,126,135..LHD..6F..H..(GEN,PH)202108-202210
BLACK,TRIM21
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM20
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#
BLACK,TRIM21,23
BLACK,TRIM21
SRS AIR BAG-WITH(*DRP),BLACK,TRIM21
BLACK,TRIM23
main62512-KK070-B0iGUN125..H..SA;GUN126..GHA,KEN;GUN126,136..S..SA;GUN125..RHD..6FC..SA202109-202303
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#
LT.GRAY,TRIM20,22
BLACK,TRIM23
BLACK,TRIM21,23
BLACK,TRIM21
main62512-KK080-B0iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..(GHA,KEN,SA);GUN122,135,LAN125,TGN121,126,136..SA202109-202303
LT.GRAY,TRIM2#
62513APANEL, QUARTER TRIM, LOWER RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
62514APANEL, QUARTER TRIM, LOWER LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
62515CLIP, QUARTER INSIDE TRIM
64261CGARNISH, BACK PANEL, UPPER
main64261-0K090-B0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GGN125,GUN125,126,TGN121..H..GCC202108-202301
LT.GRAY,TRIM2#
main64261-0K090-B0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GGN125,GUN125,126,TGN121..H..GCC202108-202207
REAR HEADREST-WITH(RH/LH/CENTER),LT.GRAY,TRIM2#
main64261-0K090-B0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GGN125,GUN125,126,TGN121..H..GCC202108-202207
REAR HEADREST-WITH(RH/LH/CENTER),LT.GRAY,TRIM2#,3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
REAR HEADREST-WITH(RH/LH),LT.GRAY,TRIM2#
REAR HEADREST-WITH(RH/LH),LT.GRAY,TRIM2#
ASSIST GRIP-ROOF:3&REAR HEADREST-WITH(RH/LH),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
main64261-KK050-B0iGUN125,126..(H,S)..GHA;GGN125,GUN122,13#,TGN121..SA;GUN125,126,TGN136..RHD..(KEN,SA);GUN125,TGN136..LHD..(H,L)..(GHA,SA)202109-202303
LT.GRAY,TRIM2#
64271CTRIM, BACK PANEL
REAR HEADREST-WITH(RH/LH/CENTER)
main64271-0K230iGUN122..S..GCC;TGN121..5F..GCC;TGN126..(H,L)..GCC;GUN125,TGN120..MTM..(H,L)..GCC202108-202207
AFRICA SPEC
main64271-0K230iGUN122..S..GCC;TGN121..5F..GCC;TGN126..(H,L)..GCC;GUN125,TGN120..MTM..(H,L)..GCC202108-202207
SYRIA SPEC
main64271-0K230iGUN122..S..GCC;TGN121..5F..GCC;TGN126..(H,L)..GCC;GUN125,TGN120..MTM..(H,L)..GCC202108-202207
REAR HEADREST-WITH(RH/LH)
SUDAN SPEC
main64271-0K300iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L¥7,100202108-202207
IRAN SPEC&REAR HEADREST-WITH(RH/LH/CENTER)
main64271-0K300iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L¥7,100202108-202207
REAR HEADREST-WITH(RH/LH/CENTER)
main64271-0K300iTGN121..5F..S;TGN121..6FC..H;GUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GUN125..6F..(H,L)..GCC¥7,100202108-202207
EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER)
main64271-0K300iTGN121..5F..S;TGN121..6FC..H;GUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GUN125..6F..(H,L)..GCC¥7,100202108-202207
SUDAN SPEC&REAR HEADREST-WITH(RH/LH/CENTER)
64271DCLIP(FOR BACK PANEL TRIM)
BLACK
64275CCOVER, BACK PANEL TRIM
main64275-0K030-B0iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L202108-202207
REAR HEADREST-WITH(RH/LH/CENTER),LT.GRAY,TRIM2#,3#
main64275-0K030-B0iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L202108-202303
LT.GRAY,TRIM2#
main64275-0K030-B0iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L202108-202301
REAR HEADREST-WITH(RH/LH/CENTER),LT.GRAY,TRIM2#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
7152
73223ACOVER, SEAT BELT RETRACTOR
REAR HEADREST-WITH(RH/LH/CENTER)
9046718017
90467T0021
main90467-T0021
48 parts on this diagram · 1 diagram in section
