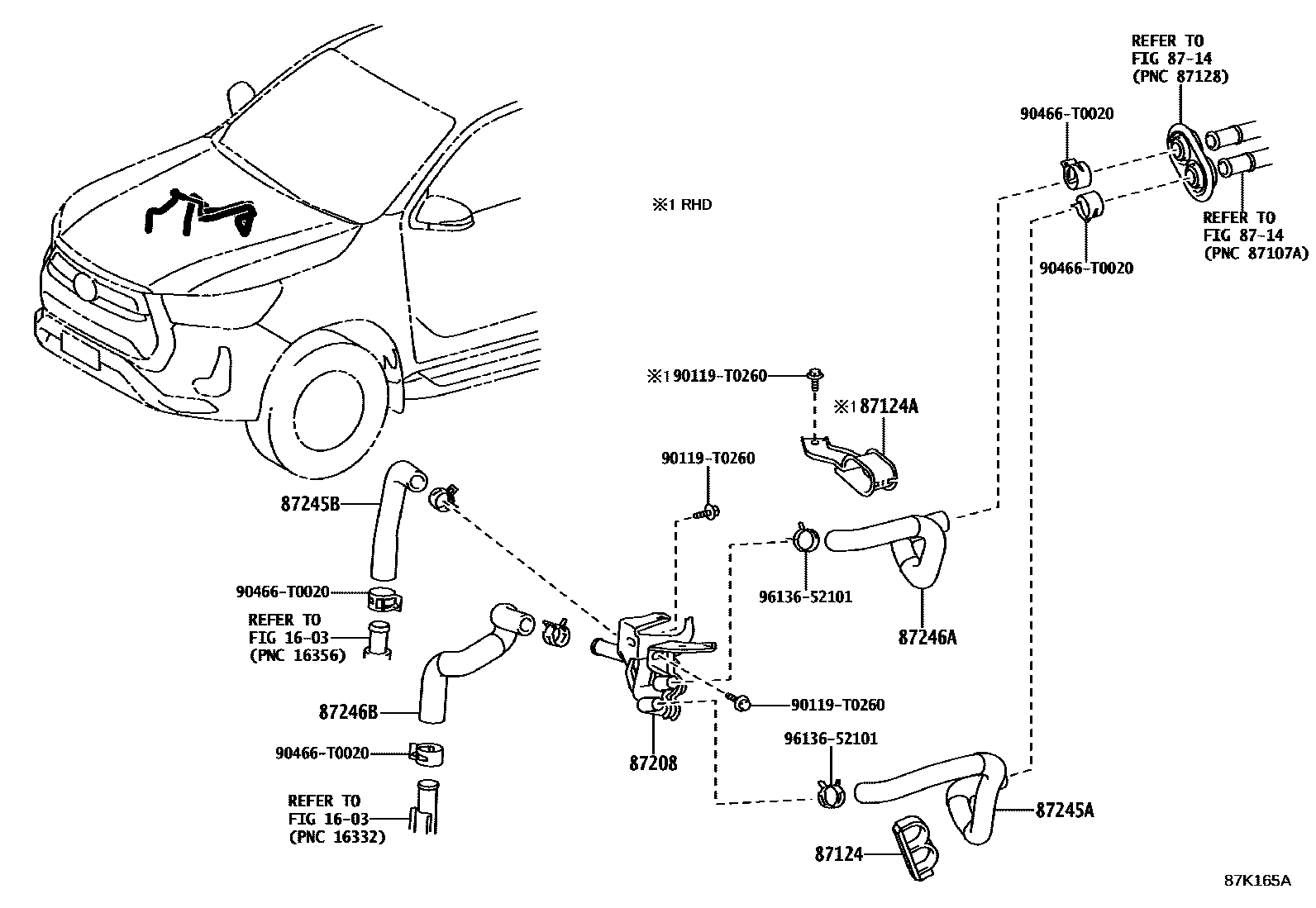

Toyota HILUX (DOUBLE CAB) — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

87124CLAMP, HEATER

main87124-0K070iGGN125..SA202108-202301

main87124-0K070iGGN125..GCC202108-202207

main87124-0K130iGGN125..AGTP202111-202210

main87124-0K150iGUN125,135..(L,S)..TH¥490202108-202207

FRONT AIR CONDITIONER-AUTO

main87124-0K150iGUN135..6F..S..PH¥490202108-202207

FRONT AIR CONDITIONER-MANUAL

main87124-0K150iGUN122,125,126,13#..GHA,KEN,MMR,SA¥490202108-202303

main87124-0K170iGUN125,126..H..MA202110-202208

main87124-0K300iGUN126..IND202203-202209

main87124-42030iLAN125202109-202301

main88718-6B070iGUN125,126,13#..AGTP202111-202210

87124ACLAMP, HEATER

main87124-0K060iLAN125202109-202301

main87124-0K210iGGN125..SA202109-202301

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K240iTGN136..RHD202108-202301

main87208-0K240iTGN121..ARL202108-202207

main87208-0K280iTGN120,121,126,136..LHD..THP202108-202207

main87208-0K280iTGN121,126,136..LHD..SA202108-202301

main87208-0K300iTGN126,128,13#..AGTP202111-202210

main87208-0K320iGGN125..GCC202108-202207

main87208-0K320iGGN125..SA202108-202301

main87208-0K340iGGN125..AGTP202111-202210

87245AHOSE, HEATER WATER, INLET A

main87245-0KB20iTGN121,126,136..LHD..SA202108-202301

main87245-0KB20iTGN120,121,126,136..LHD..THP202108-202207

main87245-0KB40iTGN136..RHD202108-202301

main87245-0KB40iTGN121..ARL202108-202207

main87245-0KB82iGUN125,126..H..MA202110-202208

main87245-0KC20iTGN126,128,13#..AGTP202111-202210

main87245-0KD10iGUN126..TWN;GUN135..L..GEN¥1,470202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main87245-0KE02iGUN125..LHD..GEN;GUN125..6FC..L..GEN¥710202108-202207

FRONT AIR CONDITIONER-MANUAL

main87245-0KE02iGUN125..LHD..GEN;GUN125..6FC..L..GEN¥710202108-202207

FRONT AIR CONDITIONER-AUTO

main87245-0KE02iGUN125,135..(L,S)..TH¥710202108-202207

ASIA COLD COUNTRY SPEC

main87245-0KE02iGUN122,125,126,13#..GHA,KEN,MMR,SA¥710202108-202303

main87245-0KG60iGGN125..GCC202108-202207

main87245-0KJ00iGGN125..AGTP202111-202210

main87245-0KJ30iGGN125..SA202109-202301

main87245-0KK30iLAN125202109-202301

main87245-0KL31iGUN126..IND202203-202209

main87245-71010iGUN125,126,13#..AGTP202111-202210

87245BHOSE, HEATER WATER, INLET B

main87245-0K480iGGN125..AGTP202111-202210

main87245-0K590iGGN125..GCC¥510202108-202207

main87245-0K590iGGN125..SA¥510202108-202301

main87245-0KF30iTGN121,126,136..SA202108-202301

main87245-0KF30iTGN120,121,126,136..THP202108-202207

main87245-0KG10iTGN126,128,13#..AGTP202111-202210

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K850iTGN121..ARL202108-202207

main87245-0K850iTGN136..RHD202108-202301

main87245-0KB30iTGN120,121,126,136..LHD..THP202108-202207

main87245-0KB30iTGN121,126,136..LHD..SA202108-202301

main87245-0KB91iGUN125,126..H..MA202110-202208

main87245-0KC30iTGN126,128,13#..AGTP202111-202210

main87245-0KE11iGUN125..LHD..GEN;GUN125..6FC..L..GEN¥710202108-202207

FRONT AIR CONDITIONER-MANUAL

main87245-0KE11iGUN135..H;GUN125..H..IDN;GUN135..THP..6F..(ARL,LA,VN);GUN126..THP..(ARL,GCC,GEN,LA,PH,TH,VN);GUN135..THP..6FC..(L,S)..(ARL,LA,PH,VN);GUN122,125,136..THP..(ARL,GCC,G¥710202108-202207

ASIA COLD COUNTRY SPEC

main87245-0KE11iGUN135..H;GUN125..H..IDN;GUN135..THP..6F..(ARL,LA,VN);GUN126..THP..(ARL,GCC,GEN,LA,PH,TH,VN);GUN135..THP..6FC..(L,S)..(ARL,LA,PH,VN);GUN122,125,136..THP..(ARL,GCC,G¥710202108-202207

FRONT AIR CONDITIONER-AUTO

main87245-0KE11iGUN122,125,126,13#..GHA,KEN,MMR,SA¥710202108-202303

main87245-0KE51iGUN126..IND202203-202209

main87245-0KF00iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN¥1,190202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main87245-0KG70iGGN125..GCC202108-202207

main87245-0KJ10iGGN125..AGTP202111-202210

main87245-0KJ40iGGN125..SA202109-202301

main87245-0KK40iLAN125202109-202301

main87245-71020iGUN125,126,13#..AGTP202111-202210

87246BHOSE, HEATER WATER, OUTLET B

main87245-0K490iGGN125..AGTP202111-202210

main87245-0K600iGGN125..GCC¥750202108-202207

main87245-0K600iGGN125..SA¥750202108-202301

main87245-0KF20iTGN120,121,126,136..THP202108-202207

main87245-0KF20iTGN121,126,136..SA202108-202301

main87245-0KG00iTGN126,128,13#..AGTP202111-202210

90119T0260

main90119-T0260

90466T0020

main90466-T0020

9613652101

main96136-52101¥180

12 parts on this diagram · 6 diagrams in section
