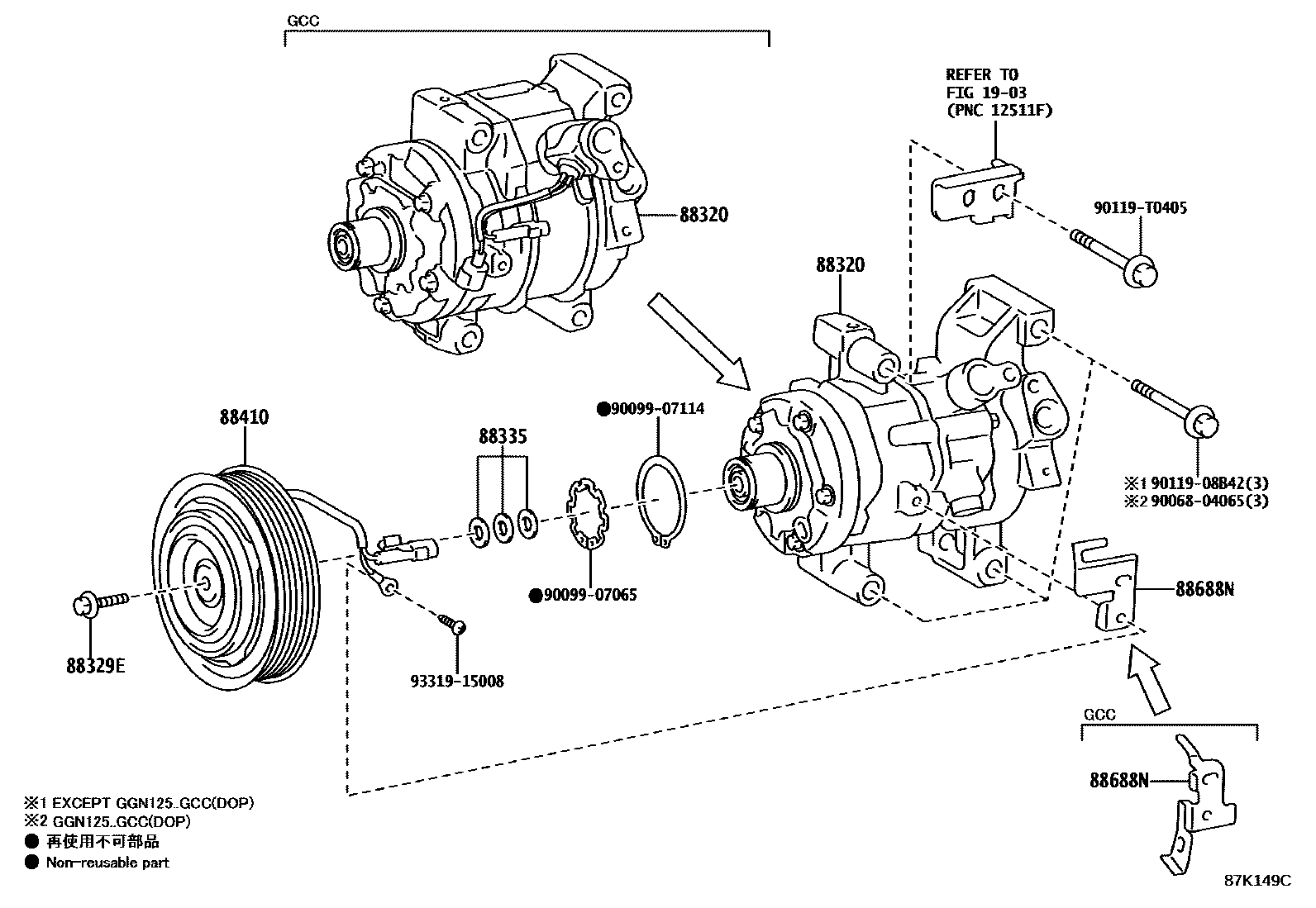

Toyota HILUX (DOUBLE CAB) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1903

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN125,126..MA¥52,900202108-202301

main88320-0K530iGUN122,125,126..GCC202108-202207

main88320-0K550iTGN120,121,126..GCC202108-202207

main88320-0K590iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main88320-0K760iGGN125..GCC202108-202207

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

88335GASKET KIT, OVERHAUL

main88335-14020iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121,126,136..SA202108-202301

main88410-0K600iGUN125,126..MA¥23,800202108-202210

main88410-0K621iGGN125..AGTP202111-202210

main88410-0K631iGGN125..GCC202108-202207

main88410-0K690iTGN120,121,126..GCC202108-202207

main88410-0K760iGUN125,126,13#..AGTP202111-202210

main88410-0K770iTGN126,128,13#..AGTP202111-202210

88688NBRACKET, COOLER

main88688-0K280iTGN121,126,136..SA¥0202108-202301

main88849-0K010iGUN125,126..MA¥250202108-202210

NO.1

main88849-0K010iGGN125..AGTP¥250202111-202210

main88849-0K020iGUN125,126..MA¥200202108-202210

NO.2

main88849-0K030iGUN122,125,126..GCC202108-202207

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL),NO.1

main88849-0K030iGGN125..GCC202108-202207

NO.1

9006804065

main90068-04065

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908B42

main90119-08B42¥0

90119T0405

main90119-T0405

9331915008

main93319-15008¥170

12 parts on this diagram · 7 diagrams in section
