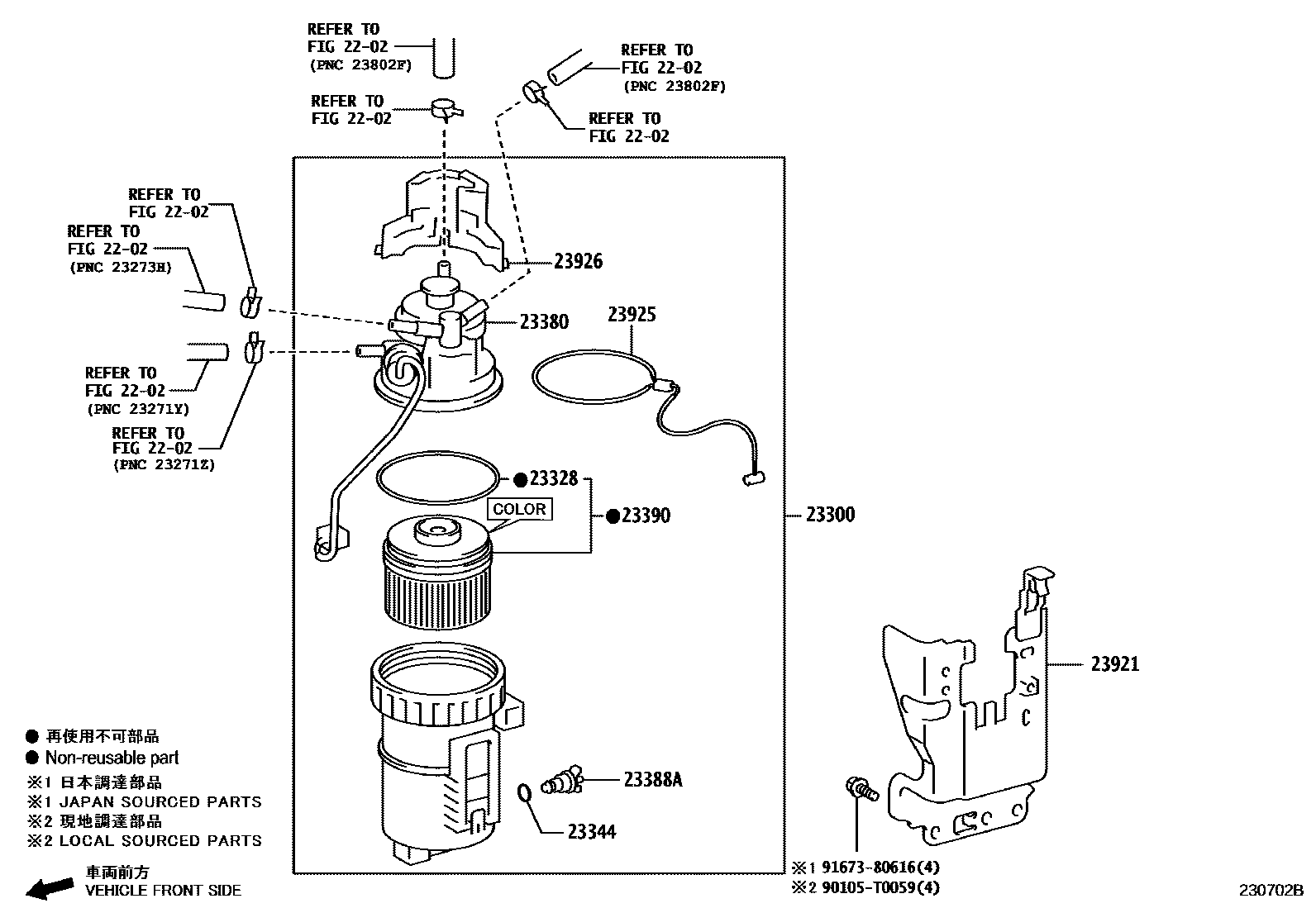

Toyota HILUX (DOUBLE CAB) — FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER 0005 1

2202

23300FILTER ASSY, FUEL

main23300-0L101i1GDFTV,2GDFTV..GUN12#,13#..ARL,TH202108-202207

ASIA COLD COUNTRY SPEC

main23300-0L101i1GDFTV,2GDFTV..GUN122,125,126,13#..SA202108-202301

main23300-0L101i1GDFTV,2GDFTV..GUN12#,13#..ARL,TH202108-202207

ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main23300-0L111i5LE..LAN125202108-202111

sub23300-0L112¥12,500

main23300-0L112i1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6FC..S;1GDFTV..GUN126..AGTP..6F..S..LA;1GDFTV,2GDFTV..GUN125,13#..AGTP..LA¥12,500202111-202210

BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER2.5

main23300-0L112i1GDFTV..GUN126..6FC..H..BZAG¥12,500202111-202210

BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5

main23300-0L112i1GDFTV,2GDFTV..GUN122,125,126,13#..THP..(GCC,GEN,IDN,LA,PH,TWN,VN)¥12,500202111-202303

23328GASKET(FOR FUEL FILTER)

main23344-0L070i1GDFTV..GUN126..IND¥270202108-202303

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1GDFTV..GUN126..PKN¥340202108-202303

23380CAP ASSY, FUEL FILTER

main23380-0L091i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..L..GEN¥4,560202108-202207

ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main23380-0L091i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN125,13#..BZAG¥4,560202108-202301

main23380-0L091i2GDFTV..GUN125..LHD..(H,S)..GEN¥4,560202108-202207

ASIA COLD COUNTRY SPEC

main23380-0L111i1GDFTV,2GDFTV..GUN125,126..GHA,KEN,MMR202108-202303

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1GDFTV..GUN126..IND¥390202108-202303

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..L..GEN¥5,700202108-202207

ASIA COLD COUNTRY SPEC

main23390-0L070i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..L..GEN¥5,700202108-202207

ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main23390-0L070i5LE..LAN125¥5,700202108-202301

main23390-0L070i1GDFTV,2GDFTV..GUN122,125,126,13#..GCC,GEN,IDN,LA,MA,MMR,PH,TWN,VN¥5,700202108-202111

COLOR = YELLOW

main23390-0L100i1GDFTV..GUN126..6FC..H..BZAG¥5,700202111-202303

COLOR = PURPLE

main23390-0L100i1GDFTV..GUN126..6FC..H..BZAG¥5,700202111-202210

BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,COLOR = PURPLE

main23390-0L100i1GDFTV..GUN126..6FC..H..BZAG¥5,700202111-202210

BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER2.5,COLOR = PURPLE

23921SUPPORT, FUEL FILTER

main23921-0L130i1GDFTV..GUN126..PKN202108-202303

main23921-0L210i1GDFTV..GUN126..IND¥2,590202108-202209

main23921-0L210i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN¥2,590202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i1GDFTV..GUN126..IND¥280202108-202303

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i1GDFTV,2GDFTV..GUN12#,13#..THP¥1,680202108-202303

90105T0059

main90105-T0059

9167380616

main91673-80616¥60

12 parts on this diagram · 3 diagrams in section
