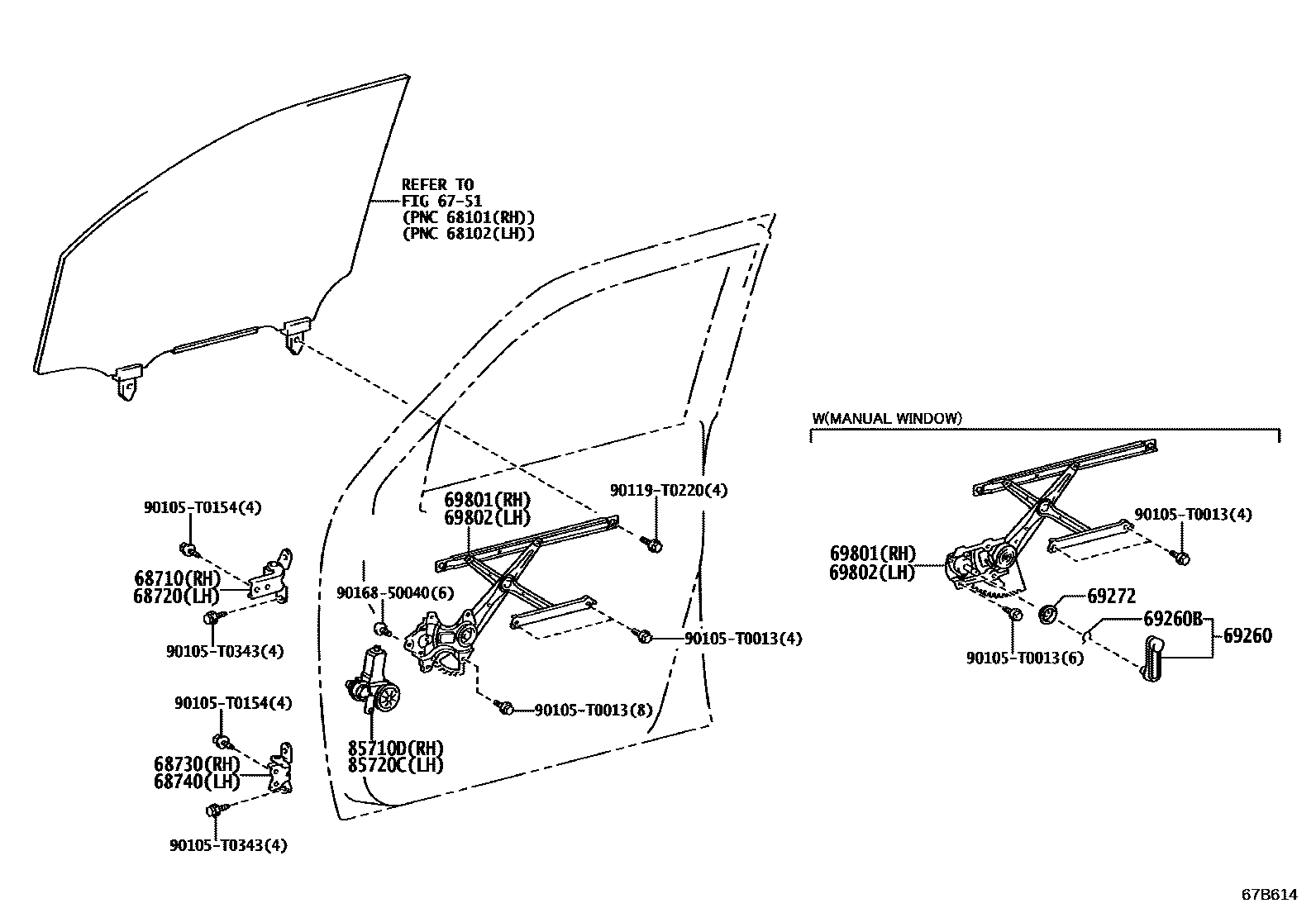

Toyota HILUX (DOUBLE CAB) — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68710-0D050iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥2,030202108-202210

main68710-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68710-12151iGUN126..PKN¥2,050202202-202301

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68720-0D050iGUN126..MMR¥2,030202108-202210

main68720-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main68720-12151iGUN126..PKN¥2,050202202-202301

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68730-02100iGUN125,126..MA202108-202301

main68730-0K050iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main68740-02100iGUN126..MMR,PKN202108-202301

main68740-0K050iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K010-C0iGUN122,125,TGN120,121,126..L..GCC202108-202301

BLACK,TRIM2#

main69260-0K010-C0iGUN135,TGN126,136..THP..L..LA;GUN122,125,126..THP..MTM..L..(GEN,IDN,LA,PH)202108-202207

BLACK,TRIM2#,3#

main69260-0K040iGUN125..L..GHA;GUN126,13#..S..SA;GUN125..RHD..6F..S202212-202303

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69260-0K040-C0iGUN122,125,135,LAN125,TGN121,126..L..(KEN,SA)202109-202212

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#

main69260-0K040-C0iGUN125..L..GHA;GUN126,13#..S..SA;GUN125..RHD..6F..S..SA202109-202212

BLACK,TRIM2#

main69260-0K060-C0iGUN125,135,TGN126,136..AGTP..L..LA202111-202210

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52152iGUN122,125,135,LAN125,TGN121,126..L..(KEN,SA)202109-202303

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main90080-52152iGUN125,135,TGN126,136..AGTP..L..LA202109-202210

main90520-01274iGUN126..L..PKN¥160202108-202301

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022iGUN125,135,TGN126,136..AGTP..L..LA¥100202109-202210

main69268-02022iGUN122,125,135,LAN125,TGN121,126..L..(KEN,SA)¥100202109-202303

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69268-04020iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D351iGUN126..(H,S)..(MMR,PKN)202108-202301

main69801-0D351iGUN126..6FC..L;GUN122,135..L..(TH,VN);GGN125,GUN120,121,136..THP..(GCC,LA,TH);GUN122,125,126,135,TGN121,126..THP..(H,S)..(GCC,IDN,LA,PH,TH,TWN,VN)202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0K140iGUN122,125..RHD..MTM..L..GEN¥4,250202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main69801-0K140iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN¥4,250202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0K140iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN¥4,250202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main69801-0K150iTGN136..SA;GUN125..L..GHA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..(GHA,KEN,SA)202109-202303

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69801-0K160iGUN135..AGTP..S;GUN135..L..BZAG;GUN125,TGN136..BZAG;GGN125,GUN126,136,TGN128,138..AGTP;GUN125,TGN126,136..AGTP..(H,S)..LA202111-202210

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69801-0K180iGUN126..IND202203-202209

main69810-0K240iGUN126..L..PKN202108-202301

main69810-0K270iGUN125..L..GHA;GUN126,136..S..SA202109-202303

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69810-0K310iGUN125,135,TGN126,136..AGTP..L..LA202111-202210

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D331iGUN126..6FC..L;GUN122,135..L..(TH,VN);GGN125,GUN120,121,136..THP..(GCC,LA,TH);GUN122,125,126,135,TGN121,126..THP..(H,S)..(GCC,IDN,LA,PH,TH,TWN,VN)202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0D331iGUN125,126..MA202108-202301

main69802-0K140iGUN122,125..RHD..MTM..L..GEN¥4,250202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main69802-0K140iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN¥4,250202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0K140iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN¥4,250202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main69802-0K150iTGN136..SA;GUN125..L..GHA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..(GHA,KEN,SA)202109-202303

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main69802-0K160iGUN125,135,TGN126,136..AGTP..L..LA202111-202210

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69802-0K180iGUN126..IND202203-202209

main69820-0K260iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301

main69820-0K290iGUN122,125,135,LAN125,TGN121,126..L..(KEN,SA)202109-202303

POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT

main69820-0K320iGUN125,135,TGN126,136..AGTP..L..LA202111-202210

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D570iGUN135..L..VN;GUN126..6FC..L;TGN126..H..GCC;GUN126..THP..(H,S)..(GCC,LA);GUN135,TGN126..THP..S..(GCC,LA,PH,VN);GUN122,125,136,TGN121..THP..(H,S)..(GCC,LA,VN)202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0D570iGUN125..L..MA;GUN125..6FC..S..MA202108-202208

main85710-0K180iGUN135..L..GEN;GUN125..6FC..L..GEN;TGN121,126,136..GEN;GUN122,125,126..LHD..S..GEN¥15,900202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0K180iGUN135..L..GEN;GUN125..6FC..L..GEN;TGN121,126,136..GEN;GUN122,125,126..LHD..S..GEN¥15,900202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main85710-0K180iGUN122,125..LHD..L..GEN¥15,900202108-202207

WIRELESS DOOR LOCK-WITH

main85710-0K180iGUN125..L..GHA;TGN136..LHD..SA;GUN125,126,LAN125,TGN126..LHD..(H,S)..(GHA,SA)¥15,900202108-202303

main85710-0K190iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA)¥20,900202108-202303

main85710-0K190iGUN125,13#,TGN121..ARL;GUN125,126,135..LHD..H..GEN;GUN125,126..RHD..(H,S)..(ARL,GEN)¥20,900202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main85710-0K200iGUN125,126..H..MA;GUN125..6F..S..MA202108-202301

main85710-0K200iGUN126..PH,TH,TWN,VN;GUN125..(H,S)..(IDN,TH);GUN135,TGN126..THP..H..(LA,PH);GGN125,GUN120,121,122,135..(6F,6FC)..(GCC,TH)202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main85710-0K200iGUN126..PH,TH,TWN,VN;GUN125..(H,S)..(IDN,TH);GUN135,TGN126..THP..H..(LA,PH);GGN125,GUN120,121,122,135..(6F,6FC)..(GCC,TH)202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main85710-0K280iGUN136..6FC..LA;GUN126,136..H..BZAG;GGN125,TGN126,128,138..AGTP..H202111-202210

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main85710-0K290iGUN126,136..H..BZAG202111-202210

WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85710-0K290iGUN125,135,TGN126,136..AGTP..L..LA202111-202210

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85710-0K310iGUN126..IND202203-202209

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D570iGUN135..L..VN202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main85720-0D570iGUN122..L..TH;GUN126..6FC..L;GUN135..(L,S)..TH;GUN120,121,125..6FC..(IDN,TH);GUN122,125,TGN121,126..S..(GCC,IDN,TH)202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0D570iGUN126..S..PKN202108-202301

main85720-0K170iGUN126..6F..L..LA202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0K170iGUN126..H..(MMR,PKN)202108-202301

main85720-0K180iGUN122,125..RHD..MTM..L..GEN¥15,900202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)

main85720-0K180iGUN125..6F..ARL;GUN125..RHD..6F..S..GEN;GUN126,13#..RHD..(L,S)..(ARL,GEN);GUN125,TGN121,136..(5F,6FC)..(ARL,GEN)¥15,900202108-202207

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0K180iGUN125..6F..ARL;GUN125..RHD..6F..S..GEN;GUN126,13#..RHD..(L,S)..(ARL,GEN);GUN125,TGN121,136..(5F,6FC)..(ARL,GEN)¥15,900202108-202207

WIRELESS DOOR LOCK-WITH

main85720-0K180iGUN125..6F..ARL;GUN125..RHD..6F..S..GEN;GUN126,13#..RHD..(L,S)..(ARL,GEN);GUN125,TGN121,136..(5F,6FC)..(ARL,GEN)¥15,900202108-202207

POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)

main85720-0K180iGUN125..L..GHA;GUN126..RHD..SA;GUN136..6F..S..SA;GUN125..S..(GHA,SA);GUN136,TGN136..(5F,6FC)..SA;GGN125,GUN135,LAN125,TGN126..(H,S)..SA¥15,900202108-202303

main85720-0K190iGUN125..6FC..S..GEN¥20,900202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main85720-0K190iGUN126..GHA,KEN;GUN136..6F..H..SA;GUN125,126..LHD..H..SA¥20,900202108-202303

main85720-0K280iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP..(H,S)202111-202210

main85720-0K290iGUN125,126,135,TGN136..L..BZAG202111-202210

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main85720-0K310iGUN126..IND202203-202209

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040¥70

17 parts on this diagram · 1 diagram in section
