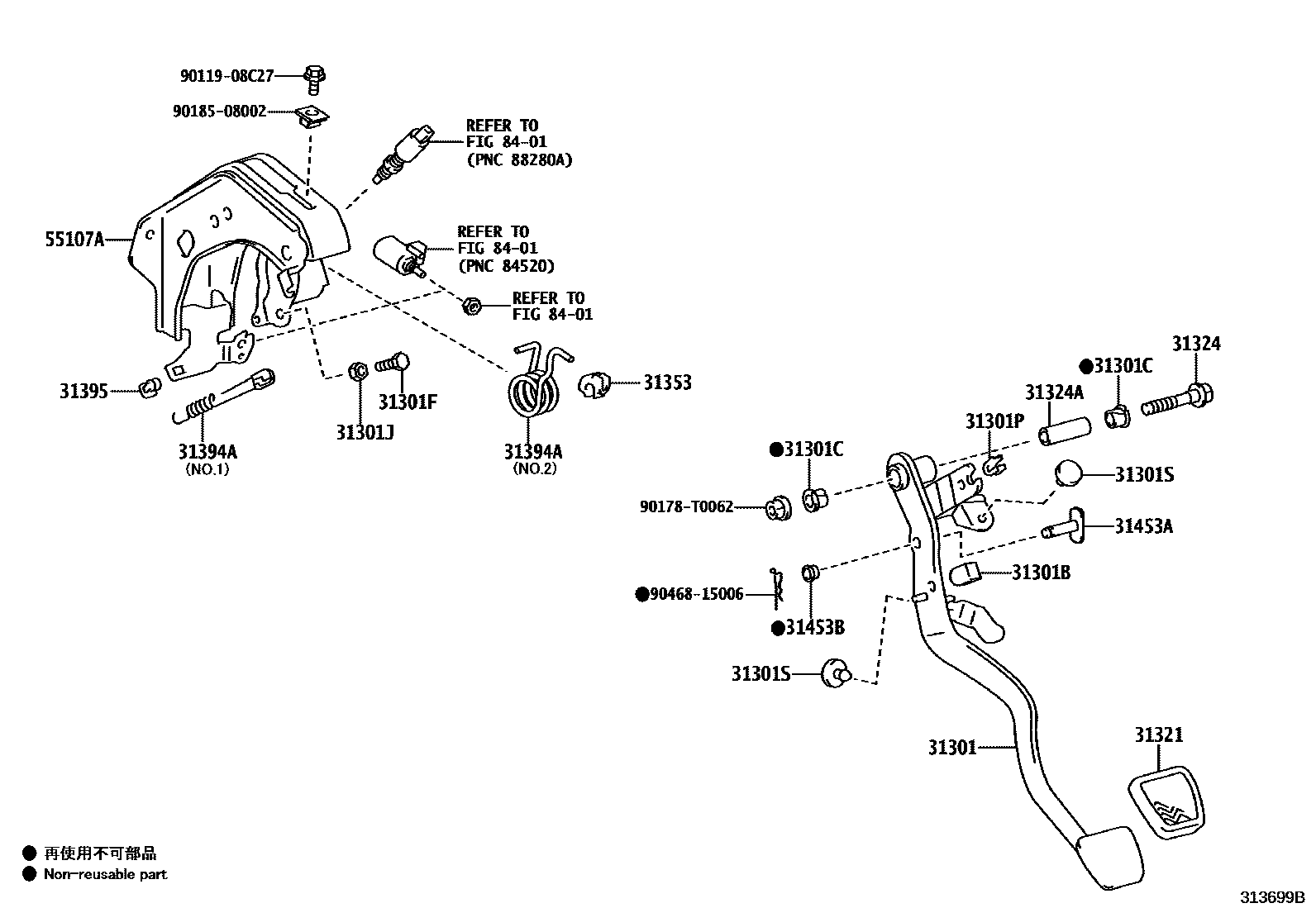

Toyota HILUX (DOUBLE CAB) — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PEDAL 0003 1CLUTCH PEDAL 0004 1CLUTCH PEDAL 0005 1CLUTCH PEDAL 0006 1CLUTCH PIPING 0007 1CLUTCH PIPING 0008 1CLUTCH PIPING 0009 1CLUTCH PIPING 0010 1CLUTCH PIPING

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K280iLAN125202109-202301

main31301-KK020iTGN121..5F..ARL202108-202207

main31301-KK020iTGN136..RHD202108-202301

main31301-KK040iGUN122,125,126,13#..RHD..THP..MTM202108-202207

main31301-KK040iGUN126..6F..PKN202108-202301

main31301-KK040iGUN126..6F..IND202108-202209

main31301-KK040iGUN125,126,13#..RHD..6F..(KEN,SA)202108-202303

main31301-KK040iGUN125..6F..MA202108-202208

main31301-KK080iGUN122,125,126,13#..LHD..THP..MTM202108-202207

main31301-KK080iGUN125,126,13#..AGTP..6F202108-202210

main31301-KK080iGUN122,125,135..LHD..MTM..(GHA,SA)202108-202303

main31301-KK100iTGN126,136..AGTP202108-202210

main31301-KK100iTGN120,121,126,136..LHD..THP..5F202108-202207

main31301-KK100iTGN121,126,136..LHD..5F..SA202108-202301

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-T0004iGUN122,125,126,13#,TGN121..RHD..THP..MTM202108-202207

main90541-T0004iGUN126..6F..IND202108-202209

main90541-T0004iGUN125..6F..MA202108-202208

main90541-T0004iGUN125,126,13#,TGN136..RHD..MTM..(KEN,SA)202108-202303

main90541-T0004iGUN126..6F..PKN202108-202301

main90541-T0005iGUN125,126,13#,TGN126,136..AGTP..MTM¥100202108-202210

main90541-T0005iGUN122,125,126,13#,TGN120,121,126,136..LHD..THP..MTM¥100202108-202207

main90541-T0005iGUN122,125,135,LAN125,TGN121,126,136..LHD..MTM..(GHA,SA)¥100202108-202303

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM¥120202108-202207

main90386-13015iGUN125..6F..MA¥120202108-202208

main90386-13015iGUN126..6F..IND¥120202108-202209

main90386-13015iGUN125,126,13#,TGN126,136..AGTP..MTM¥120202108-202210

main90386-13015iGUN126..6F..PKN¥120202108-202301

main90386-13015iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)¥120202108-202303

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-T0005iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM202108-202207

main90101-T0005iGUN125..6F..MA202108-202208

main90101-T0005iGUN126..6F..IND202108-202209

main90101-T0005iGUN125,126,13#,TGN126,136..AGTP..MTM202108-202210

main90101-T0005iGUN126..6F..PKN202108-202301

main90101-T0005iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)202108-202303

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0005iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM202108-202207

main90170-T0005iGUN125..6F..MA202108-202208

main90170-T0005iGUN126..6F..IND202108-202209

main90170-T0005iGUN125,126,13#,TGN126,136..AGTP..MTM202108-202210

main90170-T0005iGUN126..6F..PKN202108-202301

main90170-T0005iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)202108-202303

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGUN125,126,13#..AGTP..6F¥100202108-202210

main90389-06055iGUN122,125,126,13#..THP..MTM¥100202108-202207

main90389-06055iGUN125..6F..MA¥100202108-202208

main90389-06055iGUN126..6F..IND¥100202108-202209

main90389-06055iGUN126..6F..PKN¥100202108-202301

main90389-06055iGUN122,125,126,13#..MTM..(GHA,KEN,SA)¥100202108-202303

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iGUN125..6F..MA¥110202108-202208

main90541-06036iGUN126..6F..IND¥110202108-202209

main90541-06036iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM¥110202108-202207

main90541-06036iGUN125,126,13#,TGN126,136..AGTP..MTM¥110202108-202210

main90541-06036iGUN126..6F..PKN¥110202108-202301

main90541-06036iLAN125¥110202109-202301

main90541-06036iGUN122,125,126,13#,TGN121,126,136..MTM..(GHA,KEN,SA)¥110202108-202303

31321PAD, CLUTCH PEDAL

main31321-02020iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM202108-202207

main31321-02020iGUN125..6F..MA202108-202208

main31321-02020iGUN126..6F..IND202108-202209

main31321-02020iGUN125,126,13#,TGN126,136..AGTP..MTM202108-202210

main31321-02020iGUN126..6F..PKN202108-202301

main31321-02020iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)202108-202303

31324SHAFT, CLUTCH PEDAL

main90105-T0112iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM202108-202207

main90105-T0112iGUN125..6F..MA202108-202208

main90105-T0112iGUN126..6F..IND202108-202209

main90105-T0112iGUN125,126,13#,TGN126,136..AGTP..MTM202108-202210

main90105-T0112iGUN126..6F..PKN202108-202301

main90105-T0112iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)202108-202303

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGUN126..6F..IND¥370202108-202209

main90387-10003iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM¥370202108-202207

main90387-10003iGUN125..6F..MA¥370202108-202208

main90387-10003iGUN125,126,13#,TGN126,136..AGTP..MTM¥370202108-202210

main90387-10003iGUN126..6F..PKN¥370202108-202301

main90387-10003iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)¥370202108-202303

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGUN122,125,126,13#..MTM..(GHA,KEN,SA)¥210202108-202303

main31353-26010iGUN125..6F..MA¥210202108-202208

main31353-26010iGUN126..6F..PKN¥210202108-202301

main31353-26010iGUN126..6F..IND¥210202108-202209

main31353-26010iGUN122,125,126,13#..THP..MTM¥210202108-202207

main31353-26010iGUN125,126,13#..AGTP..6F¥210202108-202210

31394ASPRING, PEDAL W/HOOK

main31394-25010iGUN122,125,126,13#..THP..MTM202108-202207

NO.1:REFER ILLUST.

main31394-25010iGUN126..6F..PKN202108-202301

NO.1:REFER ILLUST.

main31394-25010iGUN122,125,126,13#..MTM..(GHA,KEN,SA)202108-202303

NO.1:REFER ILLUST.

main31394-25010iGUN125,126,13#..AGTP..6F202108-202210

NO.1:REFER ILLUST.

main31394-25010iGUN125..6F..MA202108-202208

NO.1:REFER ILLUST.

main31394-25010iGUN126..6F..IND202108-202209

NO.1:REFER ILLUST.

main31394-KK010iGUN122,125,126,13#..MTM..(GHA,KEN,SA)202108-202303

NO.2:REFER ILLUST.

main31394-KK010iGUN122,125,126,13#..THP..MTM202108-202207

NO.2:REFER ILLUST.

main31394-KK010iGUN125..6F..MA202108-202208

NO.2:REFER ILLUST.

main31394-KK010iGUN126..6F..IND202108-202209

NO.2:REFER ILLUST.

main31394-KK010iGUN125,126,13#..AGTP..6F202108-202210

NO.2:REFER ILLUST.

main31394-KK010iGUN126..6F..PKN202108-202301

NO.2:REFER ILLUST.

31395HOOK, PEDAL SPRING

main31395-33020iGUN126..6F..PKN¥90202108-202301

main31395-33020iGUN122,125,126,13#..THP..MTM¥90202108-202207

main31395-33020iGUN125..6F..MA¥90202108-202208

main31395-33020iGUN126..6F..IND¥90202108-202209

main31395-33020iGUN125,126,13#..AGTP..6F¥90202108-202210

main31395-33020iGUN122,125,126,13#..MTM..(GHA,KEN,SA)¥90202108-202303

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iGUN125..6F..MA¥140202108-202208

L=31.9

main90240-T0002iGUN126..6F..IND¥140202108-202209

L=31.9

main90240-T0002iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM¥140202108-202207

L=31.9

main90240-T0002iGUN125,126,13#,TGN126,136..AGTP..MTM¥140202108-202210

L=31.9

main90240-T0002iGUN126..6F..PKN¥140202108-202301

L=31.9

main90240-T0002iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)¥140202108-202303

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGUN126..6F..PKN¥240202108-202301

main90386-08002iGUN122,125,126,13#,TGN120,121,126,136..THP..MTM¥240202108-202207

main90386-08002iGUN125..6F..MA¥240202108-202208

main90386-08002iGUN126..6F..IND¥240202108-202209

main90386-08002iGUN122,125,126,13#,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)¥240202108-202303

main90386-08002iGUN125,126,13#,TGN126,136..AGTP..MTM¥240202108-202210

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-KK020iTGN120,121,126,136..THP..5F202108-202207

main55107-KK020iTGN126,136..AGTP202108-202210

main55107-KK020iLAN125,TGN121,126,136..5F..SA202108-202301

main55107-KK030iGUN126..6F..IND202108-202209

main55107-KK030iGUN122,125,126,13#..MTM..(GHA,KEN,SA)202108-202303

main55107-KK030iGUN125,126,13#..AGTP..6F202108-202210

main55107-KK030iGUN126..6F..PKN202108-202301

main55107-KK030iGUN122,125,126,13#..THP..MTM202108-202207

main55107-KK030iGUN125..6F..MA202108-202208

8401

9011908C27

main90119-08C27¥90

90178T0062

main90178-T0062

9018508002

main90185-08002¥200

9046815006

main90468-15006¥80

21 parts on this diagram · 10 diagrams in section
