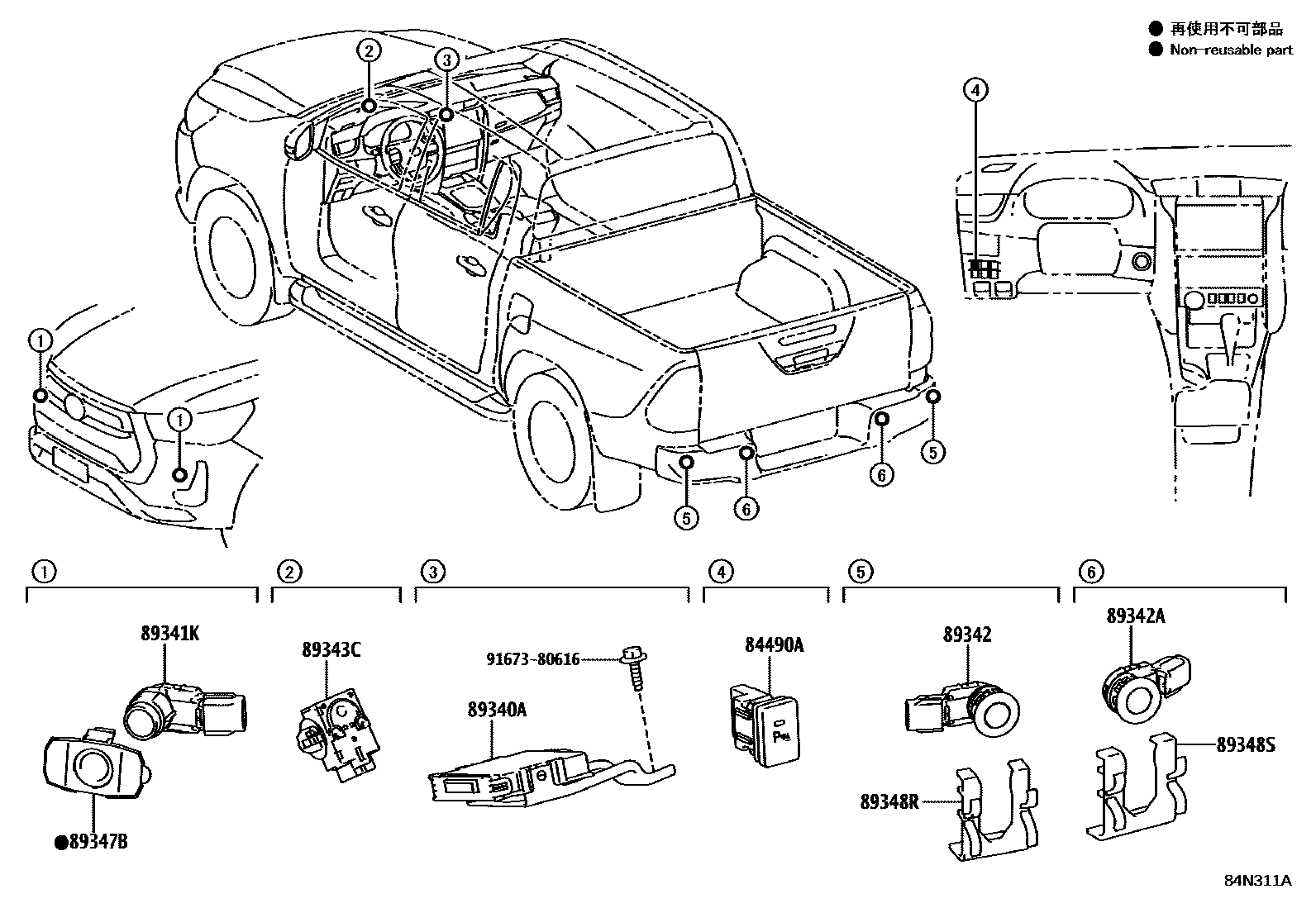

Toyota HILUX (DOUBLE CAB) — CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-0K030iGUN126..TWN;TGN126..5F..S..GCC;GUN126..RHD..THP..S..CBU;GUN125,13#..S..(ARL,GEN,IDN,TH)¥3,030202108-202207
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH
main89341-06080-A0iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
main89341-06080-A0iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202210
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
SUPER WHITE 2,040
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
TIRE & DISC WHEEL-265/65R17 STEEL&CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARLMC.,089
TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
WHITE PEARL CS.,070
main89341-06080-A2iGUN135..AGTP..6FC..LA;GGN125,TGN128,138..AGTP;GUN126,136,TGN126..AGTP..H202108-202301
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
main89341-06080-A2iGUN126..TWN;TGN126..5F..S..GCC;GUN126..RHD..THP..S..CBU;GUN125,13#..S..(ARL,GEN,IDN,TH)202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
main89341-06080-A2iGUN126..TWN;TGN126..5F..S..GCC;GUN126..RHD..THP..S..CBU;GUN125,13#..S..(ARL,GEN,IDN,TH)202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
GRAY ME.,1G3
main89341-06080-B2iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
main89341-06080-B2iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
main89341-06080-B2iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202301
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
SILVER ME.,1D6
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
main89341-06080-B3iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202301
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
main89341-06080-B3iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6
CRIMSON SPARK RED ME.,3T6
main89341-06080-D5iGUN126..TWN;TGN126..5F..S..GCC;GUN126..RHD..THP..S..CBU;GUN125,13#..S..(ARL,GEN,IDN,TH)202108-202210
EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8
main89341-06080-E3iGUN125,135..S..VN;GGN125,GUN125..6FC..H..GCC;GUN126,13#..H..(ARL,GCC,PH,TH,VN)..CBU202108-202301
ORANGE ME.,4R8
main89341-06080-E3iGUN125,135..S..VN;GGN125,GUN125..6FC..H..GCC;GUN126,13#..H..(ARL,GCC,PH,TH,VN)..CBU202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,8X2
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
main89341-06080-J3iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202210
CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8
main89341-06080-J3iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-71040iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥6,500202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
main89341-71040iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥6,500202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
main89341-71040iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥6,500202108-202301
CLEARANCE & BACK SONAR-WITH
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH
main89341-71030iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥6,500202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
main89341-71030iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥6,500202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥1,850202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
main89343-48010iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥1,850202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
main89343-48010iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥1,850202108-202301
CLEARANCE & BACK SONAR-WITH
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-0K020iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥430202108-202301
CLEARANCE & BACK SONAR-WITH
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-71020iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
main89348-71020iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
main89348-71020iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202301
CLEARANCE & BACK SONAR-WITH
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-71030iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
main89348-71030iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202207
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
main89348-71030iGUN125..VN;GUN125..RHD..H..GEN;TGN126..THP..H..(GEN,LA);GUN135..THP..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..THP..H..(ARL,GCC,GEN,LA,PH,TH,VN)..CBU¥0202108-202301
CLEARANCE & BACK SONAR-WITH
9167380616
10 parts on this diagram · 2 diagrams in section
