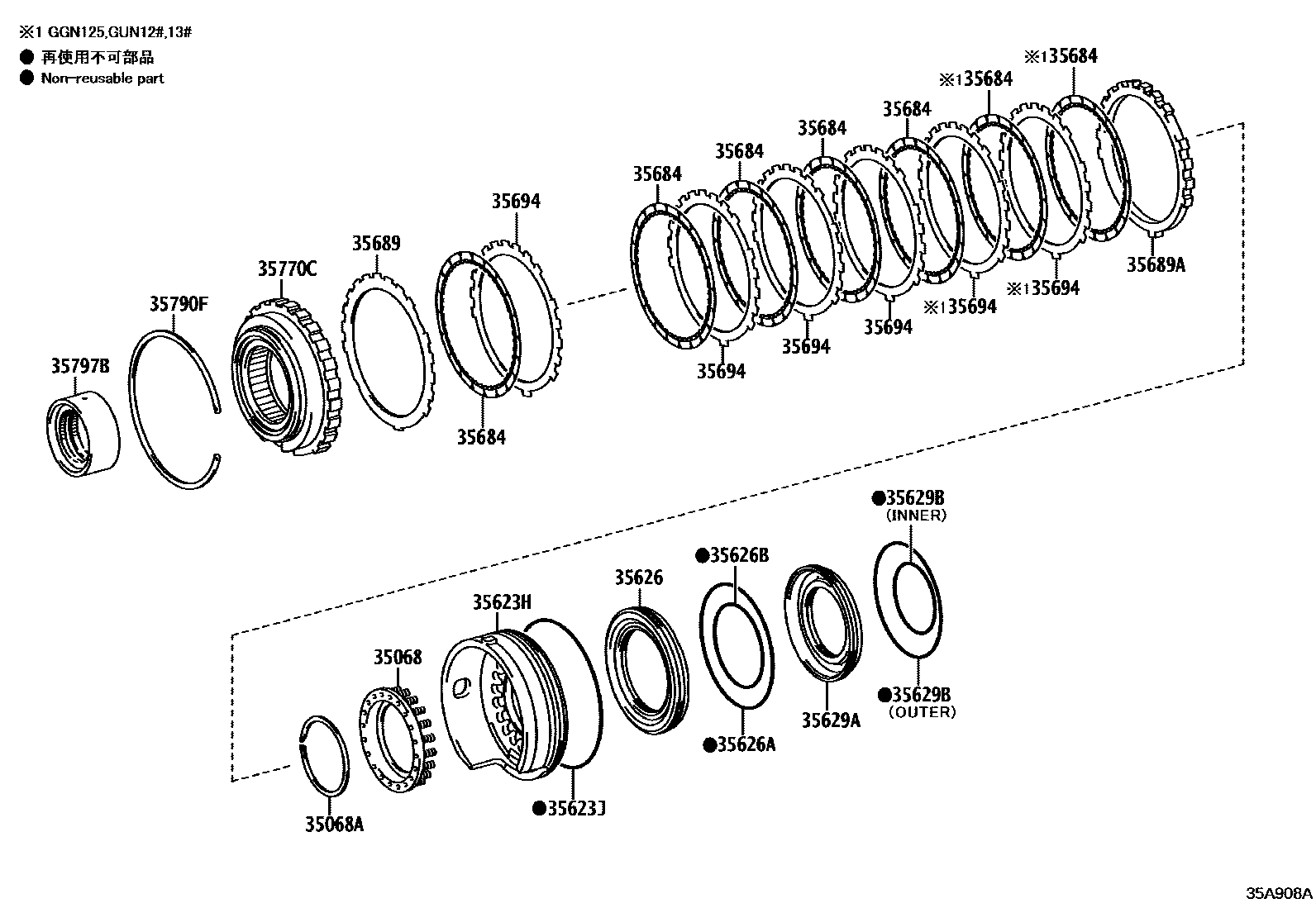

Toyota HILUX (DOUBLE CAB) — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN126..MMR202108-202210

(L)

main35068-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35068-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

main35068-60010iGUN126..6FC..TH¥1,850202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35068-60010iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,850202108-202210

(J)

main35068-60010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥1,850202108-202303

(J)

main35068-60010iGUN126..6FC..TH¥1,850202108-202207

(J)

main35068-60010iGUN126..6FC..IND¥1,850202108-202209

(J)

main35068-60010iGUN126..6FC..PKN¥1,850202108-202301

(J)

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥120202108-202207

main90520-61001iGUN125,126..6FC..MA¥120202108-202208

main90520-61001iGUN126..6FC..IND¥120202108-202209

main90520-61001iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥120202108-202210

main90520-61001iGUN126..6FC..PKN¥120202108-202301

main90520-61001iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥120202108-202303

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGGN125,GUN120,121,125,126,13#..THP..6FC202108-202207

(L)

main35623-0K010iGUN126..MMR202108-202210

(L)

main35623-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35623-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35623-71010iGGN125,GUN125,126,13#..6FC..(GHA,KEN,SA)¥4,150202108-202303

(J)

main35623-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥4,150202108-202207

(J)

main35623-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥4,150202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35623-71010iGUN126..6FC..IND¥4,150202108-202209

(J)

main35623-71010iGGN125,GUN125,126,13#..AGTP..6FC¥4,150202108-202210

(J)

main35623-71010iGUN126..6FC..PKN¥4,150202108-202301

(J)

main35623-71020iTGN128,138¥4,650202109-202210

(J)

main35623-71020iTGN126..6FC..SA¥4,650202109-202301

(J)

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥200202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-99087iGUN126..6FC..TH¥200202108-202207

(J)

main90301-99087iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥200202108-202210

(J)

main90301-99087iGUN126..6FC..IND¥200202108-202209

(J)

main90301-99087iGUN126..6FC..PKN¥200202108-202301

(J)

main90301-99087iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥200202108-202303

(J)

main90301-T0072iGUN126..MMR202108-202210

(L)

main90301-T0072iGUN125,126..6FC..MA202108-202208

(L)

main90301-T0072iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

35626SLEEVE, BRAKE REACTION

main35626-50010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,360202108-202207

main35626-50010iGUN125,126..6FC..MA¥1,360202108-202208

main35626-50010iGUN126..6FC..IND¥1,360202108-202209

main35626-50010iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,360202108-202210

main35626-50010iGUN126..6FC..PKN¥1,360202108-202301

main35626-50010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,360202108-202303

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGUN126..6FC..IND¥200202108-202209

(J)

main90301-99144iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥200202108-202207

(J)

main90301-99144iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥200202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-99144iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥200202108-202210

(J)

main90301-99144iGUN126..6FC..PKN¥200202108-202301

(J)

main90301-99144iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥200202108-202303

(J)

main90301-T0073iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

main90301-T0073iGUN125,126..6FC..MA202108-202208

(L)

main90301-T0073iGUN126..MMR202108-202210

(L)

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGUN126..6FC..TH¥170202108-202207

(J)

main90301-79003iGUN126..6FC..TH¥170202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-79003iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥170202108-202210

(J)

main90301-79003iGUN126..6FC..IND¥170202108-202209

(J)

main90301-79003iGUN126..6FC..PKN¥170202108-202301

(J)

main90301-79003iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥170202108-202303

(J)

main90301-T0074iGUN126..MMR202108-202210

(L)

main90301-T0074iGUN125,126..6FC..MA202108-202208

(L)

main90301-T0074iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

35629APISTON, BRAKE, NO.4

main35629-50020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,800202108-202207

main35629-50020iGUN125,126..6FC..MA¥1,800202108-202208

main35629-50020iGUN126..6FC..IND¥1,800202108-202209

main35629-50020iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,800202108-202210

main35629-50020iGUN126..6FC..PKN¥1,800202108-202301

main35629-50020iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,800202108-202303

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥170202108-202207

(J),INNER

main90301-67006iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥170202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J),INNER

main90301-67006iGUN126..6FC..IND¥170202108-202209

(J),INNER

main90301-67006iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥170202108-202210

(J),INNER

main90301-67006iGUN126..6FC..PKN¥170202108-202301

(J),INNER

main90301-67006iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥170202108-202303

(J),INNER

main90301-99084iGUN126..6FC..TH¥200202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J),OUTER

main90301-99084iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥200202108-202303

(J),OUTER

main90301-99084iGUN126..6FC..PKN¥200202108-202301

(J),OUTER

main90301-99084iGUN126..6FC..TH¥200202108-202207

(J),OUTER

main90301-99084iGUN126..6FC..IND¥200202108-202209

(J),OUTER

main90301-99084iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥200202108-202210

(J),OUTER

main90301-T0075iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L),OUTER

main90301-T0075iGUN125,126..6FC..MA202108-202208

(L),OUTER

main90301-T0075iGUN126..MMR202108-202210

(L),OUTER

main90301-T0076iGUN126..MMR202108-202210

(L),INNER

main90301-T0076iGUN125,126..6FC..MA202108-202208

(L),INNER

main90301-T0076iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L),INNER

35684DISC, BRAKE, NO.4

main35684-0K010iTGN121,126..THP..6FC202108-202207

(L)

main35684-0K010iGUN126..MMR202108-202210

(L)

main35684-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35684-60030iTGN126..6FC..SA¥760202109-202301

(J)

main35684-60030iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥760202108-202207

(J)

main35684-60030iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥760202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35684-60030iGUN126..6FC..IND¥760202108-202209

(J)

main35684-60030iGGN125,GUN125,126,13#..AGTP..6FC¥760202108-202210

(J)

main35684-60030iTGN128,138¥760202109-202210

(J)

main35684-60030iGUN126..6FC..PKN¥760202108-202301

(J)

main35684-60030iGGN125,GUN125,126,13#..6FC..(GHA,KEN,SA)¥760202108-202303

(J)

35689FLANGE, BRAKE, NO.4

main35689-60270iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=1.8,MARK 0

main35689-60270iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=1.8,MARK 0

main35689-60270iGUN126..6FC..PKN¥1,720202108-202301

T=1.8,MARK 0

main35689-60270iGUN126..6FC..IND¥1,720202108-202209

T=1.8,MARK 0

main35689-60270iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=1.8,MARK 0

main35689-60270iGUN125,126..6FC..MA¥1,720202108-202208

T=1.8,MARK 0

main35689-60280iGUN126..6FC..IND¥1,720202108-202209

T=1.97,MARK 1

main35689-60280iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=1.97,MARK 1

main35689-60280iGUN126..6FC..PKN¥1,720202108-202301

T=1.97,MARK 1

main35689-60280iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=1.97,MARK 1

main35689-60280iGUN125,126..6FC..MA¥1,720202108-202208

T=1.97,MARK 1

main35689-60280iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=1.97,MARK 1

main35689-60290iGUN126..6FC..IND¥1,720202108-202209

T=2.11,MARK 3

main35689-60290iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.11,MARK 3

main35689-60290iGUN125,126..6FC..MA¥1,720202108-202208

T=2.11,MARK 3

main35689-60290iGUN126..6FC..PKN¥1,720202108-202301

T=2.11,MARK 3

main35689-60290iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.11,MARK 3

main35689-60290iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.11,MARK 3

main35689-60300iGUN126..6FC..PKN¥1,720202108-202301

T=2.25,MARK 4

main35689-60300iGUN125,126..6FC..MA¥1,720202108-202208

T=2.25,MARK 4

main35689-60300iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.25,MARK 4

main35689-60300iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.25,MARK 4

main35689-60300iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.25,MARK 4

main35689-60300iGUN126..6FC..IND¥1,720202108-202209

T=2.25,MARK 4

main35689-60310iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.39,MARK 5

main35689-60310iGUN125,126..6FC..MA¥1,720202108-202208

T=2.39,MARK 5

main35689-60310iGUN126..6FC..IND¥1,720202108-202209

T=2.39,MARK 5

main35689-60310iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.39,MARK 5

main35689-60310iGUN126..6FC..PKN¥1,720202108-202301

T=2.39,MARK 5

main35689-60310iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.39,MARK 5

main35689-60320iGUN126..6FC..PKN¥1,720202108-202301

T=2.53,MARK 7

main35689-60320iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.53,MARK 7

main35689-60320iGUN125,126..6FC..MA¥1,720202108-202208

T=2.53,MARK 7

main35689-60320iGUN126..6FC..IND¥1,720202108-202209

T=2.53,MARK 7

main35689-60320iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.53,MARK 7

main35689-60320iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.53,MARK 7

main35689-60330iGUN126..6FC..PKN¥1,720202108-202301

T=2.67,MARK 8

main35689-60330iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.67,MARK 8

main35689-60330iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.67,MARK 8

main35689-60330iGUN126..6FC..IND¥1,720202108-202209

T=2.67,MARK 8

main35689-60330iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.67,MARK 8

main35689-60330iGUN125,126..6FC..MA¥1,720202108-202208

T=2.67,MARK 8

main35689-60340iGUN126..6FC..IND¥1,720202108-202209

T=2.81,MARK10

main35689-60340iGUN125,126..6FC..MA¥1,720202108-202208

T=2.81,MARK10

main35689-60340iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.81,MARK10

main35689-60340iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.81,MARK10

main35689-60340iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.81,MARK10

main35689-60340iGUN126..6FC..PKN¥1,720202108-202301

T=2.81,MARK10

main35689-60350iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=2.95,MARK 11

main35689-60350iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=2.95,MARK 11

main35689-60350iGUN126..6FC..IND¥1,720202108-202209

T=2.95,MARK 11

main35689-60350iGUN126..6FC..PKN¥1,720202108-202301

T=2.95,MARK 11

main35689-60350iGUN125,126..6FC..MA¥1,720202108-202208

T=2.95,MARK 11

main35689-60350iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=2.95,MARK 11

main35689-60360iGUN126..6FC..IND¥1,720202108-202209

T=3.09,MARK 12

main35689-60360iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=3.09,MARK 12

main35689-60360iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=3.09,MARK 12

main35689-60360iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=3.09,MARK 12

main35689-60360iGUN125,126..6FC..MA¥1,720202108-202208

T=3.09,MARK 12

main35689-60360iGUN126..6FC..PKN¥1,720202108-202301

T=3.09,MARK 12

main35689-60370iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

T=3.23,MARK 14

main35689-60370iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

T=3.23,MARK 14

main35689-60370iGUN125,126..6FC..MA¥1,720202108-202208

T=3.23,MARK 14

main35689-60370iGUN126..6FC..IND¥1,720202108-202209

T=3.23,MARK 14

main35689-60370iGUN126..6FC..PKN¥1,720202108-202301

T=3.23,MARK 14

main35689-60370iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-71010iGUN126..6FC..IND¥1,720202108-202209

main35689-71010iGUN126..6FC..PKN¥1,720202108-202301

main35689-71010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥1,720202108-202303

main35689-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,720202108-202207

main35689-71010iGUN125,126..6FC..MA¥1,720202108-202208

main35689-71010iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥1,720202108-202210

35694PLATE, BRAKE, NO.4

main35694-0K010iTGN121,126..THP..6FC202108-202207

(L)

main35694-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35694-0K010iGUN126..MMR202108-202210

(L)

main35694-60011iTGN126..6FC..SA¥470202109-202301

(J)

main35694-60011iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥470202108-202207

(J)

main35694-60011iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥470202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35694-60011iGUN126..6FC..IND¥470202108-202209

(J)

main35694-60011iGGN125,GUN125,126,13#..AGTP..6FC¥470202108-202210

(J)

main35694-60011iTGN128,138¥470202109-202210

(J)

main35694-60011iGUN126..6FC..PKN¥470202108-202301

(J)

main35694-60011iGGN125,GUN125,126,13#..6FC..(GHA,KEN,SA)¥470202108-202303

(J)

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

main35770-0K020iGUN125,126..6FC..MA202108-202208

(L)

main35770-0K020iGUN126..MMR202108-202210

(L)

main35770-60030iGUN126..6FC..TH¥32,900202108-202207

(J)

main35770-60030iGUN126..6FC..TH¥32,900202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35770-60030iGUN126..6FC..PKN¥32,900202108-202301

(J)

main35770-60030iGUN126..6FC..IND¥32,900202108-202209

(J)

main35770-60030iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)¥32,900202108-202303

(J)

main35770-60030iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥32,900202108-202210

(J)

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥310202108-202207

main90521-99131iGUN125,126..6FC..MA¥310202108-202208

main90521-99131iGUN126..6FC..IND¥310202108-202209

main90521-99131iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥310202108-202210

main90521-99131iGUN126..6FC..PKN¥310202108-202301

main90521-99131iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥310202108-202303

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥6,600202108-202207

main35797-60020iGUN125,126..6FC..MA¥6,600202108-202208

main35797-60020iGUN126..6FC..IND¥6,600202108-202209

main35797-60020iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC¥6,600202108-202210

main35797-60020iGUN126..6FC..PKN¥6,600202108-202301

main35797-60020iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)¥6,600202108-202303

16 parts on this diagram · 1 diagram in section
