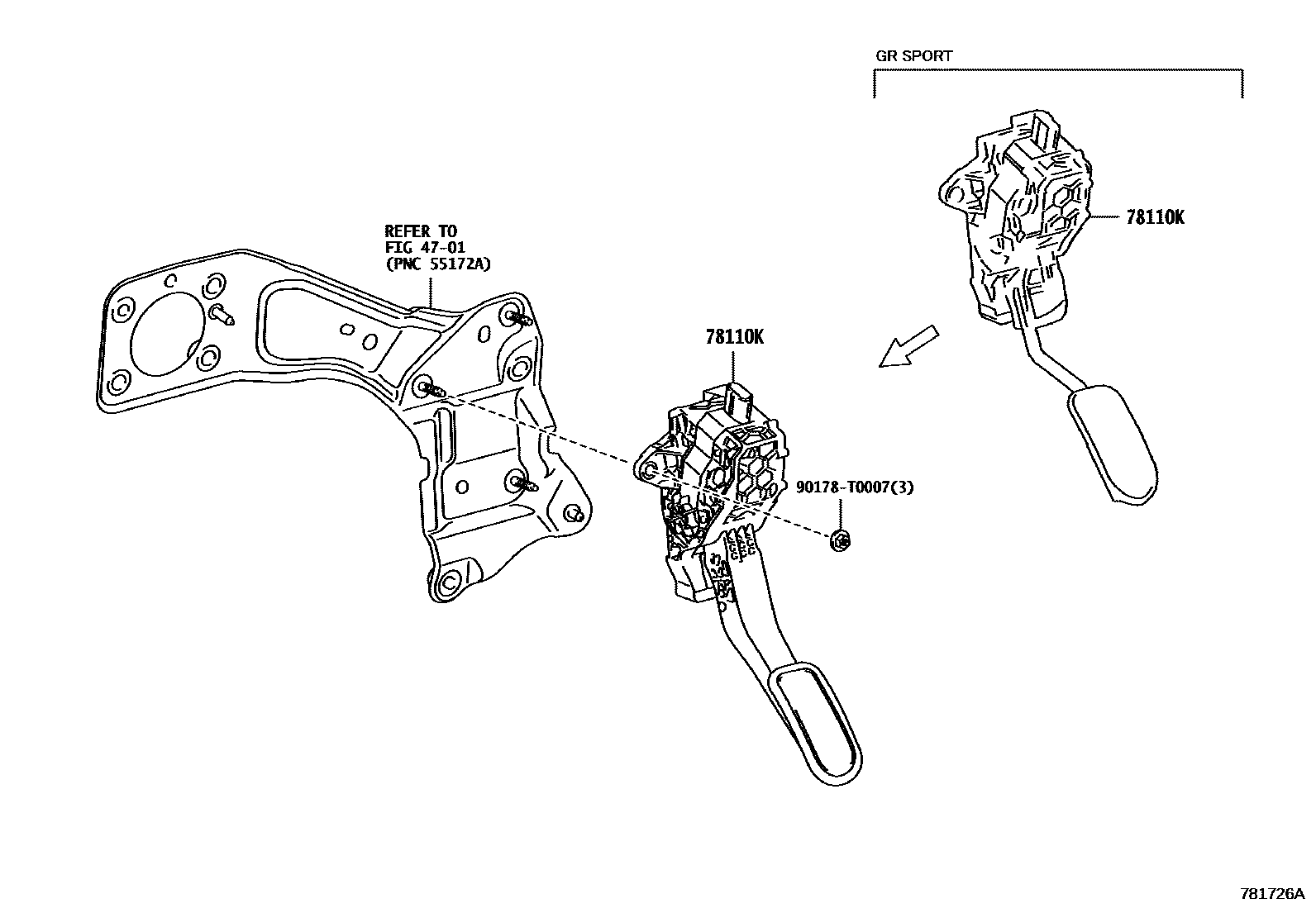

Toyota HILUX (DOUBLE CAB) — ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-KK011iGUN126..PKN¥7,600202108-202301

main78110-KK011iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)¥7,600202108-202303

main78110-KK011iGUN12#,13#,TGN121..RHD..THP¥7,600202108-202207

main78110-KK011iGUN126..IND¥7,600202108-202209

main78110-KK011iGUN125,126..MA¥7,600202108-202208

main78110-KK021iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main78110-KK021iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202207

main78110-KK021iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202210

90178T0007

main90178-T0007¥80

3 parts on this diagram · 2 diagrams in section
