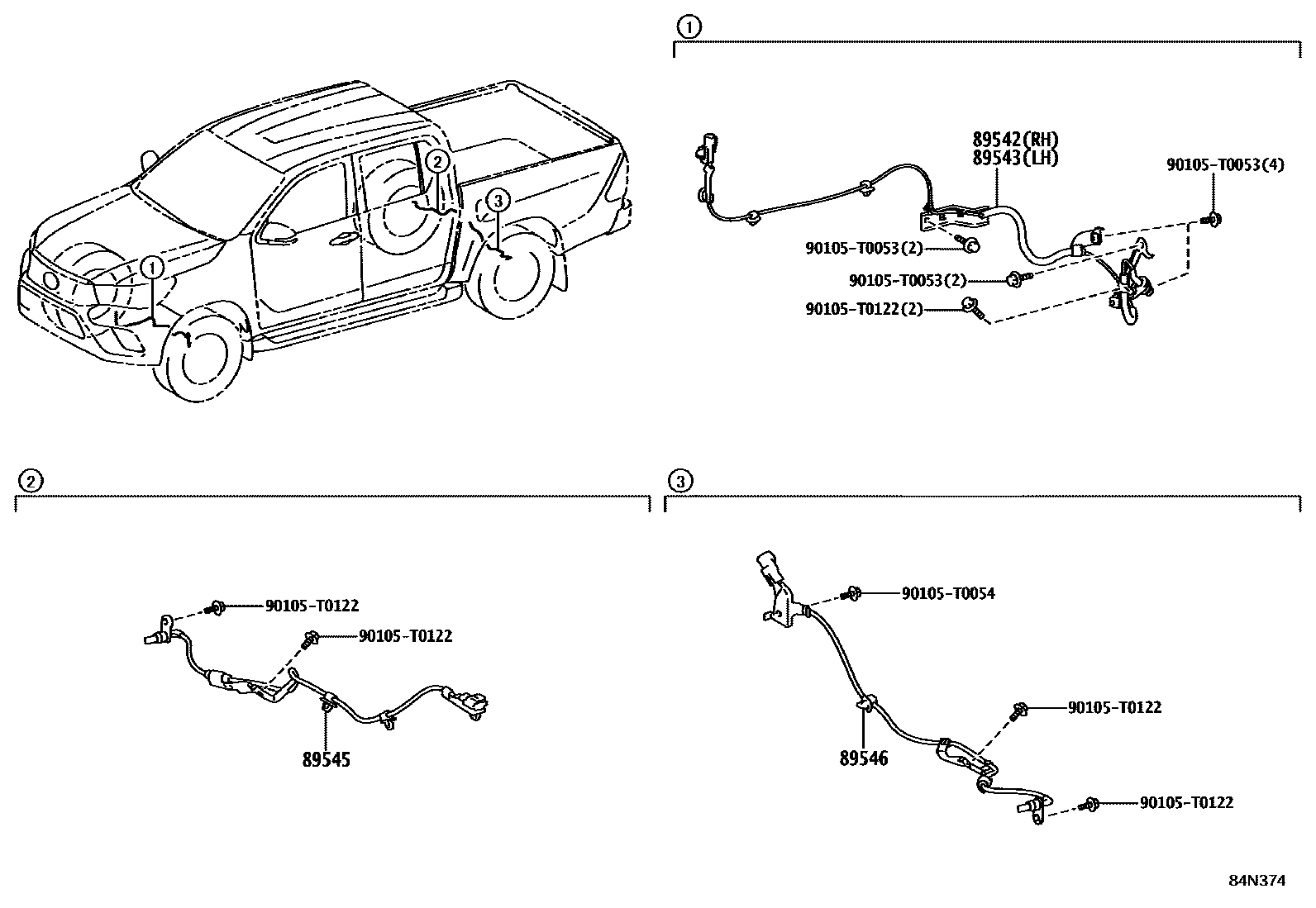

Toyota HILUX (DOUBLE CAB) — ABS & VSC

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iGUN122,TGN121..SA202108-202301

main89542-0K060iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥8,100202108-202301

main89542-0K070iGUN126..IND202203-202209

main89542-0K080iGUN125,126..MA202109-202303

89543SENSOR, SPEED, FRONT LH

main89543-0K050iGUN120,121,122,TGN120,121..THP202108-202301

main89543-0K061iGUN126..MMR,PKN¥8,100202108-202301

main89543-0K071iGUN126..IND202203-202209

main89543-0K081iGUN125,126..MA202109-202303

89545SENSOR, SPEED, REAR RH

main89545-0K220iGUN120,121,122,TGN120,121..THP202108-202207

main89545-0K240iGGN125,GUN125,126,13#,TGN126,136..THP¥8,100202108-202301

main89545-0K280iGUN122,TGN121..SA202109-202301

main89545-0K290iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202109-202303

89546SENSOR, SPEED, REAR LH

main89546-0K220iGUN120,121,122,TGN120,121..THP202108-202207

main89546-0K240iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥8,100202108-202301

main89546-0K280iGUN122,TGN121..SA202109-202301

main89546-0K290iGUN125,126..MA202109-202303

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 2 diagrams in section
