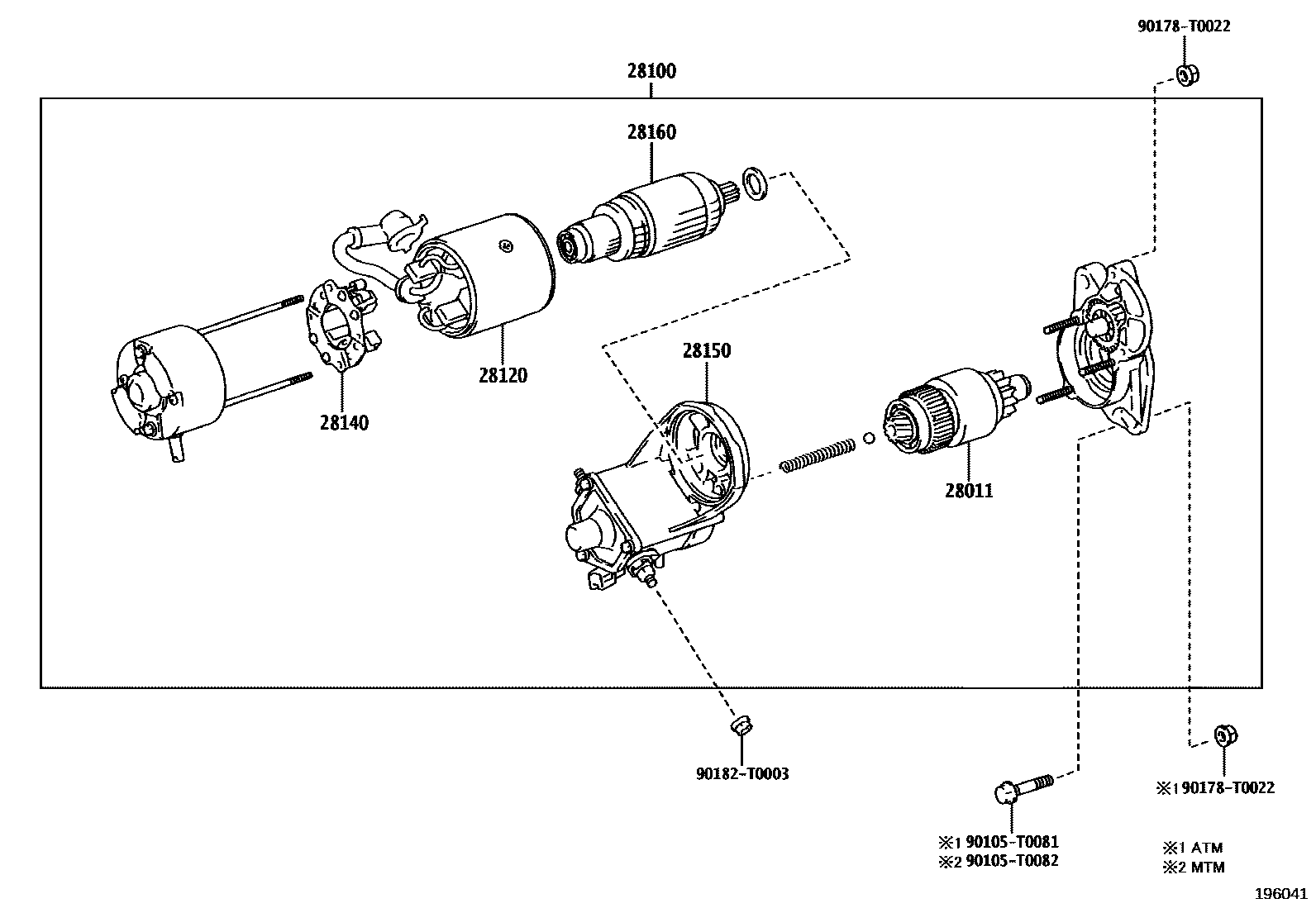

Toyota HILUX (DCB/SCB/XTR) — STARTER

0001 112V 2.7KW 0002 112V 2.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1GDFTV,2GDFTV..GUN12#,135..THP¥19,200202108-202207

main28011-30050i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR¥19,200202108-202301

28100STARTER ASSY

main28100-0L052i1GDFTV,2GDFTV..GUN12#,135..THP¥88,300202108-202207

12V 2.7KW

main28100-0L052i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR¥88,300202108-202301

12V 2.7KW

main28100-30110i2GDFTV..GUN135..DCB..SAP;1GDFTV,2GDFTV..GUN12#..(DCB,XTR)..SAP¥84,400202109-202301

12V 2.4KW

28120YOKE ASSY, STARTER

main28120-0L050i1GDFTV,2GDFTV..GUN12#,135..THP202108-202207

main28120-0L050i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR202108-202301

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i1GDFTV,2GDFTV..GUN12#,135..THP202108-202207

main28140-77090i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR202108-202301

28150SWITCH ASSY, MAGNET STARTER

main28150-0L050i1GDFTV,2GDFTV..GUN12#,135..THP¥25,000202108-202207

main28150-0L050i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR¥25,000202108-202301

28160ARMATURE ASSY, STARTER

main28160-54140i1GDFTV,2GDFTV..GUN12#,135..THP¥20,000202108-202207

main28160-54140i2GDFTV..GUN125..SCB;2GDFTV..GUN135..SCB,XTR¥20,000202108-202301

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022¥100

90182T0003

main90182-T0003¥100

10 parts on this diagram · 2 diagrams in section
