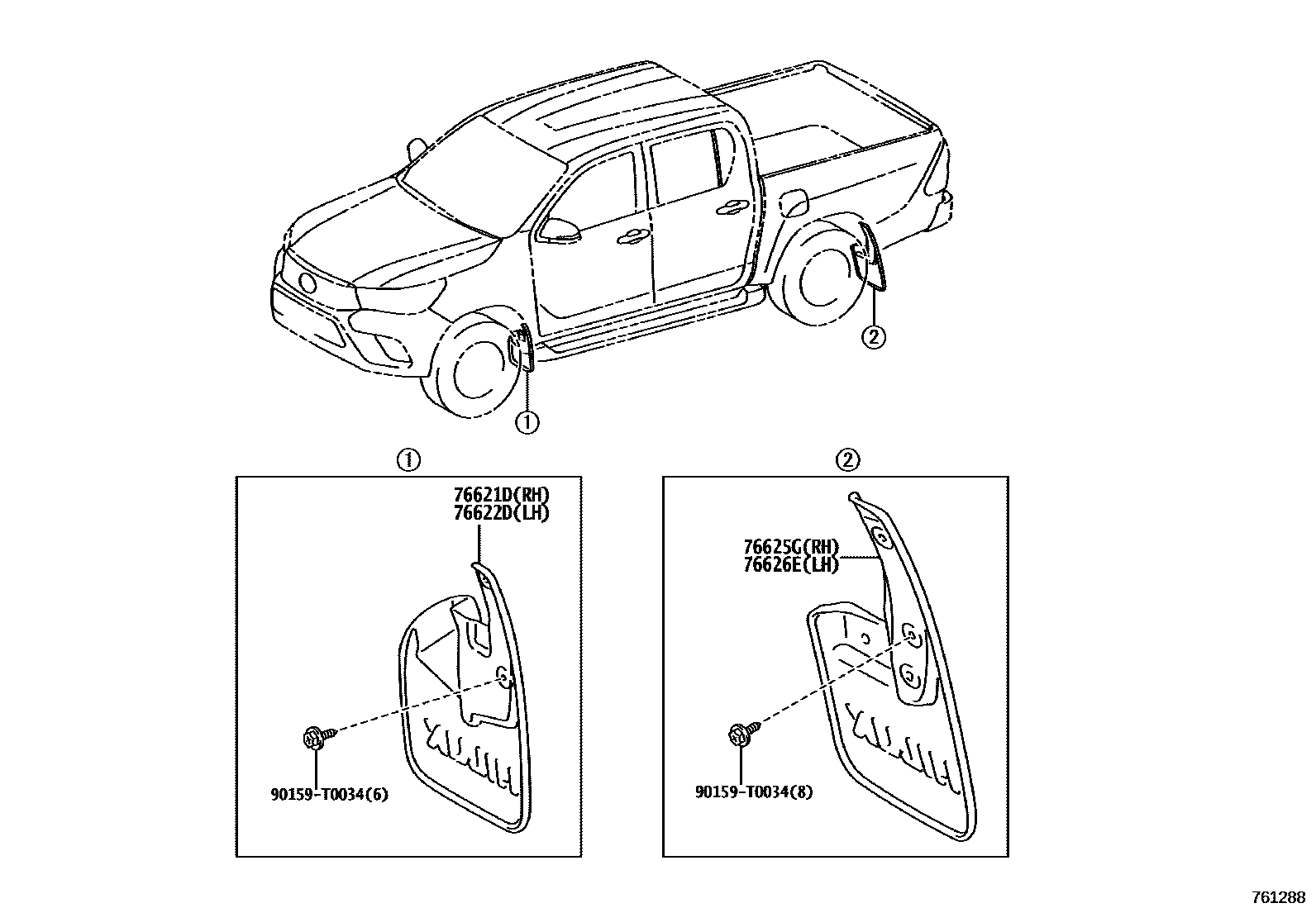

Toyota HILUX (DCB/SCB/XTR) — SPOILER & SIDE MUDGUARD

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K140iGUN126,135..THP;GUN125..THP..6FC¥2,220202108-202207

MUD GUARD-WITH(FRONT & REAR)

main76621-0K150iGUN125,135..SCB..CBU202109-202301

MUD GUARD-WITH(FRONT ONLY)

main76621-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

main76621-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT ONLY)

main76621-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

MUD GUARD-WITH(FRONT ONLY)

76622DMUDGUARD, FRONT FENDER, LH

main76622-0K140iGUN126,135..THP;GUN125..THP..6FC¥1,840202108-202207

MUD GUARD-WITH(FRONT & REAR)

main76622-0K150iGUN125,135..SCB..CBU202109-202301

MUD GUARD-WITH(FRONT ONLY)

main76622-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

main76622-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL&MUD GUARD-WITH(FRONT ONLY)

main76622-0K160iGUN135..(DCB,XTR)..SAP;GUN12#..(DCB,XTR)..SAP..CBU202109-202301

MUD GUARD-WITH(FRONT ONLY)

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202108-202207

MARK = WB

main76625-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202108-202207

MUD GUARD-WITH(FRONT & REAR),MARK = WB

main76625-0K320iGUN125,135..SCB..CBU202109-202301

main76625-0K330iGUN12#,135..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202108-202207

MARK = WB

main76626-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202108-202207

MUD GUARD-WITH(FRONT & REAR),MARK = WB

main76626-0K320iGUN125,135..SCB..CBU202109-202301

main76626-0K330iGUN12#,135..(DCB,XTR)..SAP..CBU202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

90159T0034

main90159-T0034

5 parts on this diagram · 1 diagram in section
