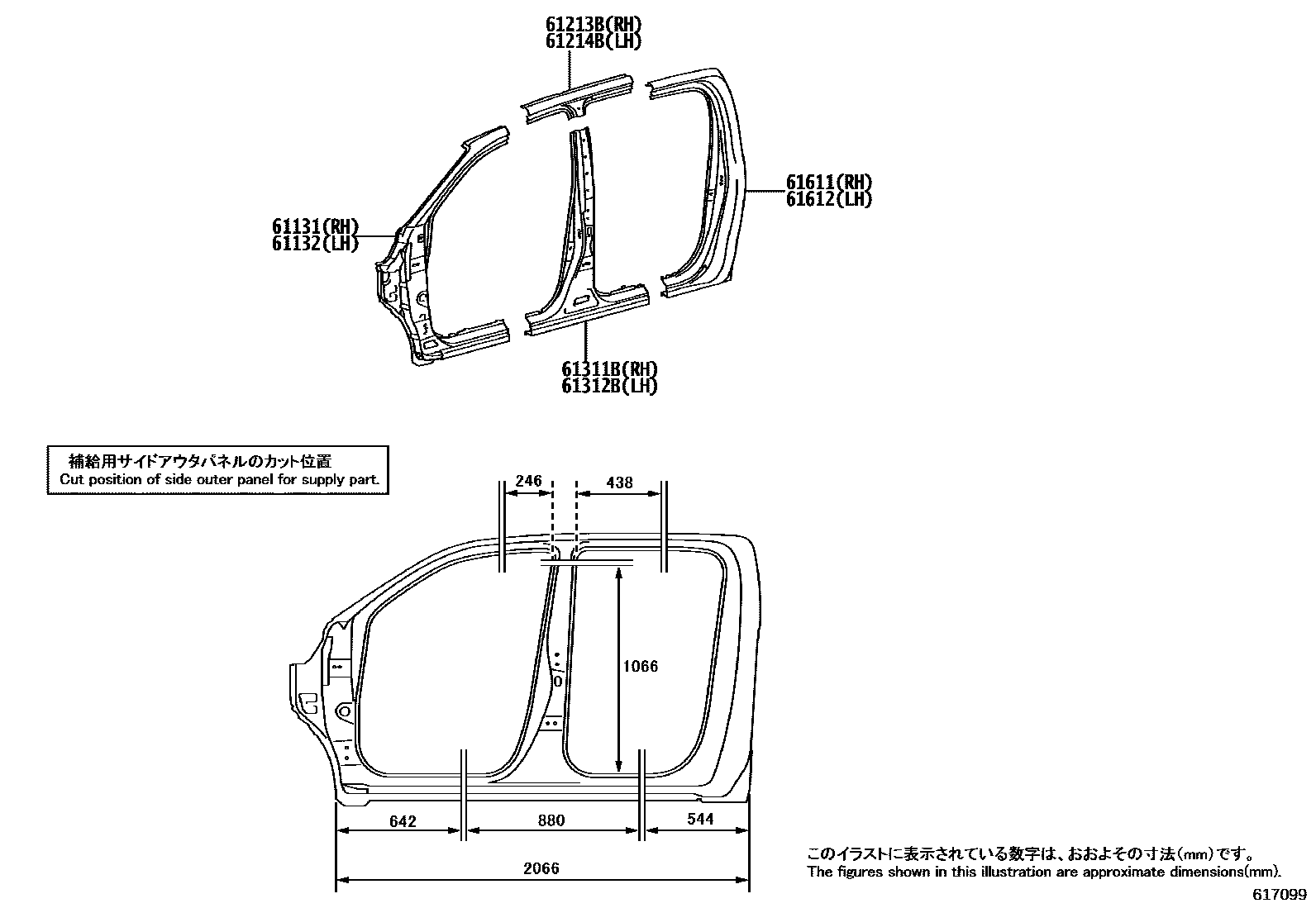

Toyota HILUX (DCB/SCB/XTR) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1OUTER PANEL 0005 1INNER PANEL,RH 0006 1INNER PANEL,LH 0007 1OUTER PANEL 0008 1INNER PANEL,RH 0009 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK010iGUN12#,135..DCB..SAP¥15,200202108-202301

main61131-KK020iGUN125,135..SCB202109-202301

main61131-KK030iGUN12#,135..XTR202109-202301

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK010iGUN12#,135..THP¥15,200202108-202301

main61132-KK020iGUN125,135..SCB202109-202301

main61132-KK030iGUN12#,135..XTR202109-202301

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK010iGUN12#,135..THP¥3,860202108-202301

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK010iGUN12#,135..DCB..SAP¥3,860202108-202301

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK010iGUN12#,135..THP¥13,400202108-202301

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK010iGUN12#,135..THP¥13,400202108-202301

61611PANEL, QUARTER, RH

main61611-KK010iGUN12#,135..THP¥16,700202108-202301

main61611-KK020iGUN125,135..SCB202109-202301

main61611-KK030iGUN12#,135..XTR202109-202301

61612PANEL, QUARTER, LH

main61612-KK010iGUN12#,135..THP¥16,700202108-202301

main61612-KK020iGUN125,135..SCB202109-202301

main61612-KK030iGUN12#,135..XTR202109-202301

8 parts on this diagram · 9 diagrams in section
