Toyota HILUX (DCB/SCB/XTR) — REAR VENTILATOR & ROOF VENTILATOR

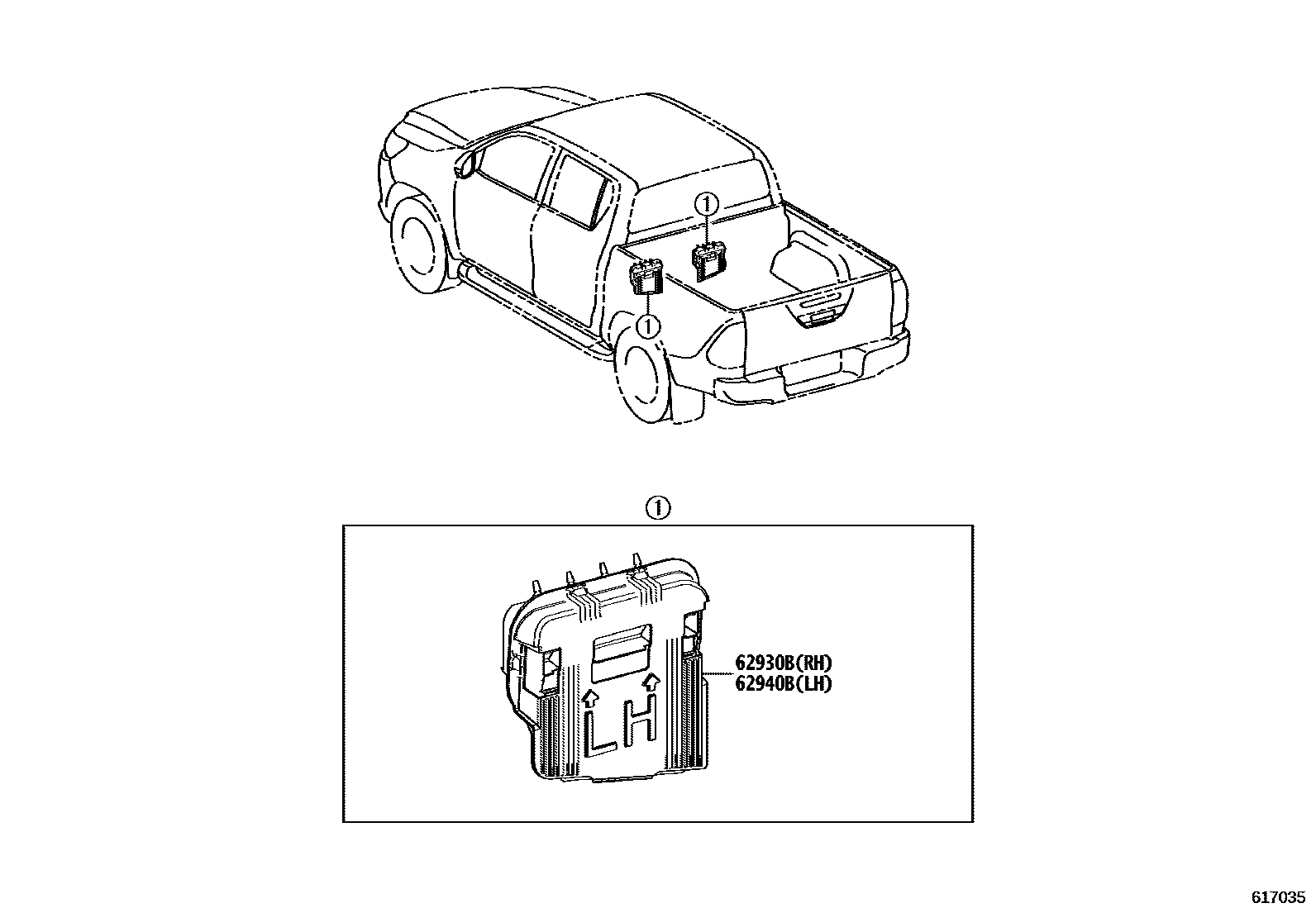

Parts diagram

62930BDUCT ASSY, QUARTER VENT, RH

main62930-0K091i¥4,120202108-202207

main62930-0K112i202109-202301

62940BDUCT ASSY, QUARTER VENT, LH

main62940-0K210i¥4,120202108-202207

main62940-0K230i202109-202301

2 parts on this diagram · 1 diagram in section
