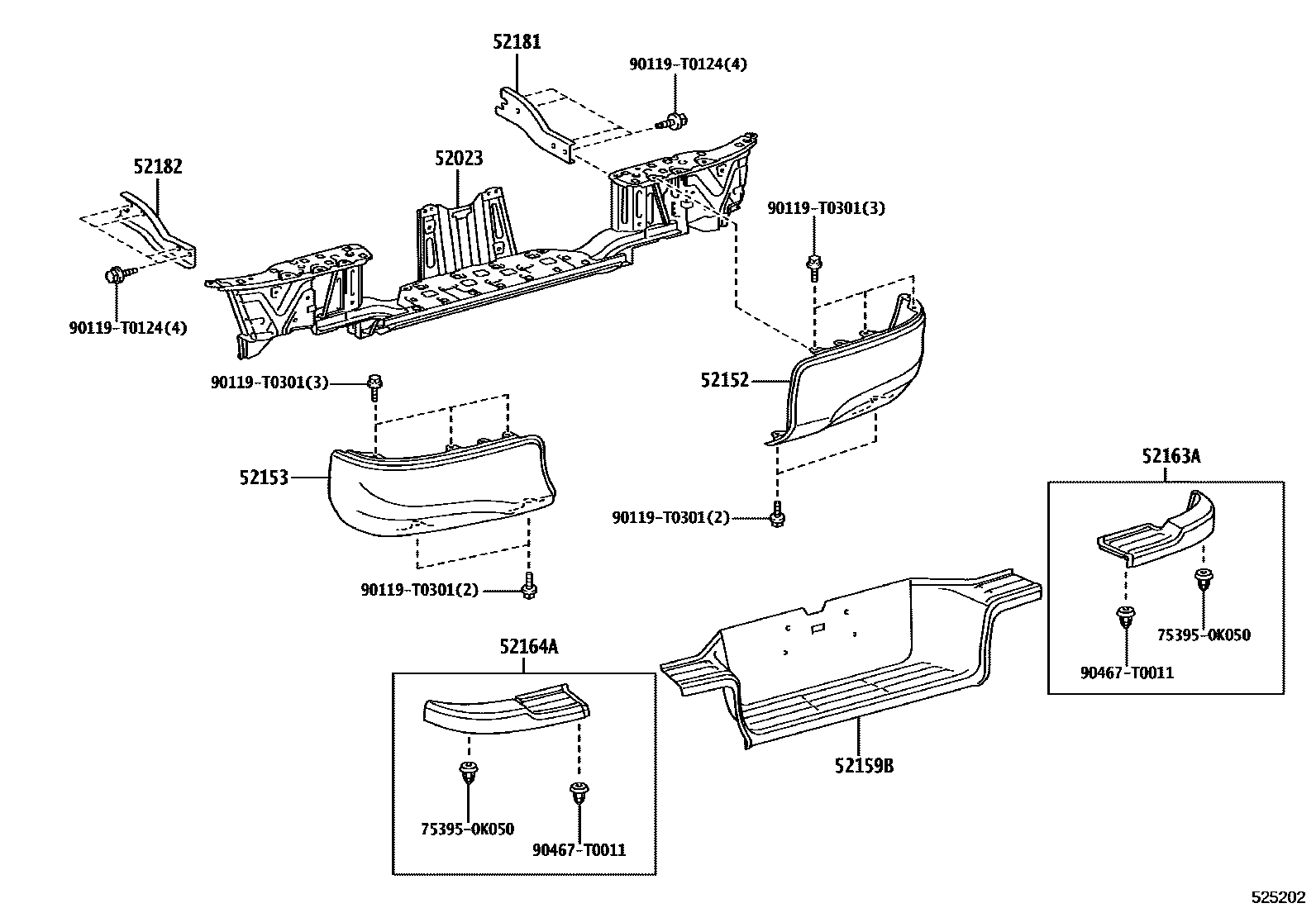

Toyota HILUX (DCB/SCB/XTR) — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BAR, REAR BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.
PLATED,TURKEY SPEC (EURO 6 REGULATION)
PLATED,TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE &BACK SONAR-WITH
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,ISRAEL SPEC (EURO 6 REGULATION)
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE &BACK SONAR-WITH
PLATED
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE& BACK SONAR-WITH
PLATED
52153BAR, REAR BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.
PLATED,TURKEY SPEC (EURO 6 REGULATION)
PLATED
PLATED,ISRAEL SPEC (EURO 6 REGULATION)
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE &BACK SONAR-WITH
PLATED,TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE &BACK SONAR-WITH
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE& BACK SONAR-WITH
PLATED
52159BPLATE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
753950K050CLIP, BACK DOOR MOULDING, NO.1
90119T0124
90119T0301
main90119-T0301
90467T0011
12 parts on this diagram · 1 diagram in section
