Toyota HILUX (DCB/SCB/XTR) — INSIDE TRIM BOARD

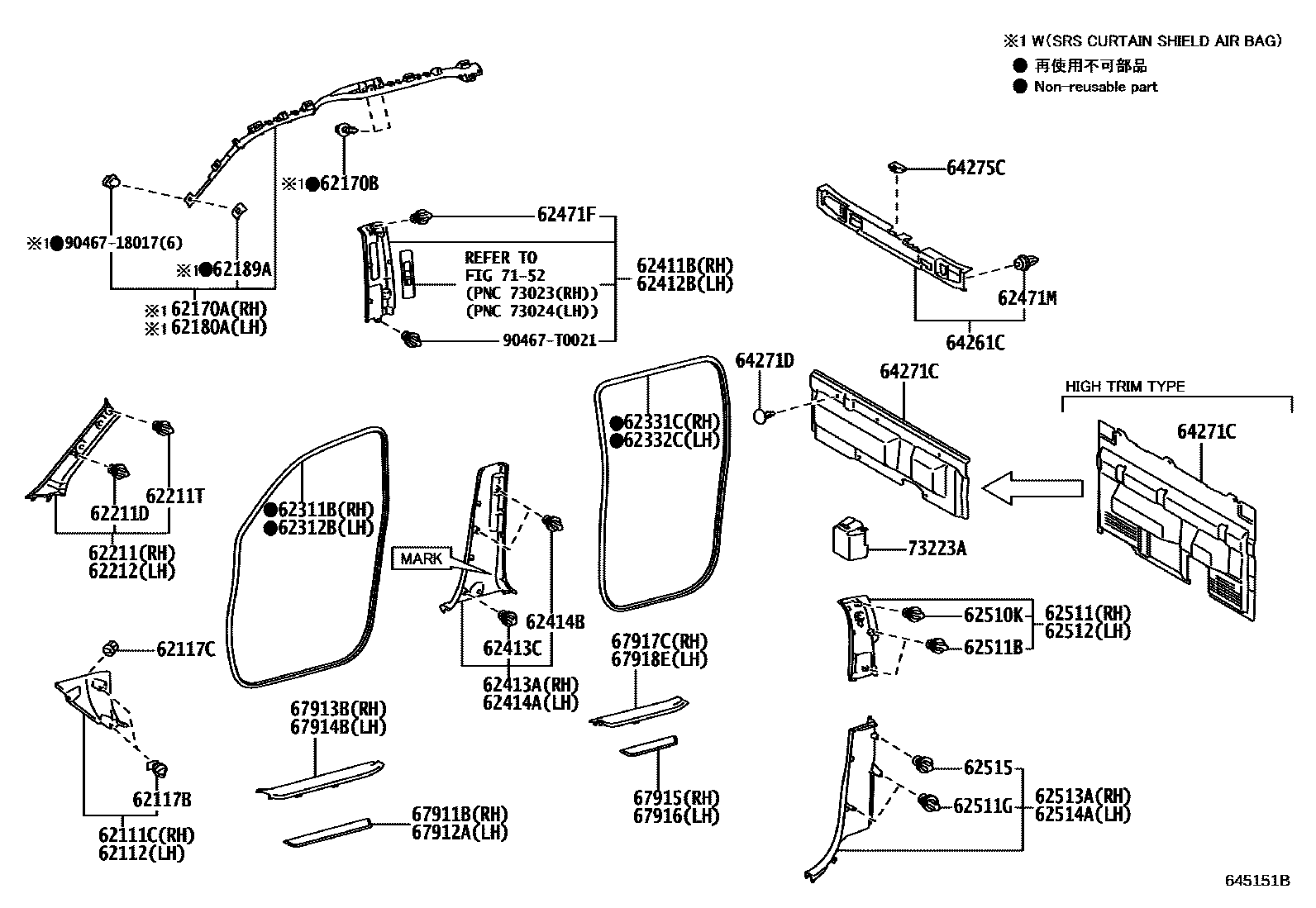

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-0K210-C0i202108-202207
BLACK,TRIM2#
main62111-KK010-C0i202109-202301
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-0K210-C0i202108-202207
BLACK,TRIM2#
main62112-KK010-C0i202109-202301
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-11089-A0i202108-202301
IVORY
sub90467-11089¥230
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-06147i¥80202108-202301
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0K100i¥27,900202108-202207
main62170-0K120i202109-202301
main62170-0K150i202109-202301
main62170-0K160i202109-202301
62170BBOLT, W/WASHER
main91673-80616i¥60202108-202301
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0K100i¥27,900202108-202207
main62180-0K120i202109-202301
main62180-0K150i202109-202301
main62180-0K160i202109-202301
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010i¥80202108-202301
62211GARNISH, FRONT PILLAR, RH
main62211-0K190-B0i202108-202207
LT.GRAY,TRIM20
main62211-0K190-B0i202108-202207
LT.GRAY,TRIM2#
main62211-0K190-C0i202108-202207
BLACK,TRIM21
main62211-KK030-B0i202109-202301
LT.GRAY,TRIM20
main62211-KK030-B0i202109-202301
LT.GRAY,TRIM2#
main62211-KK030-C0i202109-202301
BLACK,TRIM21,23
main62211-KK030-C0i202109-202301
BLACK,TRIM21
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-T0021i202108-202301
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-T0021i202108-202301
62212GARNISH, FRONT PILLAR, LH
main62212-0K190-B0i202108-202207
LT.GRAY,TRIM20
main62212-0K190-B0i202108-202207
LT.GRAY,TRIM2#
main62212-0K190-C0i202108-202207
BLACK,TRIM21
main62212-KK030-B0i202109-202301
LT.GRAY,TRIM20
main62212-KK030-B0i202109-202301
LT.GRAY,TRIM2#
main62212-KK030-C0i202109-202301
BLACK,TRIM21
main62212-KK030-C0i202109-202301
BLACK,TRIM21,23
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0K111i¥7,300202108-202207
main62311-0K141i202109-202301
main62311-0K160i202109-202301
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0K111i¥7,300202108-202207
main62312-0K141i202109-202301
main62312-0K160i202109-202301
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0K121i¥7,300202108-202207
main62331-0K141i202109-202301
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0K121i¥7,300202108-202207
main62332-0K141i202109-202301
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0K110-B0i202108-202207
LT.GRAY,TRIM20
main62411-0K110-B0i202108-202207
LT.GRAY,TRIM2#
main62411-0K110-C0i202108-202207
BLACK,TRIM21
main62411-KK020-B0i202109-202301
LT.GRAY,TRIM20
main62411-KK020-B0i202109-202301
LT.GRAY,TRIM2#
main62411-KK020-C0i202109-202301
BLACK,TRIM21,23
main62411-KK020-C0i202109-202301
BLACK,TRIM21
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0K110-B0i202108-202207
LT.GRAY,TRIM20
main62412-0K110-B0i202108-202207
LT.GRAY,TRIM2#
main62412-0K110-C0i202108-202207
BLACK,TRIM21
main62412-KK020-B0i202109-202301
LT.GRAY,TRIM20
main62412-KK020-B0i202109-202301
LT.GRAY,TRIM2#
main62412-KK020-C0i202109-202301
BLACK,TRIM21,23
main62412-KK020-C0i202109-202301
BLACK,TRIM21
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0K110-C0i202108-202207
BLACK,TRIM2#
main62413-KK010-C0i202109-202301
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10167i¥90202108-202301
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0K110-C0i202108-202207
BLACK,TRIM2#
main62414-KK010-C0i202109-202301
BLACK,TRIM2#
62414BCLIP (FOR CENTER LOWER GARNISH)
main90467-10188i¥80202108-202301
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-10188i¥80202108-202301
62471MCLIP
main90467-T0021i202108-202301
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
main90467-10188i¥80202108-202301
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-0K360-B0i202108-202207
LT.GRAY,TRIM20
main62511-0K360-B0i202108-202207
LT.GRAY,TRIM2#
main62511-0K360-C0i202108-202207
BLACK,TRIM21
main62511-KK020-B0i202109-202301
LT.GRAY,TRIM2#
main62511-KK040-B0i202109-202301
LT.GRAY,TRIM2#
main62511-KK040-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),LT.GRAY,TRIM20
main62511-KK040-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH),LT.GRAY,TRIM20
main62511-KK050-B0i202109-202301
LT.GRAY,TRIM20
main62511-KK050-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT,LT.GRAY,TRIM2#
main62511-KK050-C0i202109-202301
BLACK,TRIM21
main62511-KK070-B0i202109-202301
LT.GRAY,TRIM20
main62511-KK070-B0i202109-202301
LT.GRAY,TRIM2#
main62511-KK070-C0i202109-202301
BLACK,TRIM21,23
main62511-KK070-C0i202109-202301
BLACK,TRIM21
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-T0021i202108-202301
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-T0021i202108-202301
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-0K360-B0i202108-202207
LT.GRAY,TRIM20
main62512-0K360-B0i202108-202207
LT.GRAY,TRIM2#
main62512-0K360-C0i202108-202207
BLACK,TRIM21
main62512-KK020-B0i202109-202301
LT.GRAY,TRIM2#
main62512-KK040-B0i202109-202301
LT.GRAY,TRIM2#
main62512-KK040-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),LT.GRAY,TRIM20
main62512-KK040-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH),LT.GRAY,TRIM20
main62512-KK050-B0i202109-202301
LT.GRAY,TRIM20
main62512-KK050-B0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT,LT.GRAY,TRIM2#
main62512-KK050-C0i202109-202301
BLACK,TRIM21
main62512-KK070-B0i202109-202301
LT.GRAY,TRIM20
main62512-KK070-B0i202109-202301
LT.GRAY,TRIM2#
main62512-KK070-C0i202109-202301
BLACK,TRIM21,23
main62512-KK070-C0i202109-202301
BLACK,TRIM21
62513APANEL, QUARTER TRIM, LOWER RH
main62513-0K100-C0i202109-202301
BLACK,TRIM2#
main62513-0K100-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT,BLACK,TRIM2#
main62513-0K110-C0i202108-202207
BLACK,TRIM2#
sub62513-0K111¥4,730
main62513-0K250-C0i202109-202301
BLACK,TRIM2#
main62513-0K250-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
main62513-0K250-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH),BLACK,TRIM2#
main62513-KK010-C0i202109-202301
BLACK,TRIM2#
main62513-KK060-C0i202109-202301
BLACK,TRIM2#
62514APANEL, QUARTER TRIM, LOWER LH
main62514-0K100-C0i202109-202301
BLACK,TRIM2#
main62514-0K100-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT,BLACK,TRIM2#
main62514-0K110-C0i202108-202207
BLACK,TRIM2#
main62514-0K250-C0i202109-202301
BLACK,TRIM2#
main62514-0K250-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
main62514-0K250-C0i202109-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH),BLACK,TRIM2#
main62514-KK010-C0i202109-202301
BLACK,TRIM2#
main62514-KK060-C0i202109-202301
BLACK,TRIM2#
62515CLIP, QUARTER INSIDE TRIM
main90467-10167i¥90202108-202207
main90467-T0021i202109-202301
64261CGARNISH, BACK PANEL, UPPER
main64261-0K090-B0i202108-202207
LT.GRAY,TRIM2#
main64261-KK010-B0i202109-202301
LT.GRAY,TRIM2#
main64261-KK050-B0i202109-202301
LT.GRAY,TRIM2#
64271CTRIM, BACK PANEL
main64271-0K110-C0i202109-202201
BLACK,TRIM2#
main64271-0K250i202109-202301
main64271-0K280i202109-202301
main64271-0K300i¥7,100202108-202207
main64271-0K350-C0i202109-202301
BLACK,TRIM2#
main64271-0K370i202109-202301
main64271-0K440-C0i202201-202301
BLACK,TRIM2#
main64271-0K440-C0i202201-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH)&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR)),BLACK,TRIM2#
main64271-0K440-C0i202201-202301
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR)),BLACK,TRIM2#
64271DCLIP(FOR BACK PANEL TRIM)
main90467-10188i¥80202109-202301
NO.1
main90467-T0004-C1i202108-202301
BLACK
main90467-T0021i202109-202301
NO.2
64275CCOVER, BACK PANEL TRIM
main64275-0K030-B0i202108-202301
LT.GRAY,TRIM2#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-0K030-C0i202108-202207
BLACK,TRIM2#
main67911-KK010-C0i202109-202301
BLACK,TRIM2#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-0K010-C0i202108-202207
BLACK,TRIM2#
main67912-KK010-C0i202109-202301
BLACK,TRIM2#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-0K150-C0i202108-202207
BLACK,TRIM2#
main67913-KK010-C0i202109-202301
BLACK,TRIM2#
main67913-KK020-C0i202109-202301
BLACK,TRIM2#
main67913-KK030-C0i202109-202301
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-0K150-C0i202108-202207
BLACK,TRIM2#
main67914-KK010-C0i202109-202301
BLACK,TRIM2#
main67914-KK020-C0i202109-202301
BLACK,TRIM2#
main67914-KK030-C0i202109-202301
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-0K030-C0i202108-202207
BLACK,TRIM2#
main67915-KK010-C0i202109-202301
BLACK,TRIM2#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-0K030-C0i202108-202207
BLACK,TRIM2#
main67916-KK010-C0i202109-202301
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-0K150-C0i202108-202207
BLACK,TRIM2#
main67917-KK010-C0i202109-202301
BLACK,TRIM2#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-0K150-C0i202108-202207
BLACK,TRIM2#
main67918-KK010-C0i202109-202301
BLACK,TRIM2#
7152
73223ACOVER, SEAT BELT RETRACTOR
main73223-KK020i¥1,820202108-202301
9046718017
main90467-18017¥180
90467T0021
main90467-T0021

48 parts on this diagram · 3 diagrams in section
