Toyota HILUX (DCB/SCB/XTR) — INJECTION NOZZLE

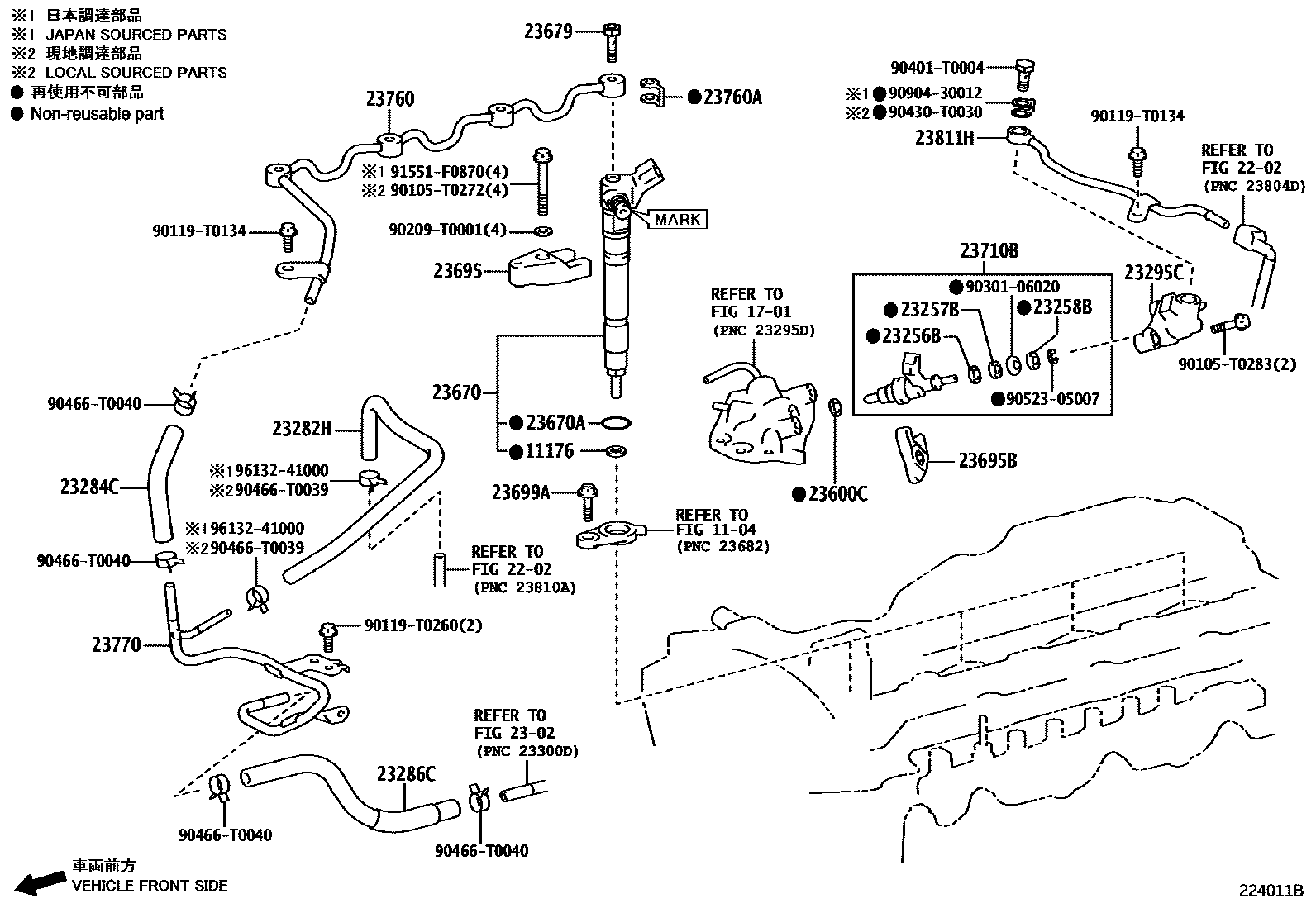

Parts diagram
1104
11176SEAT, INJECTION NOZZLE
main11176-0E010i202108-202301
(L)
main11176-33010i¥300202108-202301
(J)
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
main23256-74010i¥190202108-202301
23257BRING, FUEL INJECTOR BACK-UP, NO.2
main23257-74010i¥190202108-202301
23258BRING, FUEL INJECTOR BACK-UP, NO.3
main23258-28011i¥210202108-202301
23282HHOSE, FUEL, NO.4
main23282-0E012i¥800202108-202207
THA SOURCED PARTS
main23282-0E012i¥800202108-202207
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main23282-0E022i202108-202207
IND SOURCED PARTS
main23282-0E022i202108-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
main23282-0E030i¥1,130202108-202207
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main23282-0E030i¥1,130202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main23282-0E030i¥1,130202108-202207
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main23282-0E030i¥1,130202108-202301
23284CHOSE, FUEL, NO.5
main23284-0E010i202108-202301
THA SOURCED PARTS
main23284-0E020i202108-202207
IND SOURCED PARTS
main23284-0E020i202108-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
23286CHOSE, FUEL, NO.6
main23286-0E011i202108-202301
THA SOURCED PARTS
main23286-0E020i202108-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
main23286-0E020i202108-202207
IND SOURCED PARTS
23295CHOLDER, INJECTOR
main23296-0E010i202108-202301
23600CGASKET(FOR HOLDER & NOZZLE SET)
main90430-T0019i202108-202301
THA SOURCED PARTS
main90430-T0029i202108-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
main90430-T0029i202108-202207
IND SOURCED PARTS
23670INJECTOR ASSY
main23670-09460i¥50,400202108-202207
MARK 23670-0E070
main23670-09470i¥55,400202108-202207
MARK 23670-0E060
main23670-09500i¥55,400202207-202301
MARK 23670-0E100
sub23670-09560¥50,400
main23670-09510i202108-202208
MARK 23670-0E110
sub23670-09540
main23670-09540i202207-202301
MARK 23670-08020
23670ARING, O(FOR INJECTOR ASSY)
main96721-19017i¥160202108-202301
23679SCREW, INJECTOR FOLLOW
main90401-T0007i202108-202301
(L)
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-0E010i202108-202301
(L)
main23695-11010i¥990202108-202301
(J)
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-0E020i202108-202301
(L)
main23695-28010i¥550202108-202301
(J)
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-0E010i202108-202301
THA SOURCED PARTS
main23699-0E020i202108-202208
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
main23699-0E020i202108-202208
IND SOURCED PARTS
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
main23710-11010i¥26,900202108-202301
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-0E011i¥3,300202108-202301
THA SOURCED PARTS
main23760-0E020i202108-202207
IND SOURCED PARTS
main23760-0E020i202108-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
23760AGASKET
main90430-T0017i202108-202301
(L)
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23770-0E011i¥2,460202108-202301
THA SOURCED PARTS
main23770-0E021i202108-202207
RUSSIA&CUSTOM UNION SPEC
23811HPIPE, FUEL, NO.1
main23811-08010i¥2,070202111-202301
THA SOURCED PARTS
main23811-08020i202204-202207
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
main23811-08020i202204-202207
IND SOURCED PARTS
main23811-0E010i¥2,690202108-202110
THA SOURCED PARTS
sub23811-08010¥2,070
main23811-0E020i202108-202203
IND SOURCED PARTS
sub23811-08020
main23811-0E020i202108-202203
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
sub23811-08020
90105T0272
main90105-T0272
90105T0283
main90105-T0283
90119T0134
main90119-T0134¥90
90119T0260
main90119-T0260
90209T0001
main90209-T0001
9030106020
main90301-06020¥170
90401T0004
main90401-T0004
90430T0030
main90430-T0030
90466T0039
main90466-T0039¥80
90466T0040
main90466-T0040¥100
9052305007
main90523-05007¥0
9090430012
main90904-30012¥360
91551F0870
main91551-F0870¥100
9613241000
main96132-41000¥80

38 parts on this diagram · 1 diagram in section
