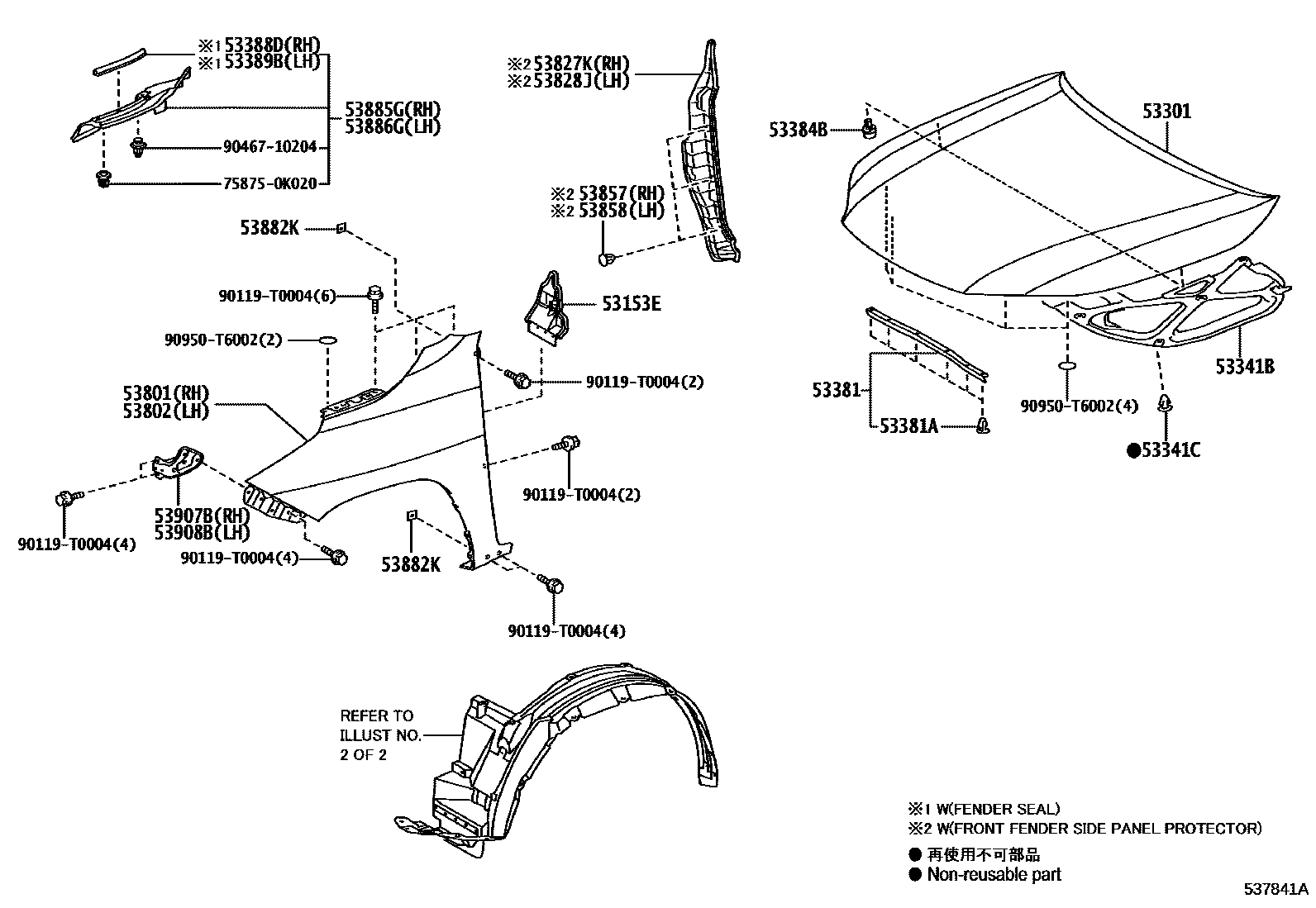

Toyota HILUX (DCB/SCB/XTR) — HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-0K010iGUN12#,135..THP¥1,170202108-202207

main53153-0K020iGUN12#,135..(DCB,XTR)..SAP202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

main53153-0K100iGUN125,135..SCB202109-202301

53301HOOD SUB-ASSY

main53301-KK011iGUN125,135..SCB¥48,600202109-202301

main53301-KK050iGUN12#,135..THP¥48,600202108-202207

main53301-KK050iGUN12#,135..(DCB,XTR)..SAP¥48,600202108-202301

53341BINSULATOR, HOOD

main53341-0K250iGUN12#,135..THP¥11,900202108-202207

sub53341-0K251¥10,800

main53341-0K270iGUN12#,135..SAP202109-202301

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iGUN12#,135..THP202108-202207

main90467-T0014iGUN12#,135..SAP202108-202301

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iGUN12#,135..THP¥720202108-202207

main53381-0K120iGUN12#,135..SAP202109-202301

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGUN12#,135..THP202108-202207

main90467-T0013iGUN12#,135..SAP202108-202301

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN12#,135..SAP¥100202108-202301

main53384-0K040iGUN12#,135..THP¥100202108-202207

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K010iGUN12#,135..THP¥220202108-202207

main53388-0K020iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K010iGUN12#,135..THP¥220202108-202207

main53388-0K020iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53801FENDER SUB-ASSY, FRONT RH

main53811-KK010iGUN135..SCB..L202109-202301

main53811-KK020iGUN125,135..SCB..S202109-202301

main53811-KK030iGUN12#,135..(DCB,XTR)..SAP¥34,800202108-202301

main53811-KK030iGUN12#,135..THP¥34,800202108-202207

53802FENDER SUB-ASSY, FRONT LH

main53812-KK010iGUN135..SCB..L202109-202301

main53812-KK020iGUN125,135..SCB..S202109-202301

main53812-KK030iGUN12#,135..(DCB,XTR)..SAP202109-202301

TIRE & DISC WHEEL-265/65R17 STEEL

sub53812-KK050¥25,800

main53812-KK050iGUN12#,135..THP¥25,800202108-202207

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGUN12#,135..THP¥2,540202108-202207

main53827-0K020iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGUN12#,135..THP¥2,540202108-202207

main53828-0K020iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06030iGUN12#,135..THP202108-202207

(L)

main53857-0K010iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

main53857-47011iGUN12#,135..THP¥60202108-202207

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06030iGUN12#,135..THP202108-202207

(L)

main53857-0K010iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

main53857-47011iGUN12#,135..THP¥60202108-202207

(J)

53882KSEAL, FRONT FENDER

main53882-33060iGUN12#,135..THP¥60202108-202207

main53882-33060iGUN12#,135..SAP¥60202108-202301

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K100iGUN12#,135..THP¥2,360202108-202207

main53807-0K120iGUN135..XTR..IV3;GUN125,135..(DCB,SCB)..SAP..(L,S)202109-202301

main53807-0K130iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K100iGUN12#,135..THP¥2,270202108-202207

main53808-0K120iGUN135..XTR..IV3;GUN125,135..(DCB,SCB)..SAP..(L,S)202109-202301

main53808-0K130iGUN126,135..SAP..H;GUN125..DCB..SAP..H;GUN125,135..XTR..(H,S)202109-202301

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53907-KK010iGUN125,135..SCB202109-202301

main53907-KK020iGUN12#,135..THP¥1,590202108-202207

main53907-KK020iGUN12#,135..(DCB,XTR)..SAP¥1,590202108-202301

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53908-KK010iGUN125,135..SCB202109-202301

main53908-KK020iGUN12#,135..THP¥1,590202108-202207

main53908-KK020iGUN12#,135..(DCB,XTR)..SAP¥1,590202108-202301

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020¥210

90119T0004

main90119-T0004

9046710204

main90467-10204¥90

90950T6002

main90950-T6002

24 parts on this diagram · 2 diagrams in section
