Toyota HILUX (DCB/SCB/XTR) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1AUTO HEATER CONTROL 0002 1MANUAL HEATER CONTROL 0003 1MANUAL HEATER CONTROL 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR 0007 1SENSOR

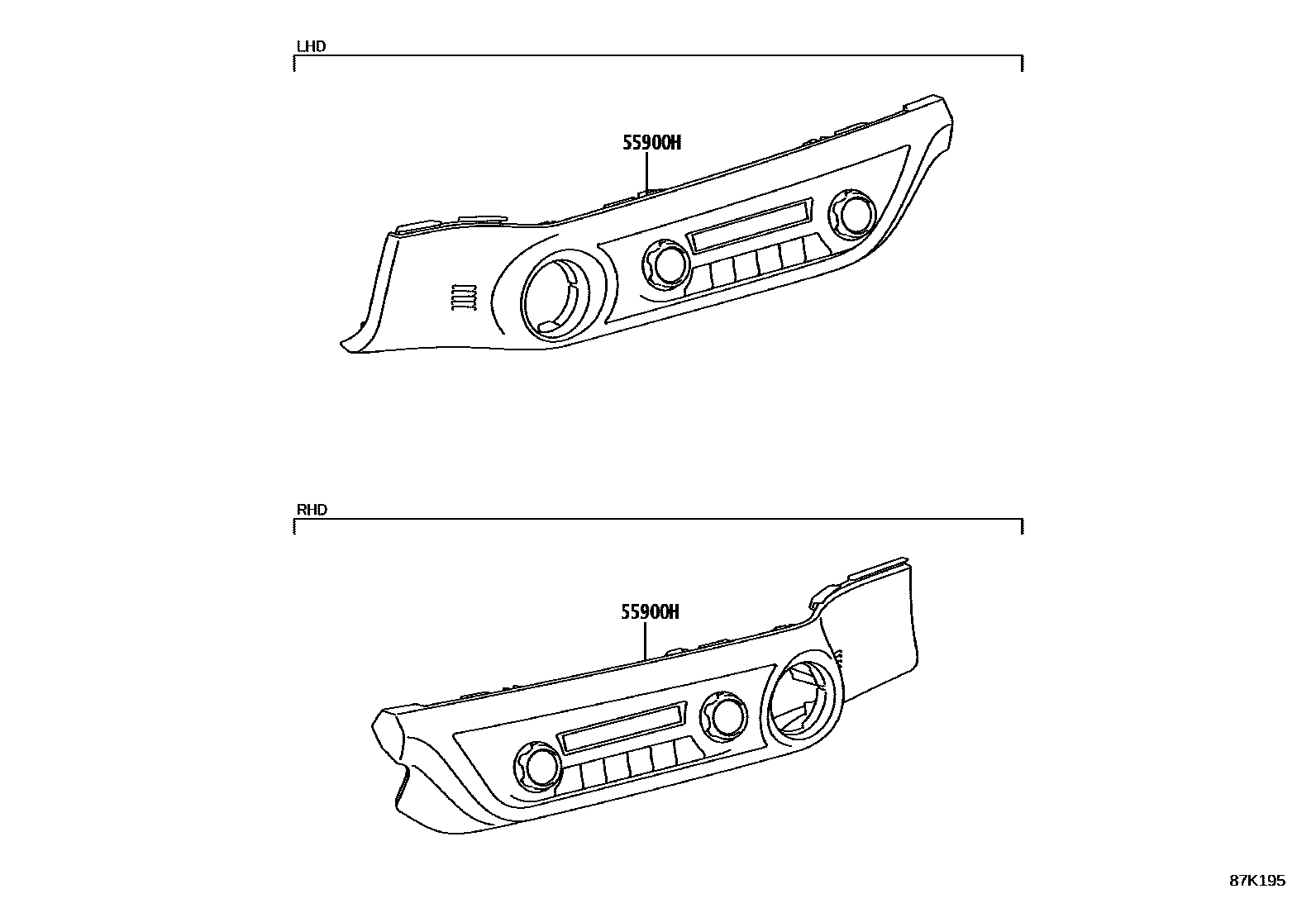

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0KQ00-C0iGUN12#..RHD..H202109-202301

BLACK,TRIM2#

main55900-0KQ40-C0iGUN126..LHD..SAP;GUN125..LHD..DCB..SAP..H202108-202301

FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#

main55900-0KQ40-C0iGUN135..H;GUN125..XTR..H202108-202301

BLACK,TRIM2#

main55900-0KQ40-C0iGUN125..THP..S202108-202207

BLACK,TRIM2#

main55900-0KQ40-C0iGUN126..THP;GUN125..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#

1 parts on this diagram · 7 diagrams in section
