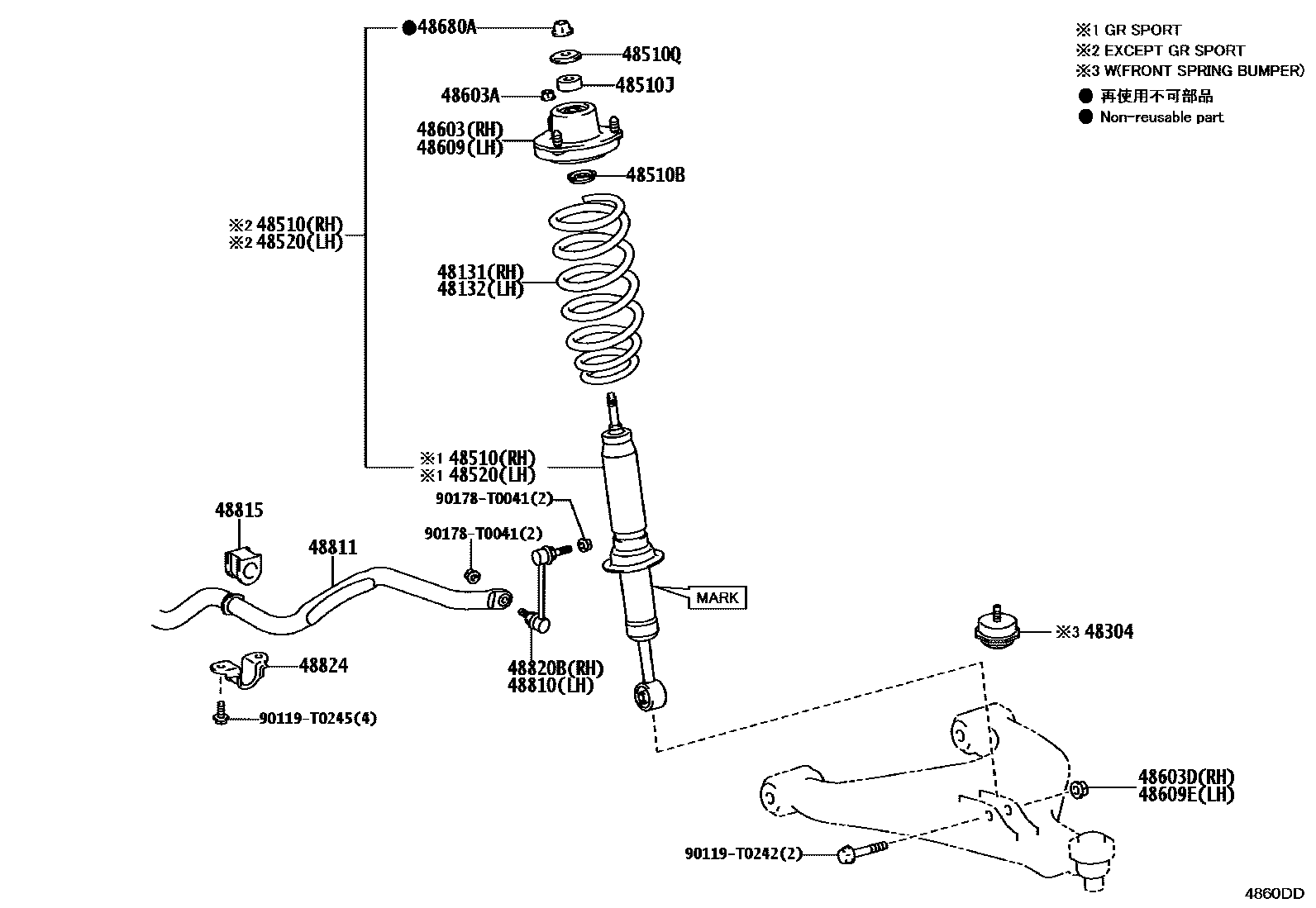

Toyota HILUX (DCB/SCB/XTR) — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KL41iGUN135..THP202108-202207

main48131-0KL51iGUN12#..THP202108-202207

main48131-0KM50iGUN135..SCB,XTR202109-202301

main48131-0KM70iGUN125..SCB;GUN126..XTR;GUN135..DCB..SAP202109-202301

main48131-0KM80iGUN126..DCB..SAP;GUN125..(DCB,XTR)..SAP202109-202301

48132SPRING, FRONT COIL, LH

main48131-0KL51iGUN135..THP202108-202207

main48131-0KM60iGUN135..SCB,XTR202109-202301

main48131-0KM70iGUN125..RHD..SCB202109-202301

main48131-0KM80iGUN126..XTR;GUN125..LHD..SCB;GUN135..DCB..SAP;GUN12#..RHD..(DCB,XTR)202109-202301

main48131-0KS71iGUN12#..THP202108-202207

main48131-0KU00iGUN126..LHD..DCB..SAP;GUN125..LHD..(DCB,XTR)..SAP202109-202301

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041iGUN12#,135..THP¥1,540202108-202301

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z207iGUN12#,135..LHD..(DCB,XTR)..SAP202109-202301

MARK 48510-0KD40,1 TON PAY LOAD PACKAGE

main48510-8Z207iGUN125,135..SCB202109-202301

MARK 48510-0KD40

main48510-8Z451iGUN12#,135..(DCB,XTR)..SAP202109-202301

MARK 48510-0K800

main48510-8Z456iGUN12#,135..THP¥16,000202108-202207

MARK 48510-0K760

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-F2002iGUN12#,135..SAP202109-202301

main90948-T2003iGUN12#,135..THP202108-202207

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013iGUN12#,135..SAP¥300202109-202301

MADE IN THAILAND

main90948-T1013iGUN12#,135..THP¥300202108-202207

main90948-T1015iGUN12#,135..SAP202109-202301

MADE IN INDIA

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-F2003iGUN12#,135..SAP202109-202301

main90948-T2004iGUN12#,135..THP202108-202207

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z207iGUN125,135..SCB202109-202301

MARK 48510-0KD40

main48510-8Z207iGUN125,135..SCB202109-202301

MARK 48510-0KD40,1 TON PAY LOAD PACKAGE

main48510-8Z451iGUN12#,135..(DCB,XTR)..SAP202109-202301

MARK 48510-0K800

main48510-8Z456iGUN12#,135..THP¥16,000202108-202207

MARK 48510-0K760

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN12#,135..THP¥2,910202108-202207

main48609-0K120iGUN12#,135..SAP202109-202301

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iGUN12#,135..THP202108-202301

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN12#,135..THP202108-202301

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN12#,135..THP¥2,910202108-202207

main48609-0K120iGUN12#,135..SAP202109-202301

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGUN12#,135..SAP202108-202301

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iGUN12#,135..THP202108-202301

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN12#,135..THP¥4,390202108-202301

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN12#,135..THP¥14,200202108-202207

main48811-0K180iGUN12#,135..SAP202109-202301

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090iGUN12#,135..THP¥850202108-202301

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGUN12#,135..THP¥4,390202108-202301

48824BRACKET, STABILIZER, FRONT

main48824-KK010iGUN12#,135..THP¥1,170202108-202301

90119T0242

main90119-T0242¥310

90119T0245

main90119-T0245¥120

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
