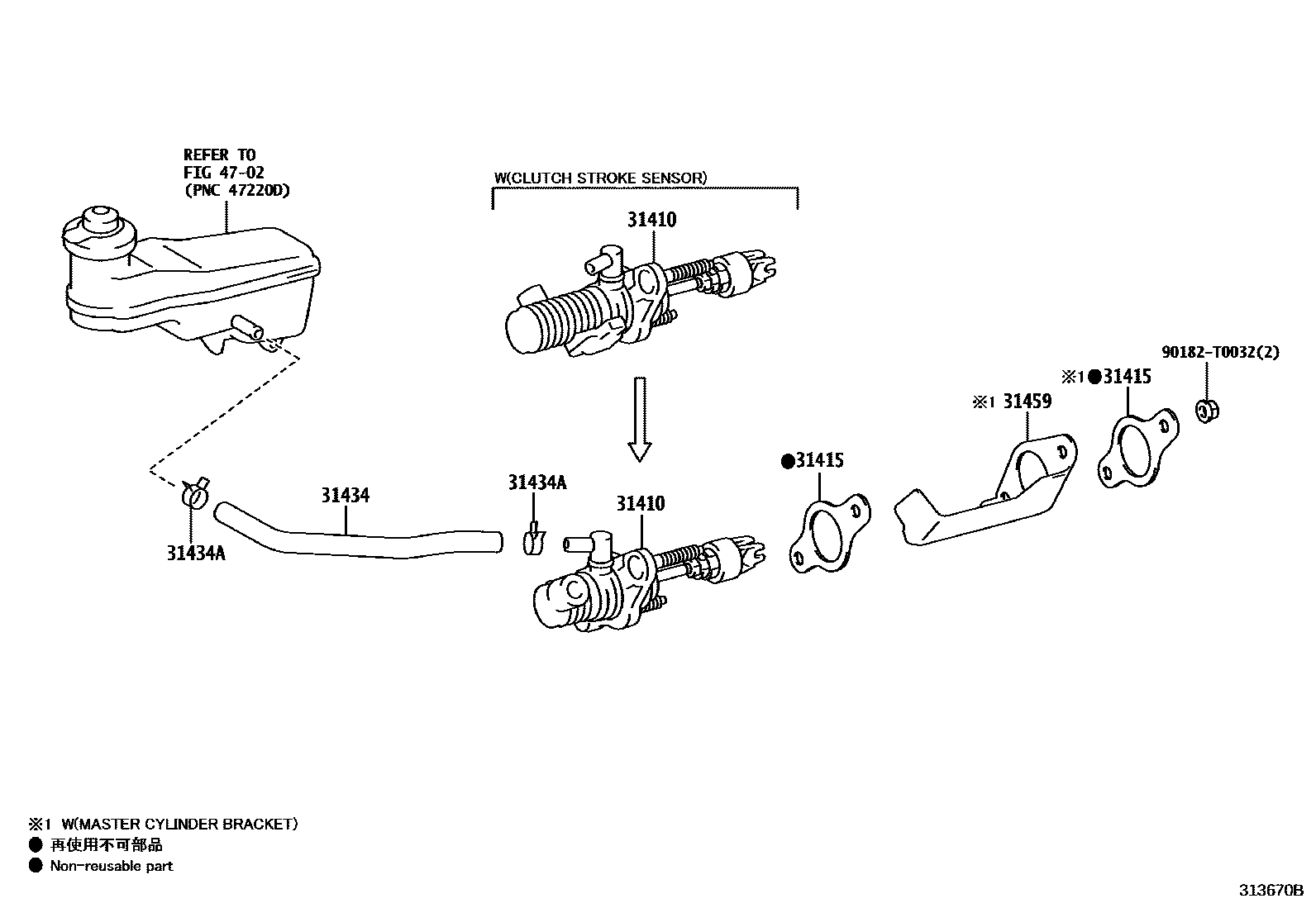

Toyota HILUX (DCB/SCB/XTR) — CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K071iGUN12#,135..SAP..6F202108-202301

main31420-0K071iGUN125,135..THP..6F202108-202207

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN125,135..THP..6F¥80202108-202207

main31415-0K010iGUN12#,135..LHD..SAP..6F¥80202108-202301

main31415-0K010iGUN12#..RHD..6F¥80202109-202301

31434TUBE, CLUTCH RESERVOIR

main31434-0K091iGUN12#..RHD..6F202109-202301

main31434-0K111iGUN125,135..THP..6F202108-202207

main31434-0K111iGUN12#,135..LHD..SAP..6F202108-202301

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iGUN125,135..THP..6F202108-202207

main90466-T0015iGUN12#,135..SAP..6F202108-202301

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-71010iGUN12#..RHD..6F202109-202301

4702

90182T0032

main90182-T0032¥100

7 parts on this diagram · 1 diagram in section
