Toyota HILUX (DCB/SCB/XTR) — ARMREST & VISOR

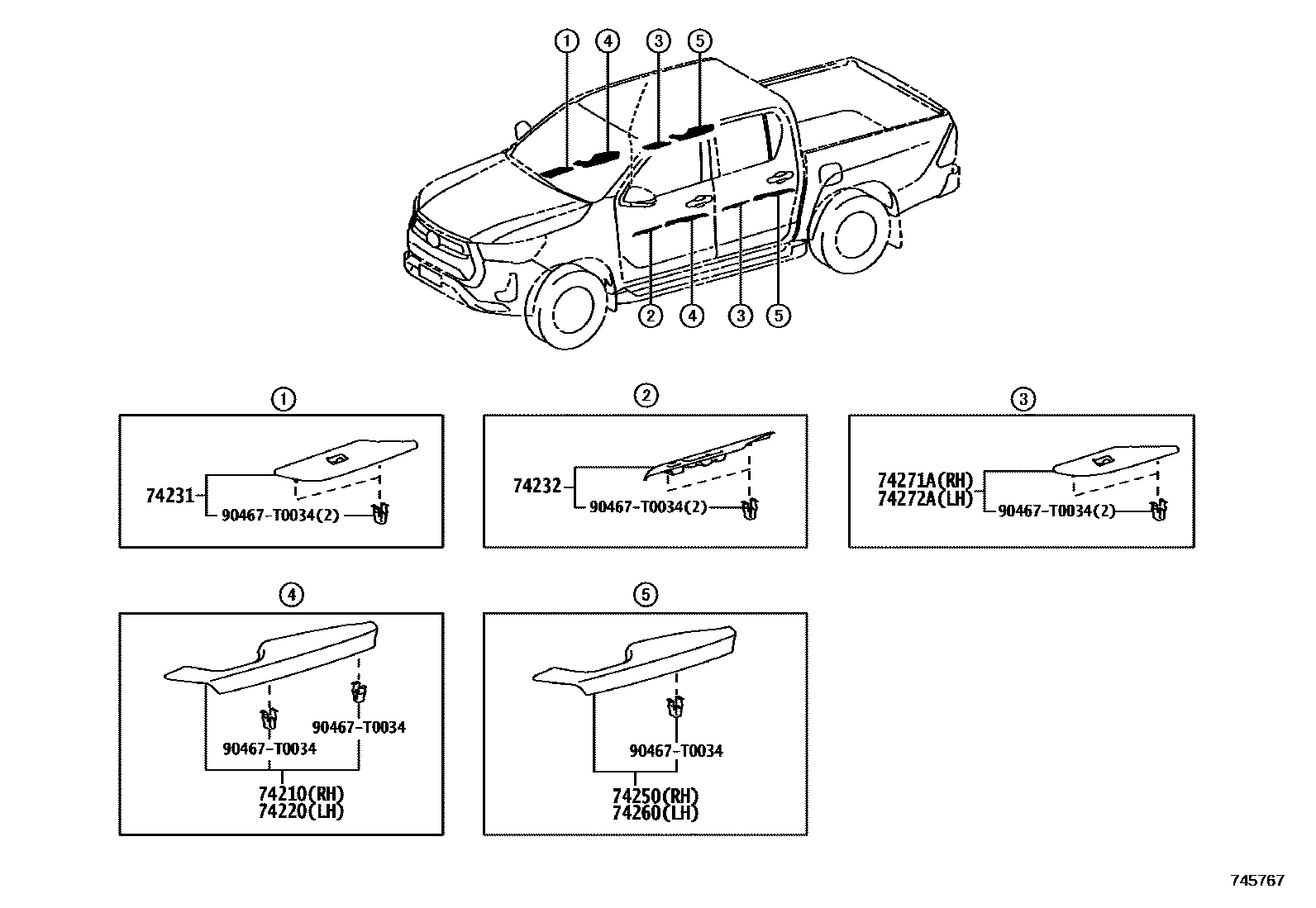

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-0K060-C3i202108-202207
BLACK,TRIM2#
main74210-0K230-C0i202109-202301
BLACK,TRIM2#
main74210-0K240i202212-202301
main74210-0K240-C2i202109-202212
BLACK,TRIM2#
main74210-0K260i202212-202301
main74210-0K260-C0i202109-202212
BLACK,TRIM2#
main74210-0K270-C3i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74210-0K270-C3i202109-202301
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-0K060-C3i202108-202207
BLACK,TRIM2#
main74220-0K230-C0i202109-202301
BLACK,TRIM2#
main74220-0K240i202212-202301
main74220-0K240-C2i202109-202212
BLACK,TRIM2#
main74220-0K260i202212-202301
main74220-0K260-C0i202109-202212
BLACK,TRIM2#
main74220-0K270-C3i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K270-C3i202109-202301
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K611i202108-202207
main74231-0K770i202109-202301
main74231-0K790i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SI
main74231-0K800i202109-202301
main74231-0K810i202109-202301
main74231-0KA90i202109-202301
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K591i202109-202301
main74232-0K651i202108-202207
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
main74232-0K671i202108-202207
main74232-0K770i202109-202301
main74232-0K790i202109-202301
main74232-0K800i202109-202301
main74232-0K810i202109-202301
main74232-0K820i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SI
74250ARMREST ASSY, REAR RH
main74250-0K020-C3i202108-202207
BLACK,TRIM2#
main74250-0K170i202212-202301
main74250-0K170-C0i202109-202212
BLACK,TRIM2#
main74250-0K180-C3i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74250-0K180-C3i202109-202301
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-0K020-C3i202108-202207
BLACK,TRIM2#
main74260-0K170i202212-202301
main74260-0K170-C0i202109-202212
BLACK,TRIM2#
main74260-0K180-C3i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74260-0K180-C3i202109-202301
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K321i¥1,900202108-202207
main74271-0K390i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SI
main74271-0K400i202109-202301
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K321i¥1,900202108-202207
main74272-0K390i202109-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SI
main74272-0K400i202109-202301
90467T0034
main90467-T0034

9 parts on this diagram · 2 diagrams in section
