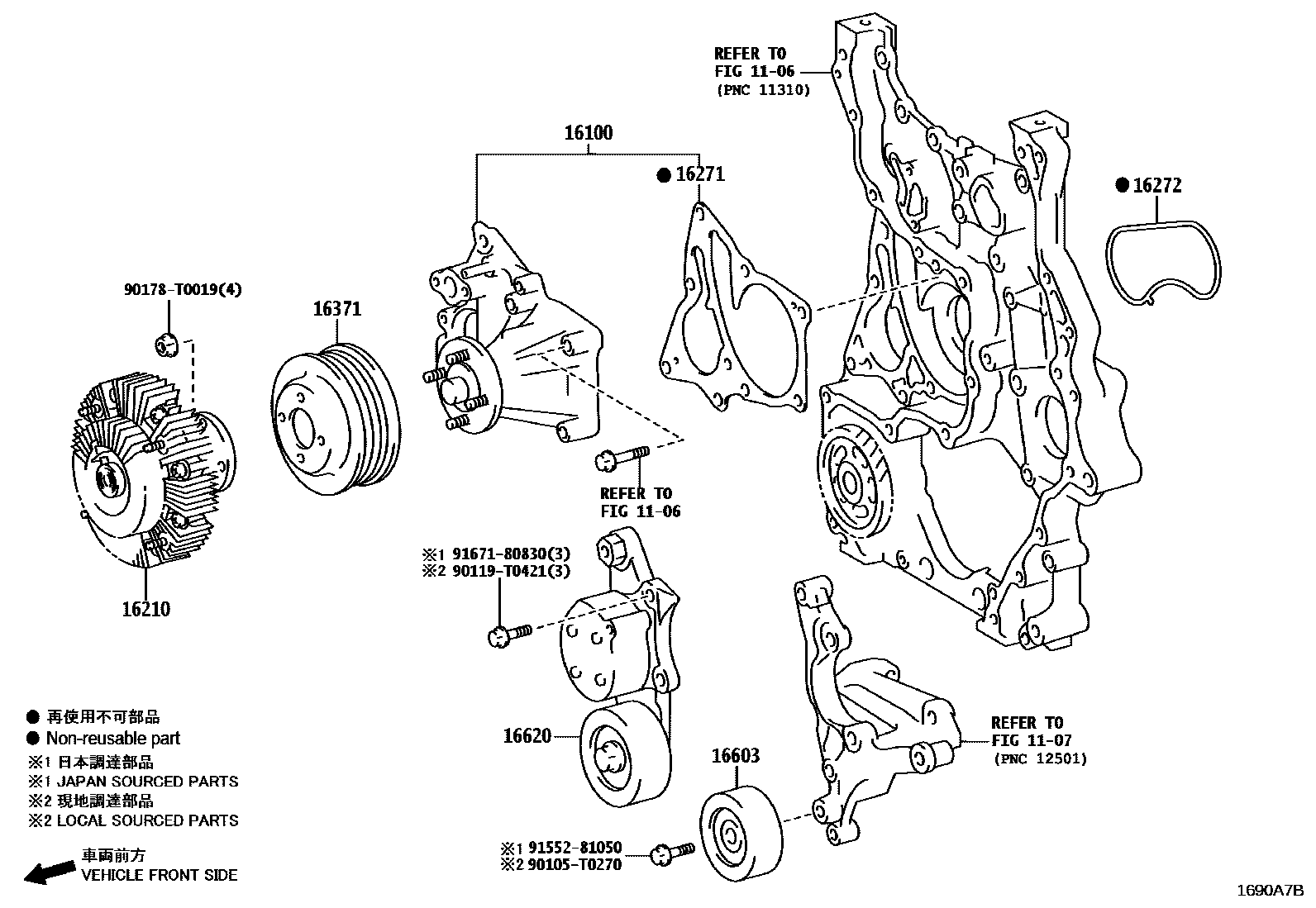

Toyota HILUX CHAMP — WATER PUMP

0001 1 0002 1

1106

1107

16100PUMP ASSY, ENGINE WATER

main16100-09460i1TR..TGN110..PHL202312-202407

main16100-09711i2GD..GUN12#..PHL202312-202407

16210COUPLING ASSY, FLUID

main16210-0C010i1TR..TGN110..PHL202312-202407

main16210-0E020i2GD..GUN12#..PHL¥23,700202312-202407

16271GASKET, WATER PUMP

main16271-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16272GASKET, WATER PUMP, NO.2

main16272-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16371PULLEY, FAN

main16371-0C010i1TR,2TR..TGN11#..THAI202312-202407

main16371-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0C013i2GD..GUN12#..PHL¥5,300202312-202407

main16603-0E010i1TR..TGN110..PHL202312-202407

(L)

main16603-31050i1TR,2TR..TGN11#..THAI¥4,760202312-202407

(J)

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

90105T0270

main90105-T0270

90119T0421

main90119-T0421

90178T0019

main90178-T0019

9155281050

main91552-81050¥120

9167180830

main91671-80830¥80

14 parts on this diagram · 2 diagrams in section
