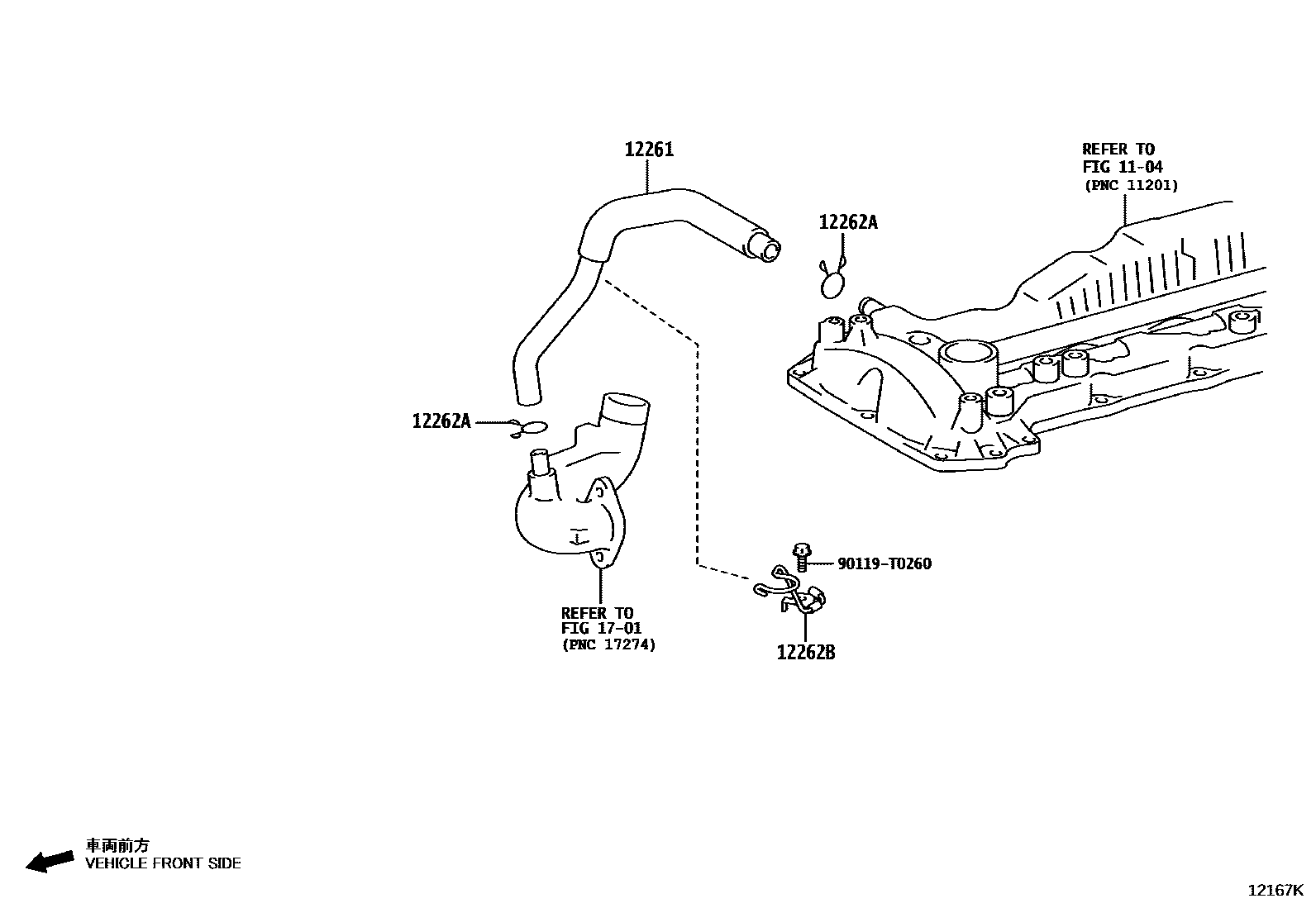

Toyota HILUX CHAMP — VENTILATION HOSE

0001 1 0002 1

1104

12261HOSE, VENTILATION

main12261-0C040i1TR..TGN110..PHL202312-202407

main12261-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

12262HOSE, VENTILATION, NO.2

main12262-0C060i1TR..TGN110..PHL202312-202407

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005i2GD..GUN12#..PHL¥120202312-202407

main90466-T0027i1TR..TGN110..PHL202312-202407

(L),NO.1

main90466-T0075i1TR..TGN110..IDN202312-202407

(L),NO.2

main90467-21004i1TR..TGN110..IDN¥130202312-202407

(J),NO.1

main90467-24038i1TR..TGN110..PHL¥180202312-202407

(J),NO.2

12262BCLAMP(FOR VENTILATION HOSE)

main16581-11040i2GD..GUN11#,12#..IDN,LA,THAI¥200202312-202407

1701

90119T0260

main90119-T0260

7 parts on this diagram · 2 diagrams in section
