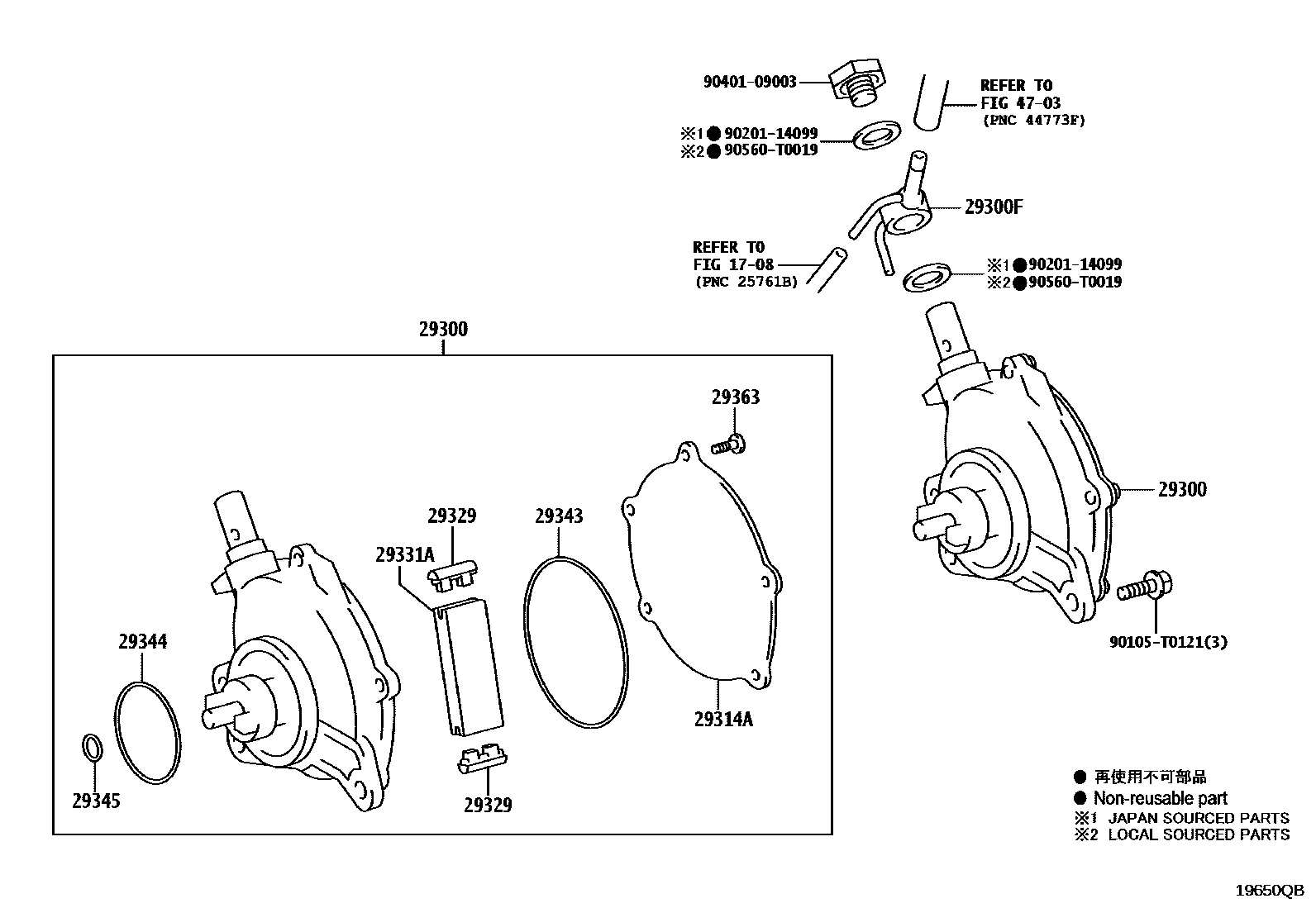

Toyota HILUX CHAMP — VACUUM PUMP

1708

29300PUMP ASSY, VACUUM

main29300-08010i2GD..GUN12#..PHL202401-202407

(L),*272

main29300-08010i2GD..GUN11#,12#..IDN,LA,THAI202401

(L),*272

main29300-0E011i2GD..GUN110,12#..LA,PHL,THAI¥19,000202312-202401

(L),*272

sub29300-08010

main29300-35010i2GD..GUN12#..PHL¥17,300202312-202407

(J),*272

main29300-35010i2GD..GUN11#,12#..IDN,LA,THAI¥17,300202312

(J),*272

29300FUNION

main90405-T0005i2GD..GUN12#..PHL202312-202407

main90405-T0005i2GD..GUN110,12#..LA,THAI202312

main90405-T0005i2GD..GUN11#..IDN202409

29314ACOVER, END

main29314-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29314-11020i2GD..GUN110,12#..LA,PHL,THAI¥1,080202312-202401

(J),*272

29329CAP, VACUUM PUMP VANE

main29329-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29329-37010i2GD..GUN110,12#..LA,PHL,THAI¥200202312-202401

(J),*272

29331AVANE, VACUUM PUMP

main29331-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29331-11020i2GD..GUN110,12#..LA,PHL,THAI¥990202312-202401

(J),*272

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29343-11020i2GD..GUN110,12#..LA,PHL,THAI¥710202312-202401

(J),*272

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29344-22011i2GD..GUN110,12#..LA,PHL,THAI¥130202312-202401

(J),*272

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

(L),*272

main29345-22011i2GD..GUN110,12#..LA,PHL,THAI¥130202312-202401

(J),*272

29363SCREW, HOLLOW VACUUM PUMP

main29363-0E010i2GD..GUN110,12#..LA,PHL,THAI¥220202312-202401

(L),*272

main29363-25010i2GD..GUN110,12#..LA,PHL,THAI¥200202312-202401

(J),*272

4703

90105T0121

main90105-T0121

9020114099

main90201-14099¥230

9040109003

main90401-09003¥160

90560T0019

main90560-T0019

15 parts on this diagram · 1 diagram in section
