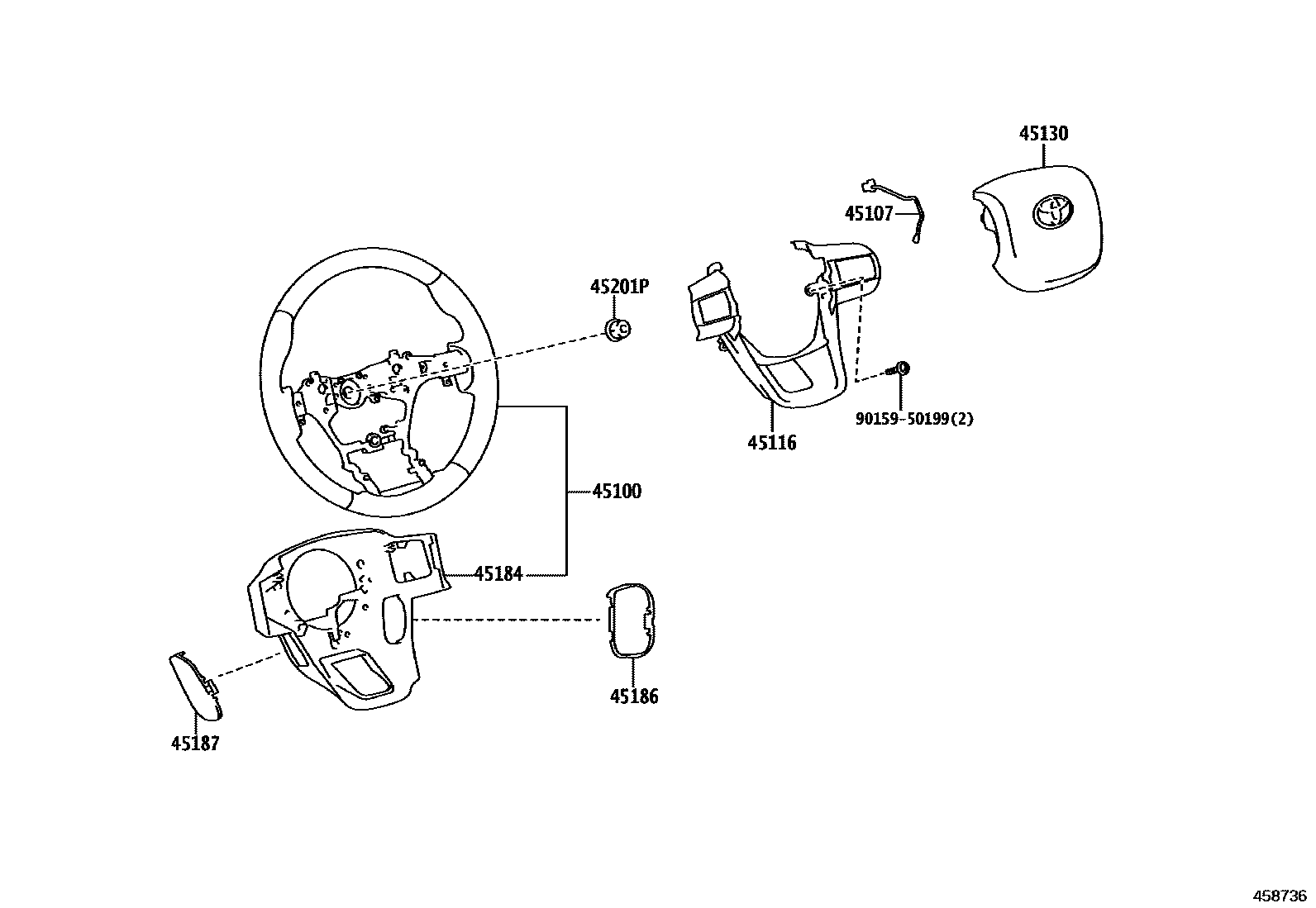

Toyota HILUX CHAMP — STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-02W30-C0iGUN122,TGN110..PHL202312-202407

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0K250-C0iGUN110,12#,TGN11#..THAI202312-202407

3-SPOKE,URETHANE,BLACK,TRIM2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-0K030iGUN11#,TGN110..IDN202312-202407

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-0K030-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-02610-C0iGUN122,TGN110..PHL202312-202407

BLACK,TRIM2#

main45130-0K270-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02370-C0iGUN122,TGN110..PHL202312-202407

BLACK,TRIM2#

main45184-0K010-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02250-C0iGUN112,TGN110..(L,S)..IDN202312-202407

BLACK,TRIM2#

main45186-0K130-C0iGUN110,12#,TGN11#..THAI202312-202407

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0K050-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iGUN12#,TGN110..PHL¥130202312-202407

9015950199

main90159-50199¥70

9 parts on this diagram · 2 diagrams in section
