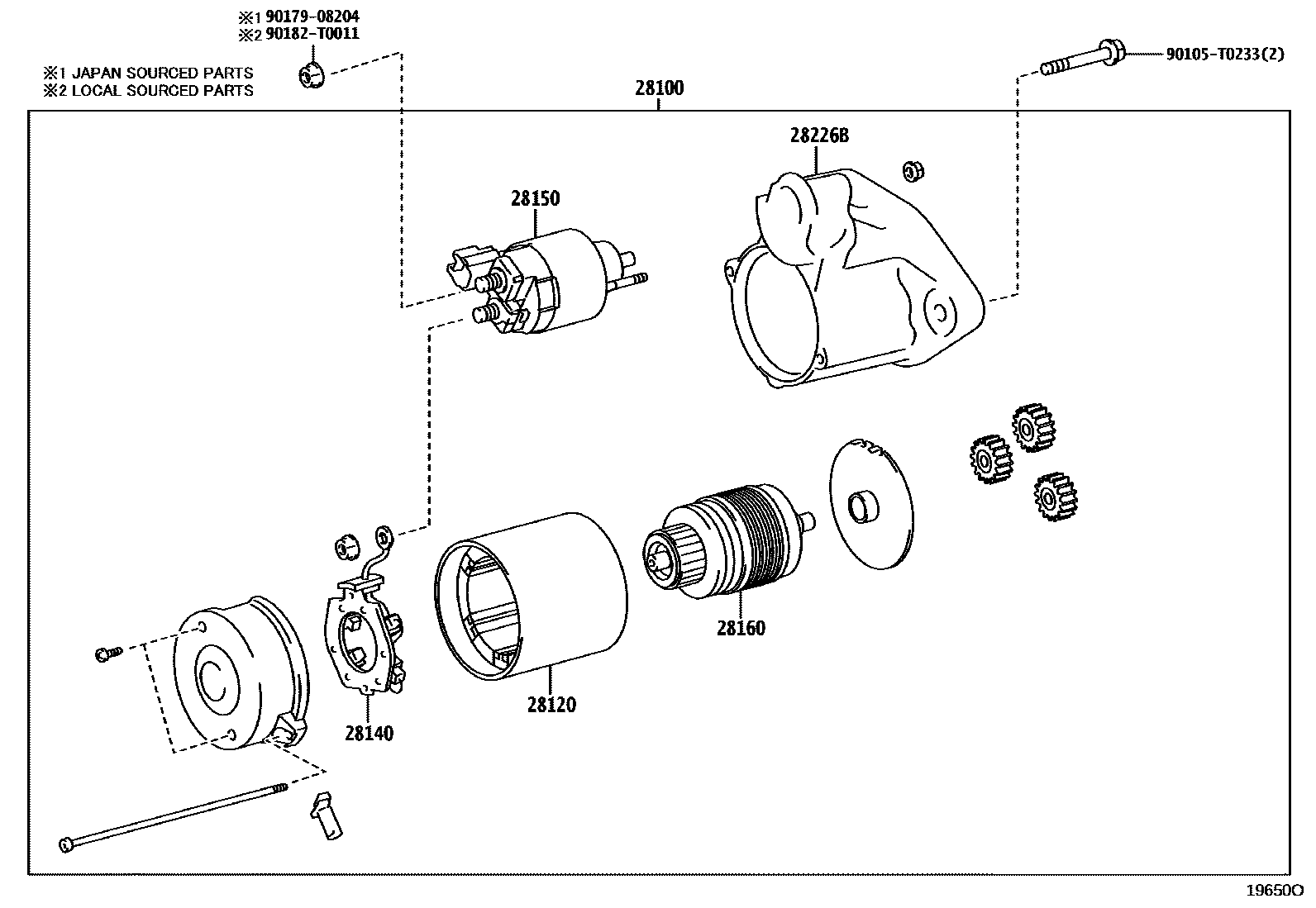

Toyota HILUX CHAMP — STARTER

0001 112V 1.6KW 0002 112V 2.0KW

28100STARTER ASSY

main28100-0C090i1TR..TGN110..PHL202312-202407

12V 1.6KW

main28100-0L180i2GD..GUN12#..PHL¥76,600202312-202407

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0C090i1TR..TGN110..PHL202312-202407

main28120-0L180i2GD..GUN110,12#..LA,THAI¥8,700202312-202407

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i1TR..TGN110..PHL202312-202407

main28140-0L180i2GD..GUN12#..PHL¥0202312-202407

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i1TR..TGN110..IDN202312-202407

(L)

main28150-0Y170i2GD..GUN12#..PHL202312-202407

main28150-40130i1TR..TGN110..PHL¥9,400202312-202407

(J)

28160ARMATURE ASSY, STARTER

main28160-0C090i1TR..TGN110..PHL202312-202407

main28160-0L180i2GD..GUN12#..PHL202312-202407

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C090i1TR..TGN110..IDN202312-202407

main28226-0L180i2GD..GUN110,12#..LA,THAI¥19,700202312-202407

90105T0233

main90105-T0233

9017908204

main90179-08204¥140

90182T0011

main90182-T0011¥110

9 parts on this diagram · 2 diagrams in section
