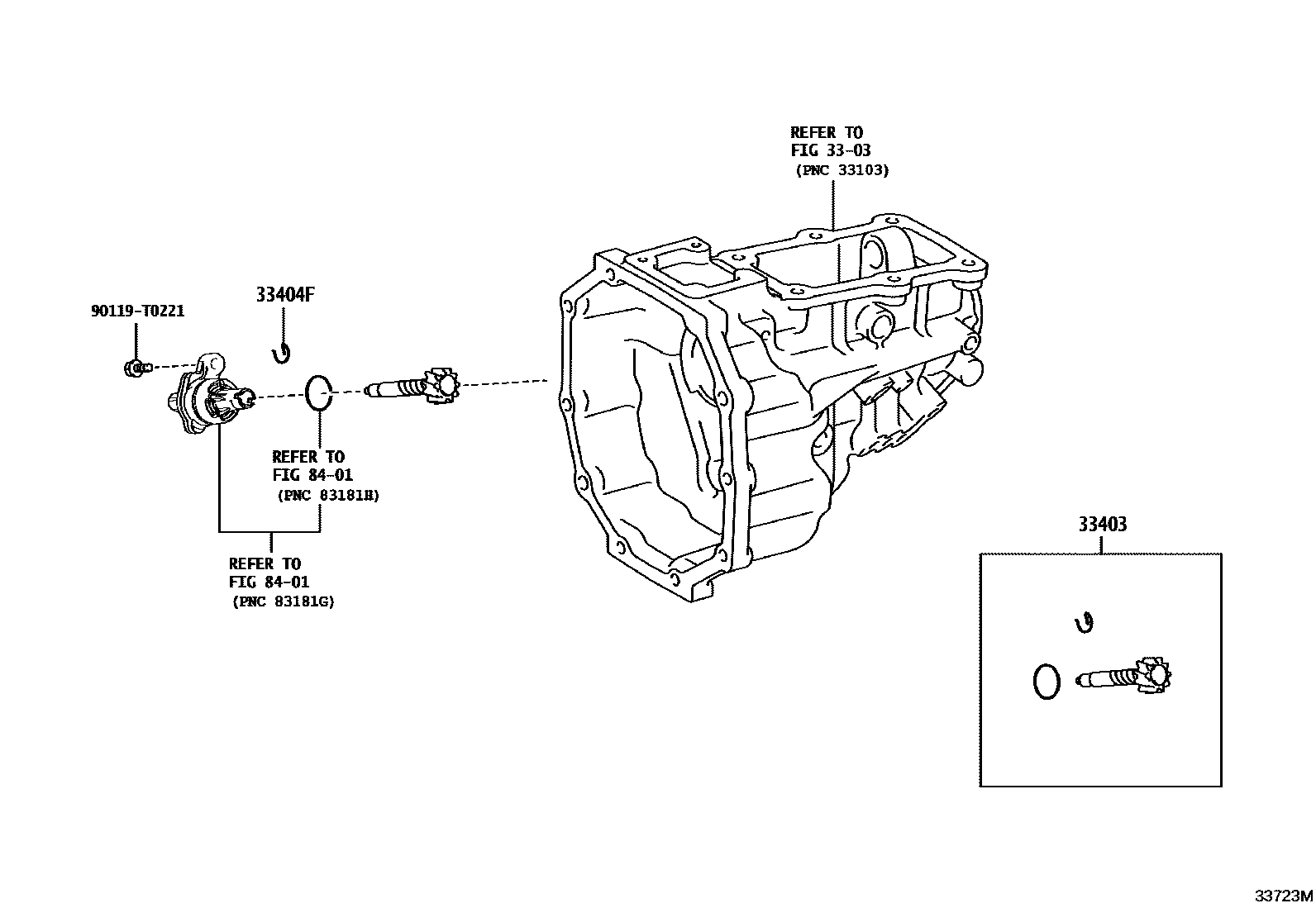

Toyota HILUX CHAMP — SPEEDOMETER DRIVEN GEAR (MTM)

3303

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29595iTGN110..(L,S)..IDN¥680202409

N=35,MARK 35:10

main33403-29595iTGN110..PHL¥680202312-202407

N=35,MARK 35:10

main33403-39345iGUN122..LA¥860202312

N=31,MARK 31:11

main33403-39345iGUN112..S¥860202409

N=31,MARK 31:11

main33403-39345iGUN122..PHL¥860202312-202407

N=31,MARK 31:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGUN122,TGN110..PHL¥90202312-202407

main90468-12005iGUN122..LA¥90202312

main90468-12005iGUN112,TGN110..(L,S)..IDN¥90202409

8401

90119T0221

main90119-T0221

5 parts on this diagram · 1 diagram in section
