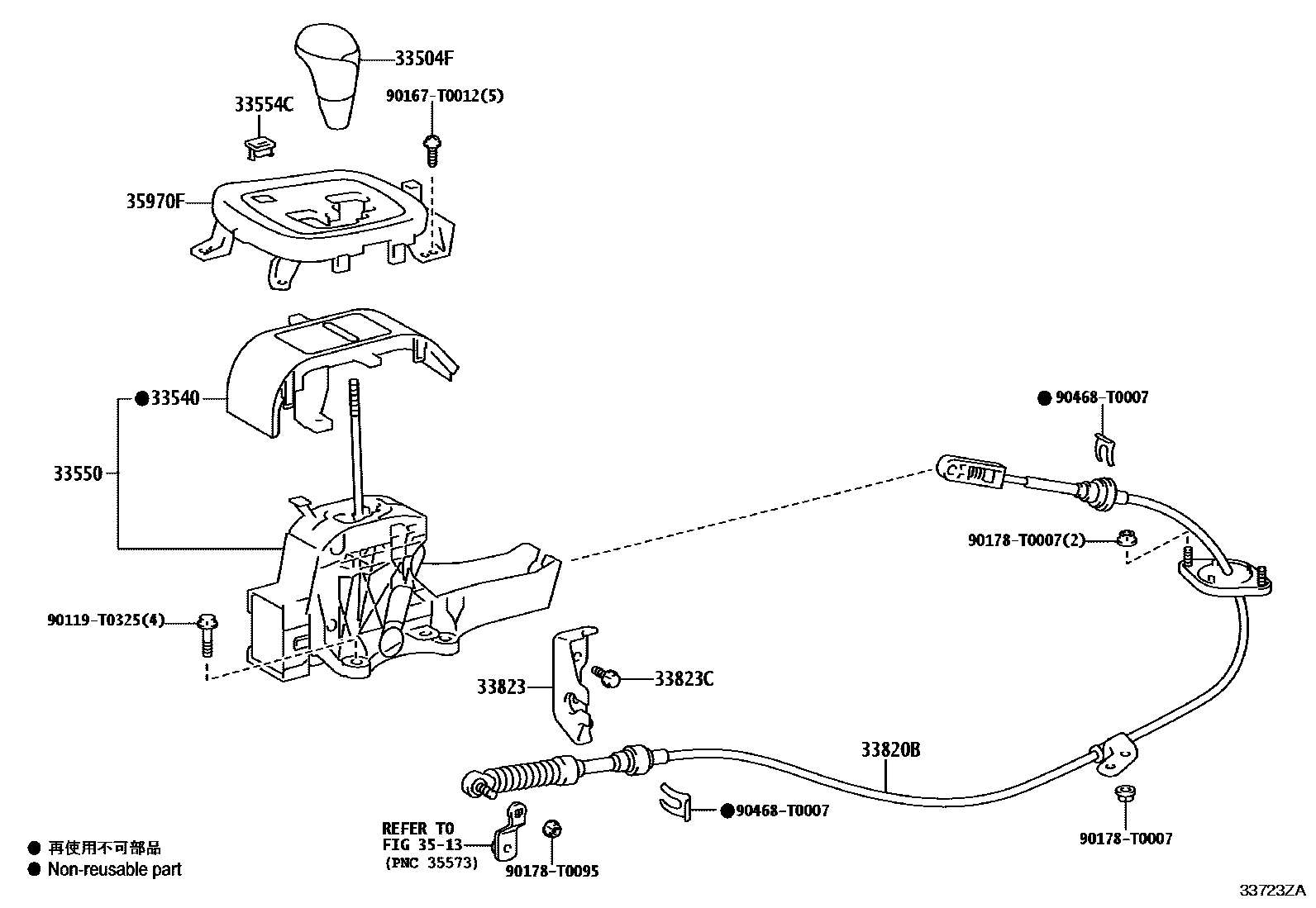

Toyota HILUX CHAMP — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K131-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

main33504-0K330-C0iGUN122,TGN110..PHL202312-202407

BLACK,TRIM2#

33540PLATE ASSY, SHIFT LEVER

main33540-0K040iGUN110,120,TGN111..RHD¥4,660202312

main33540-0K050iGUN120..IV3202312-202407

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0K160iGUN110,120,TGN111..RHD¥34,000202312

main33550-0K180iGUN120..IV3202312-202407

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-0K010iGUN110,120,TGN111..RHD¥70202312

main33554-0K020iGUN120..IV3¥70202312-202407

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0K171iGUN120..IV3¥8,000202312-202407

main33820-0K180iTGN111202312

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-KK010iGUN120..IV3¥590202312-202407

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-T0102iGUN120..IV3¥80202312-202407

3513

35970FHOUSING ASSY, POSITION INDICATOR

main35970-0K010iGUN110,120,TGN111..RHD¥9,100202312

main35970-0K250iGUN120..IV3202312-202407

90119T0325

main90119-T0325¥80

90167T0012

main90167-T0012

90178T0007

main90178-T0007¥80

90178T0095

main90178-T0095

90468T0007

main90468-T0007

14 parts on this diagram · 4 diagrams in section
