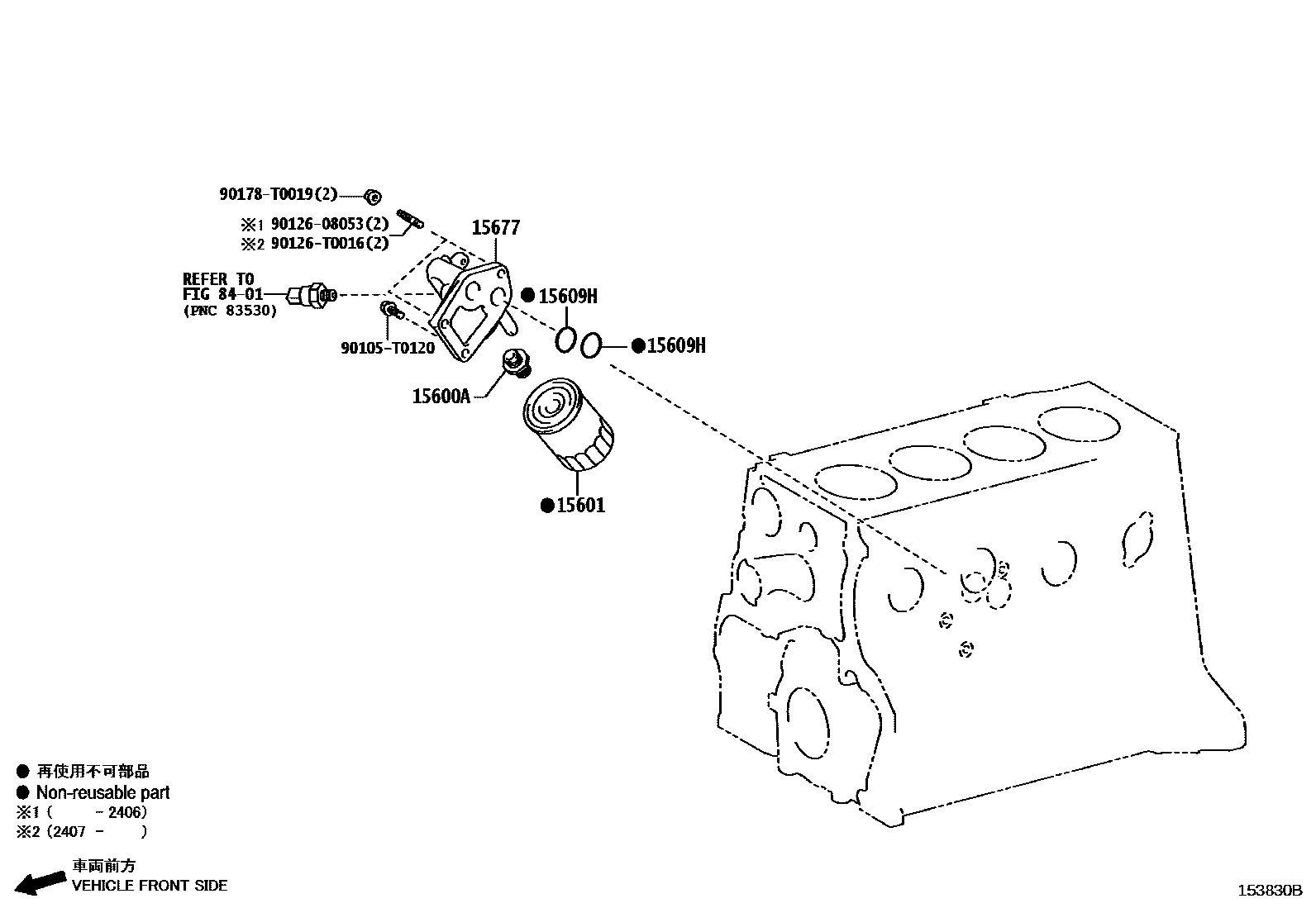

Toyota HILUX CHAMP — OIL FILTER

0001 1 0002 1 0003 1

15600AUNION(FOR OIL FILTER)

main90404-T0002i2GD..GUN12#..PHL202312-202407

15601FILTER SUB-ASSY, OIL

main90915-TB001i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0C010i1TR..TGN110..PHL202312-202407

MARK = 15609-0C010

main15609-0C020i2TR..TGN111202312

MARK = 15609-0C020

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-17017i2TR..TGN111¥170202312

(J)

main90301-68005i1TR..TGN110..IDN¥200202312-202407

(J)

main90301-T0023i1TR..TGN110..IDN202312-202407

(L)

main90301-T0028i2TR..TGN111202312

(L)

main90301-T0046i2GD..GUN12#..PHL202312-202407

15677BRACKET, OIL FILTER

main15677-0E010i2GD..GUN12#..PHL202312-202407

8401

90105T0120

main90105-T0120

9012608053

main90126-08053¥260

90126T0016

main90126-T0016

90178T0019

main90178-T0019

10 parts on this diagram · 3 diagrams in section
