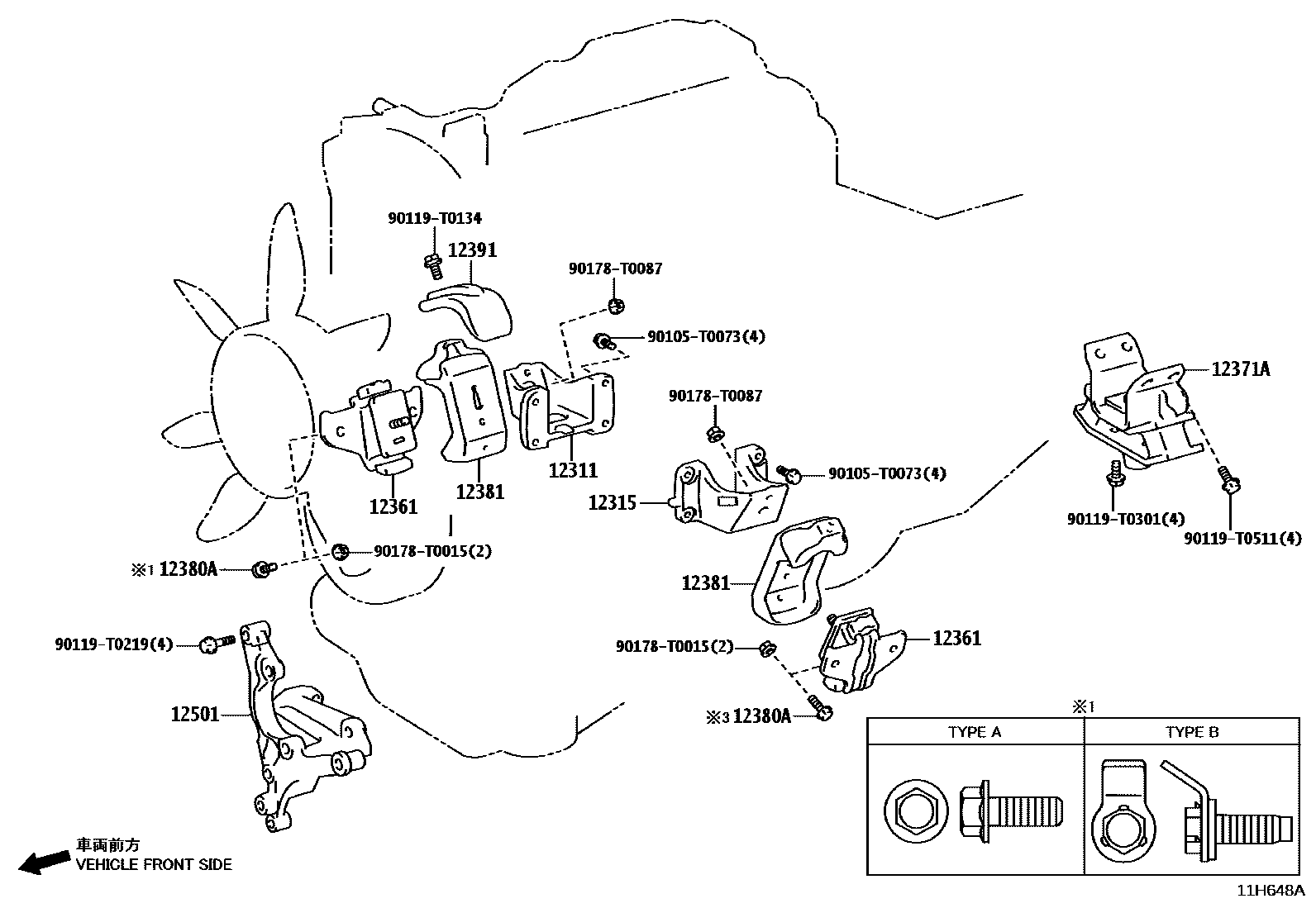

Toyota HILUX CHAMP — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C020i1TR..TGN110..PHL202312-202407

main12311-0E020i2GD..GUN12#..PHL202312-202407

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C020i1TR..TGN110..PHL202312-202407

main12315-0E010i2GD..GUN12#..PHL202312-202407

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L021i2GD..GUN12#..PHL¥4,140202312-202407

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C072i1TR..TGN110..IDN202312-202407

main12371-0C190i2TR..TGN111202312

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L052i2GD..GUN122..PHL202312-202407

main12371-0L200i2GD..GUN120..IV3202312-202407

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174i1TR..TGN110..PHL202312-202407

TYPE A:REFER ILLUST.

main90910-03003i2GD..GUN12#..PHL¥120202312-202407

TYPE B:REFER ILLUST.

12381STABILIZER, ENGINE MOUNTING

main12381-0L081i2GD..GUN12#..PHL¥1,950202312-202407

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i2GD..GUN12#..PHL¥490202312-202407

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i2GD..GUN12#..PHL¥5,700202312-202407

90105T0073

main90105-T0073

90119T0134

main90119-T0134¥90

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511¥100

90178T0015

main90178-T0015

90178T0087

main90178-T0087

16 parts on this diagram · 4 diagrams in section
