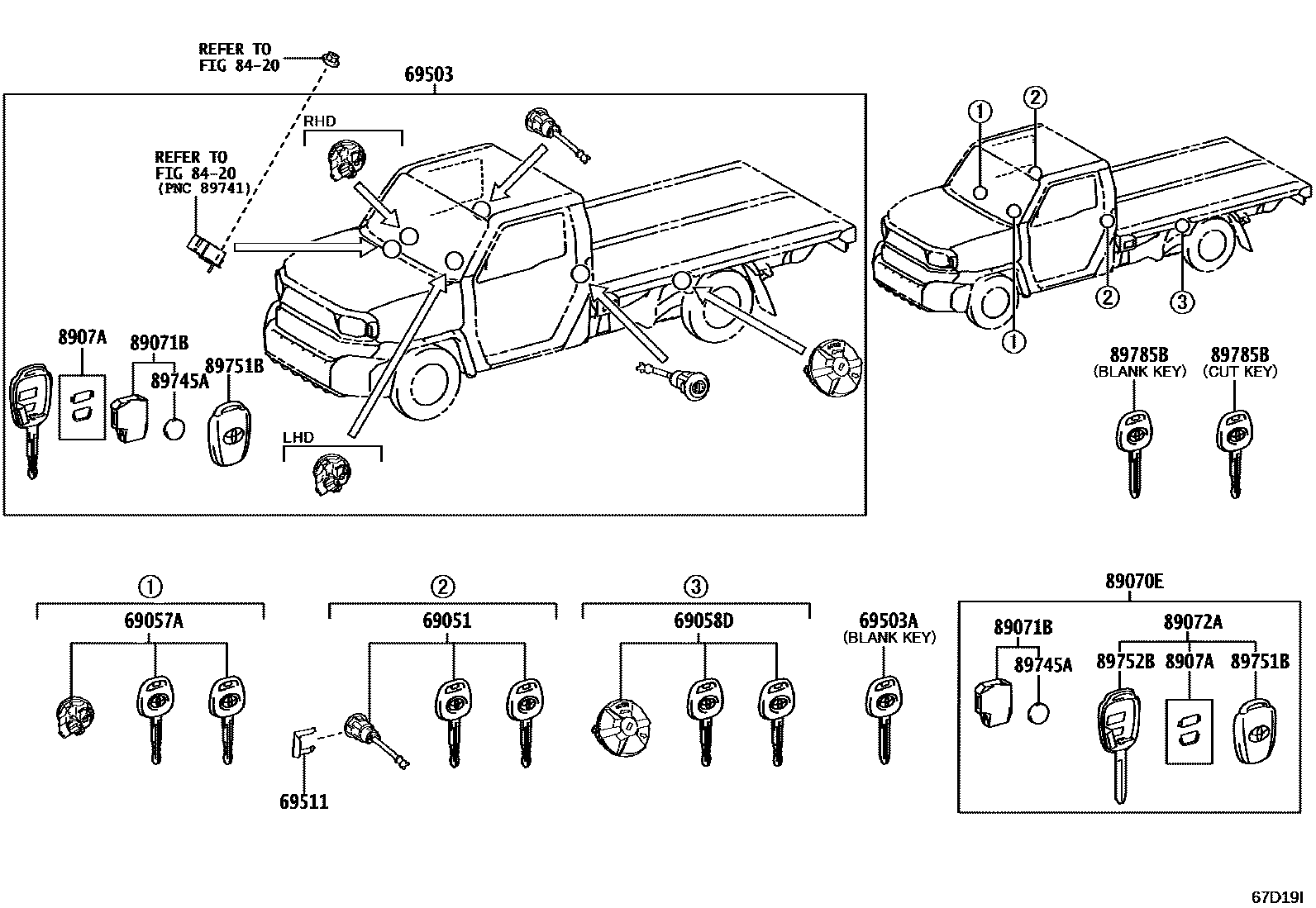

Toyota HILUX CHAMP — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0K240iGUN11#,TGN110..IDN202312-202407

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0K200iGUN112,TGN110..(L,S)..IDN202409

main69057-0K210iGUN11#,TGN110..H..IDN202312-202407

main69057-0K350iGUN120..IV3202312-202407

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-0K030iGUN11#..IDN202312-202407

main69058-0K060iTGN11#..THAI202312-202407

69503CYLINDER SET, LOCK

main69005-0KM90iTGN110..(L,S)..IDN202409

main69005-0KN00iTGN11#..THAI202312-202407

main69005-0KN30iGUN110,12#..LA,THAI202312-202407

main69005-0KN40iGUN112..S202409

main89704-F0830iGUN120..IV3202312-202407

69503AKEY, BLANK

main69515-0K140iGUN112,TGN110..(L,S)..IDN202409

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-KK010iGUN11#,TGN110..IDN202312-202407

8420

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0KR00iGUN120..IV3202312-202407

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D071iGUN120..IV3202312-202407

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0KA60iGUN120..IV3202312-202407

8907ASWITCH SET, TRANSMITTER

main8907A-52010iGUN120..IV3¥740202312-202407

89745ABATTERY, TRANSMITTER

main89745-0D040iGUN120..IV3¥440202312-202407

CR1620

89751BCOVER, TRANSMITTER HOUSING

main89751-42090iGUN120..IV3¥590202312-202407

89752BCASE, TRANSMITTER HOUSING

main89752-0K470iGUN120..IV3202312-202407

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-0D150iGUN110,12#..THAI202312

SMART ENTRY-WITH,CUT KEY

main89785-0D150iGUN110,12#..THAI202312-202407

CUT KEY

main89785-0D170iGUN11#,TGN110..H..IDN¥2,580202312-202407

BLANK KEY

main89785-0D170iGUN110,12#..THAI¥2,580202312

SMART ENTRY-WITH,BLANK KEY

15 parts on this diagram · 1 diagram in section
