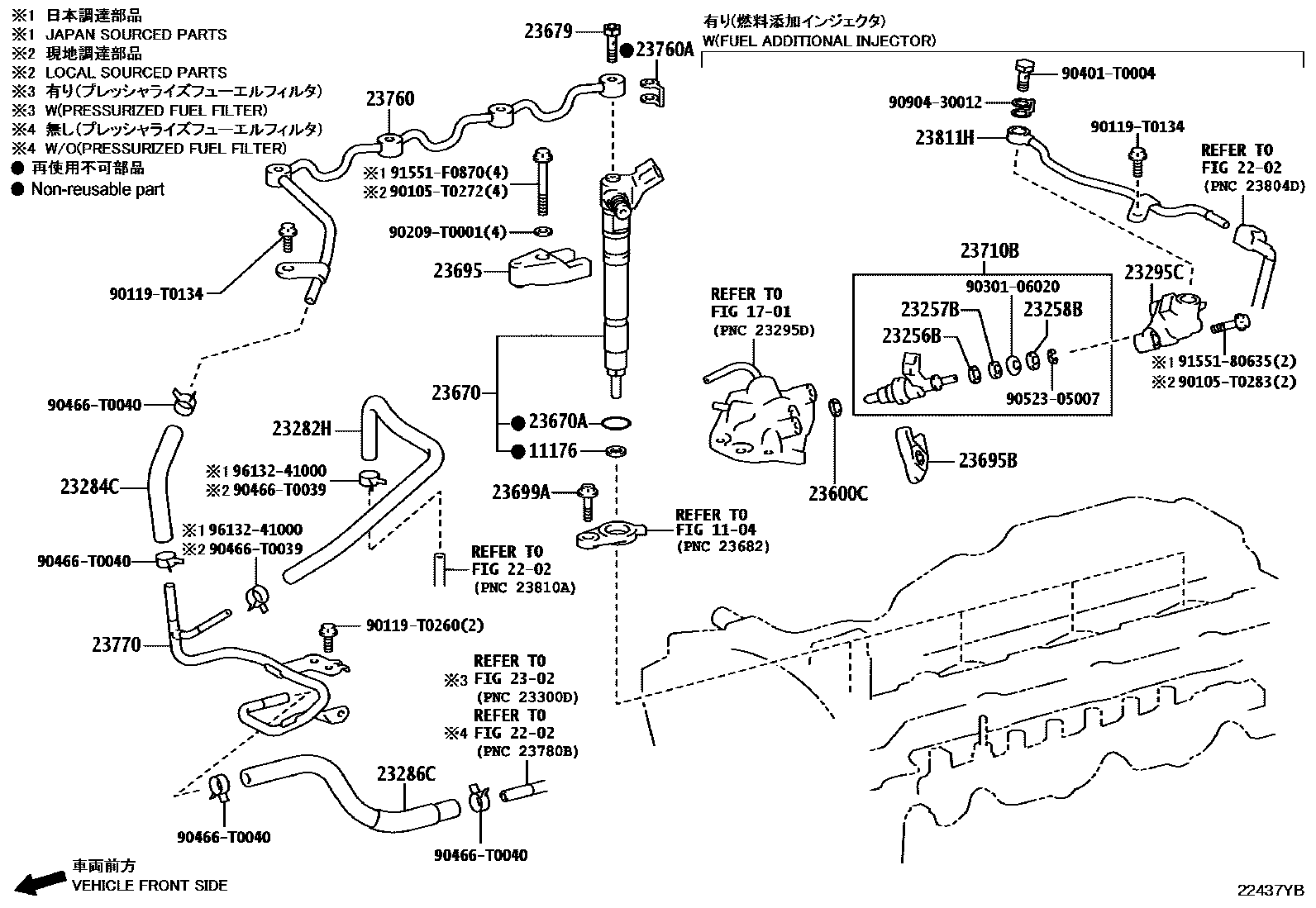

Toyota HILUX CHAMP — INJECTION NOZZLE

1104

11176SEAT, INJECTION NOZZLE

main11176-0E010i2GD..GUN12#..PHL202312-202407

(L)

main11176-33010i2GD..GUN12#..PHL¥300202312-202407

(J)

1701

2202

2302

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i2GD..GUN110,12#..THAI¥190202312

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i2GD..GUN110,12#..THAI¥190202312

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i2GD..GUN110,12#..THAI¥210202312

23282HHOSE, FUEL, NO.4

main23282-0E012i2GD..GUN12#..PHL¥800202312-202407

23284CHOSE, FUEL, NO.5

main23284-0E010i2GD..GUN12#..PHL202312-202407

23286CHOSE, FUEL, NO.6

main23286-0E011i2GD..GUN12#..PHL202312-202407

23295CHOLDER, INJECTOR

main23296-0E010i2GD..GUN110,12#..THAI202312

23600CGASKET(FOR HOLDER & NOZZLE SET)

main90430-T0019i2GD..GUN110,12#..THAI202312

23670INJECTOR ASSY

main23670-09560i2GD..GUN110,12#..THAI¥50,400202312

main23670-09590i2GD..GUN12#..PHL202312-202407

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i2GD..GUN11#,12#..IDN,LA,THAI¥160202312-202407

23679SCREW, INJECTOR FOLLOW

main90401-T0007i2GD..GUN12#..PHL202312-202407

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

(L)

main23695-11010i2GD..GUN12#..PHL¥990202312-202407

(J)

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-0E020i2GD..GUN110,12#..THAI202312

(L)

main23695-28010i2GD..GUN110,12#..THAI¥550202312

(J)

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i2GD..GUN110,12#..THAI¥26,900202312

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E011i2GD..GUN12#..PHL¥3,300202312-202407

23760AGASKET

main90430-T0017i2GD..GUN12#..PHL202312-202407

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E011i2GD..GUN12#..PHL¥2,460202312-202407

23811HPIPE, FUEL, NO.1

main23811-08010i2GD..GUN110,12#..THAI¥2,070202312

90105T0272

main90105-T0272

90105T0283

main90105-T0283

90119T0134

main90119-T0134¥90

90119T0260

main90119-T0260

90209T0001

main90209-T0001

9030106020

main90301-06020¥170

90401T0004

main90401-T0004

90466T0039

main90466-T0039¥80

90466T0040

main90466-T0040¥100

9052305007

main90523-05007¥0

9090430012

main90904-30012¥360

9155180635

main91551-80635¥80

91551F0870

main91551-F0870¥100

9613241000

main96132-41000¥80

38 parts on this diagram · 1 diagram in section
