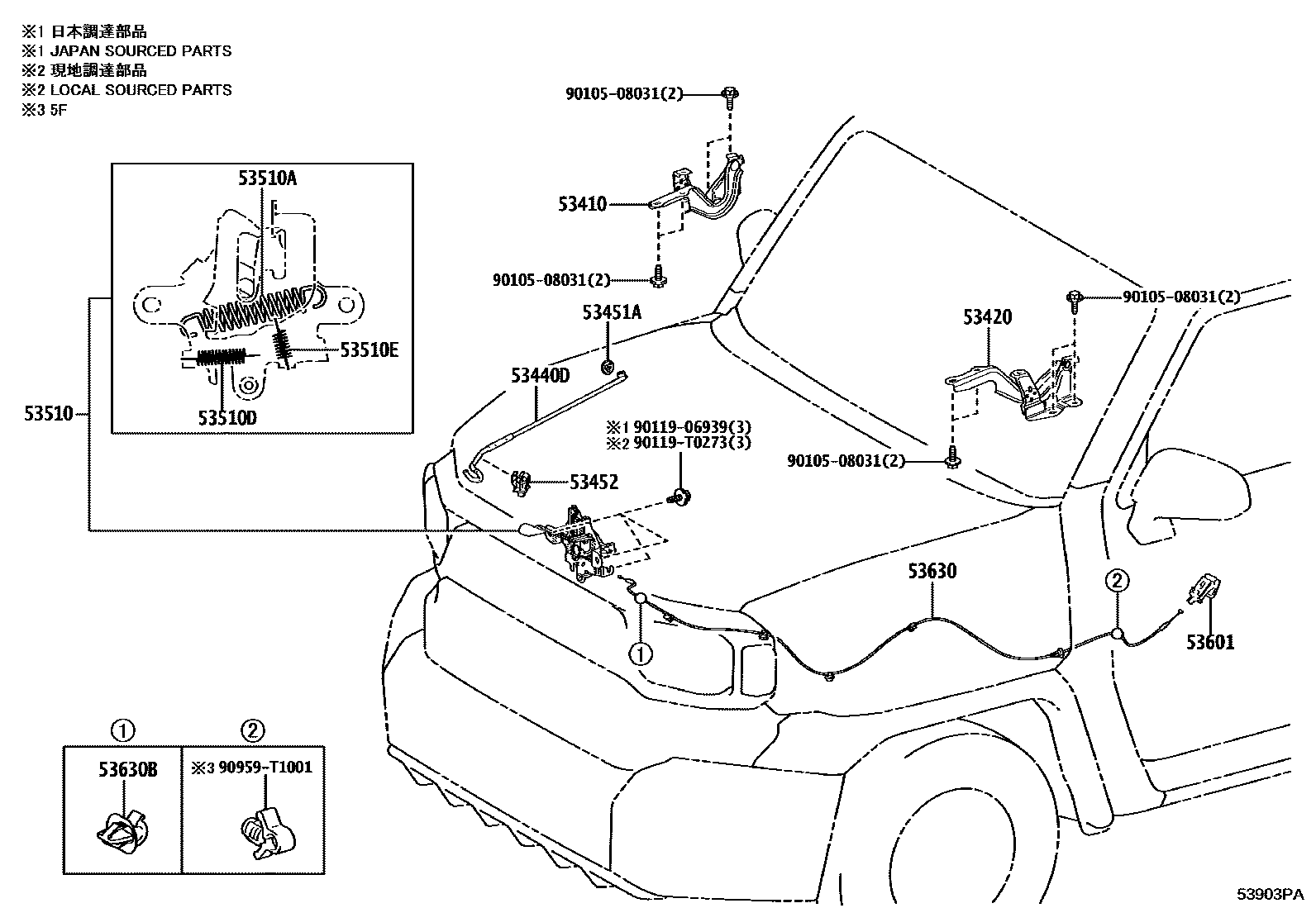

Toyota HILUX CHAMP — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-KK010iGUN12#,TGN110..PHL202312-202407

53420HINGE ASSY, HOOD, LH

main53420-KK010iGUN12#,TGN110..PHL202312-202407

53440DSUPPORT ASSY, HOOD

main53440-KK010iGUN12#,TGN110..PHL202312-202407

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-T0006iGUN12#,TGN110..PHL202312-202407

53452HOLDER, HOOD STAY

main53452-26020iGUN110,12#,TGN11#..LA,THAI¥340202312-202407

53510LOCK ASSY, HOOD

main53510-KK010iGUN11#,TGN110..IDN202312

main53510-KK020iGUN12#,TGN110..PHL202312-202407

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGUN12#,TGN110..PHL¥90202312-202407

WD=1.8,CW=13

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGUN110,12#,TGN11#..LA,THAI202312-202407

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN12#,TGN110..PHL202312-202407

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iGUN11#,TGN110..IDN202312-202407

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K430iGUN11#,TGN110..IDN202312

main53630-0K440iGUN122..LA202312-202407

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-T0003iGUN12#,TGN110..PHL202312-202407

9010508031

main90105-08031¥110

9011906939

main90119-06939¥60

90119T0273

main90119-T0273

90959T1001

main90959-T1001

16 parts on this diagram · 2 diagrams in section
