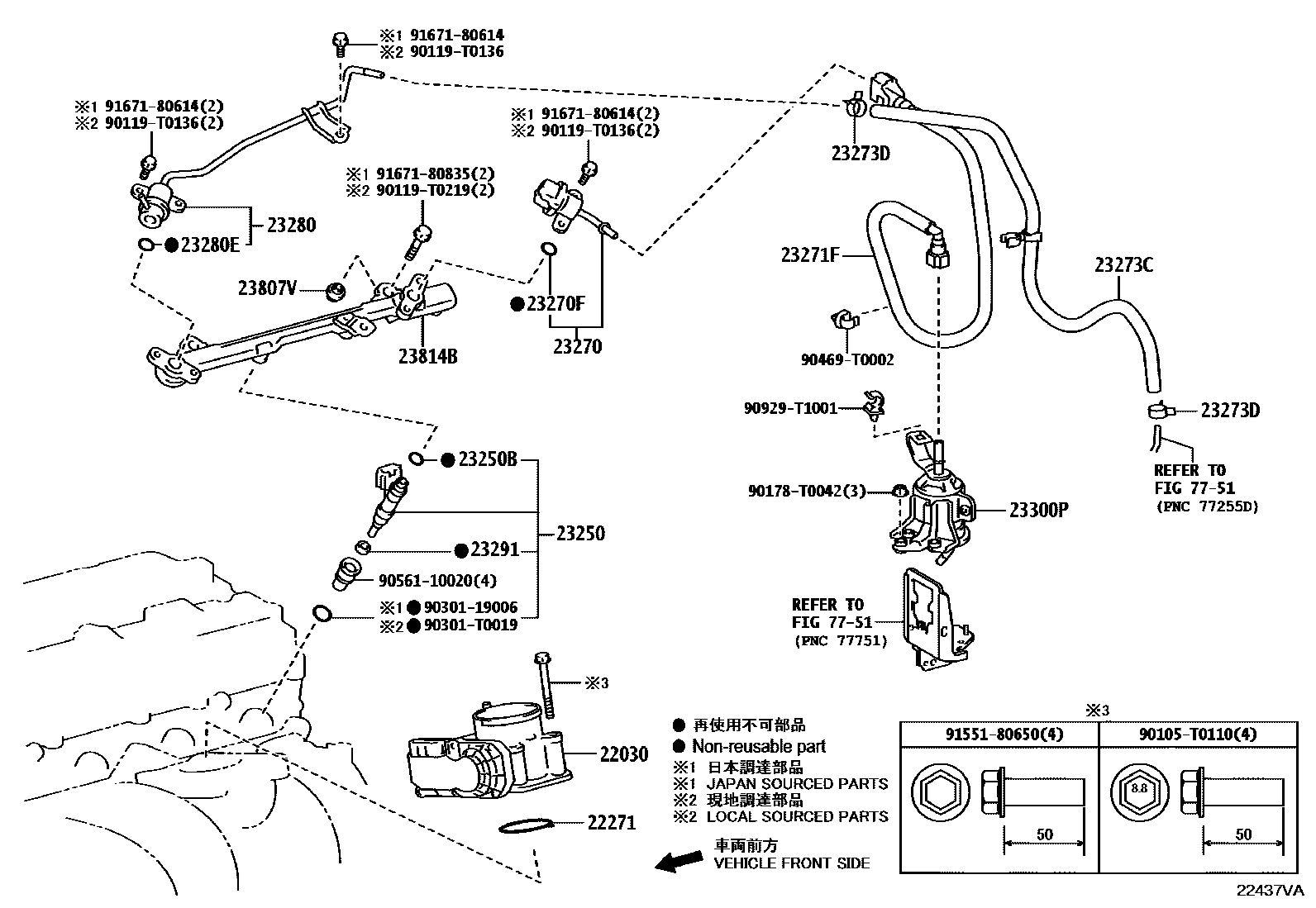

Toyota HILUX CHAMP — FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(L)
(J)
(J)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23271FHOSE, FUEL
23273CHOSE, FUEL, NO.2
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23300PFILTER, FUEL(FOR EFI)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
(L)
(J)
7751
90105T0110
90119T0136
main90119-T0136
90119T0219
main90119-T0219
90178T0042
main90178-T0042
9030119006
90301T0019
main90301-T0019
90469T0002
main90469-T0002
9056110020
90929T1001
main90929-T1001
9155180650
9167180614
9167180835
28 parts on this diagram · 1 diagram in section
