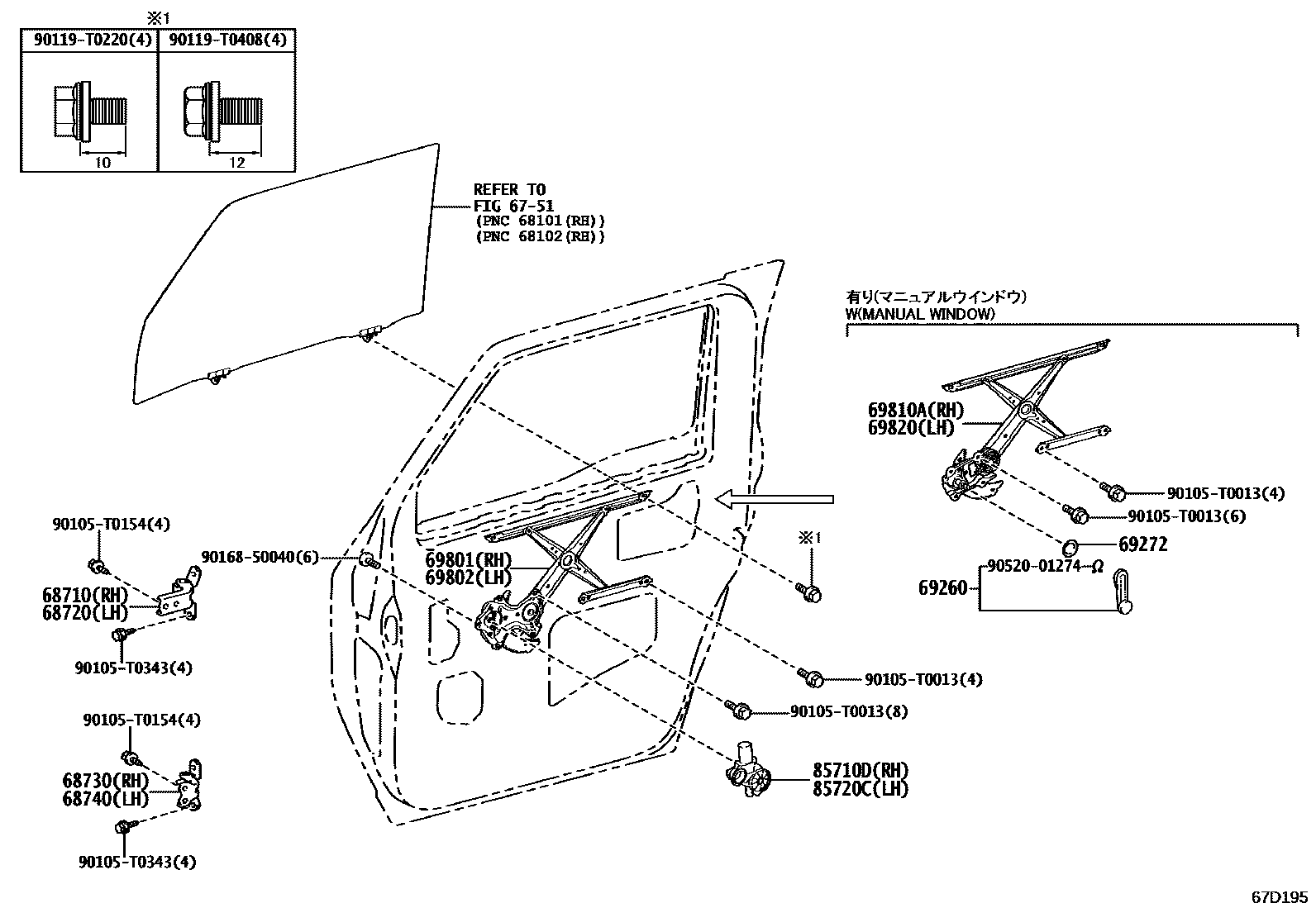

Toyota HILUX CHAMP — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iGUN12#,TGN110..PHL¥2,030202312-202407

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iGUN12#,TGN110..PHL¥2,030202312-202407

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iGUN12#,TGN110..PHL202312-202407

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iGUN12#,TGN110..PHL202312-202407

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K010-C0iGUN122,TGN110..PHL202312-202407

BLACK,TRIM2#

main69260-0K010-C0iGUN122..LA;TGN11#..THAI202312

POWER WINDOW-WITH, WITHOUT(JAMPRO),BLACK,TRIM2#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020iGUN122,TGN110..PHL202312-202407

main69268-04020iGUN122..LA;TGN11#..THAI202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K140iGUN120..IV3¥4,250202312-202407

main69801-0K140iGUN110,12#..THAI¥4,250202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K140iGUN120..IV3¥4,250202312-202407

main69802-0K140iGUN110,12#..THAI¥4,250202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0K240iGUN122,TGN110..PHL202312-202407

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0K260iGUN122,TGN110..PHL202312-202407

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K180iGUN120..IV3¥15,900202312-202407

main85710-0K180iGUN110,12#..THAI¥15,900202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K180iGUN120..IV3¥15,900202312-202407

main85720-0K180iGUN110,12#..THAI¥15,900202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

90119T0408

main90119-T0408¥60

9016850040

main90168-50040¥70

9052001274

main90520-01274¥160

20 parts on this diagram · 1 diagram in section
