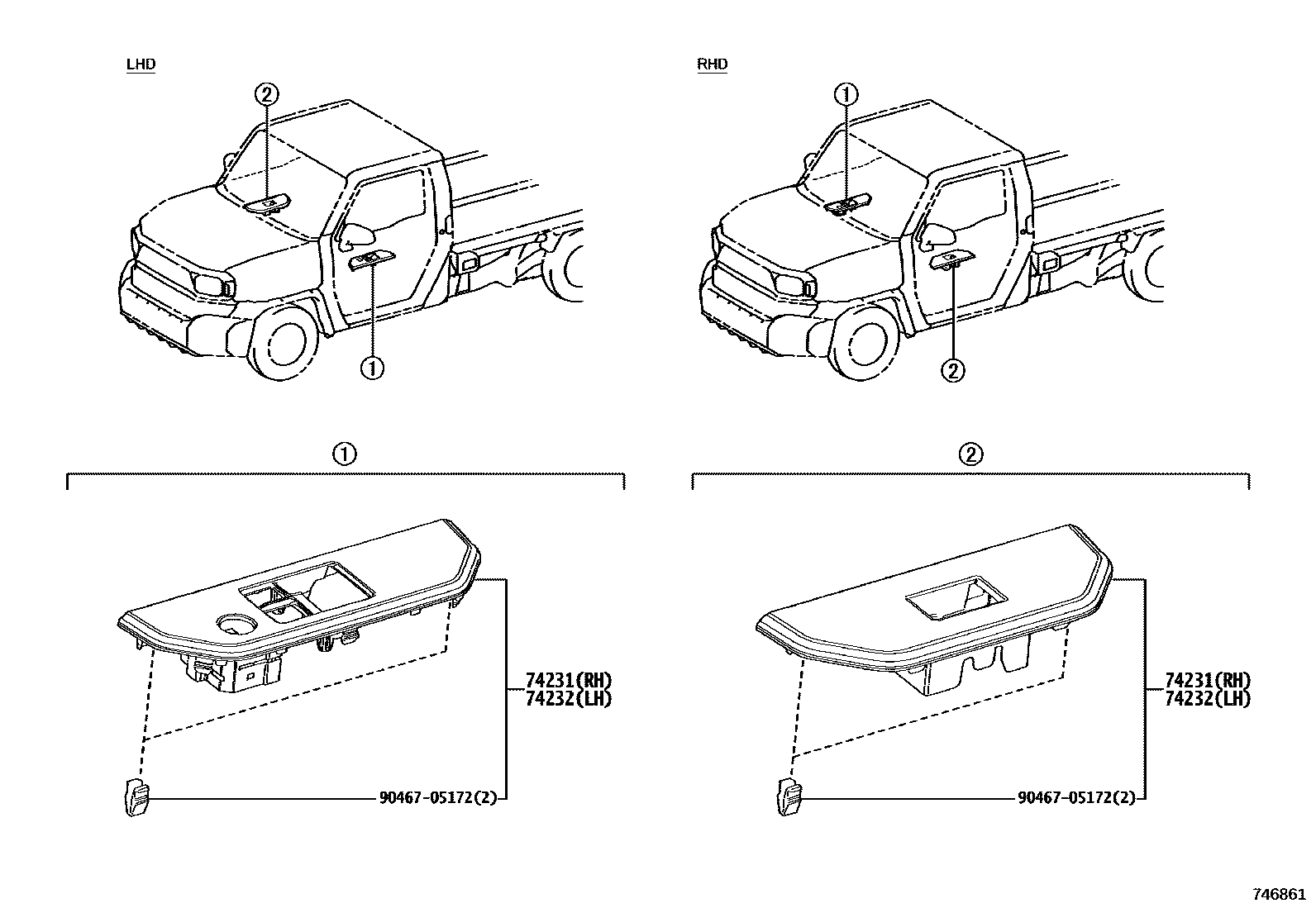

Toyota HILUX CHAMP — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0KB40iGUN110..IDN202409

main74231-0KB40iGUN110,120..THAI..CBU202312

OUTSIDE REAR VIEW MIRROR-*162 & BLACK

main74231-0KB40iGUN110,120..THAI..CBU202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)&OUTSIDE REAR VIEW MIRROR-*162 & BLACK

main74231-0KB50iGUN120..IV3202312-202407

main74231-0KB90iGUN122..THAI;GUN110..THAI..IV3202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0KB50iGUN110..IDN202409

main74232-0KB50iGUN110,12#..THAI202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)

main74232-0KB50iGUN110,12#..THAI202312

POWER WINDOW-WITH, WITHOUT(JAMPRO)&OUTSIDE REAR VIEW MIRROR-*162 & BLACK

main74232-0KB60iGUN120..IV3202312-202407

9046705172

main90467-05172¥60

3 parts on this diagram · 2 diagrams in section
