Toyota HILUX CHAMP — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0KQ60iGUN12#,TGN110..PHL202312-202407

main86101-0KQ70iGUN110,12#,TGN11#..THAI202312

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-0K060iGUN12#,TGN110..PHL202312-202407

86392ORNAMENT, ANTENNA

main86392-0K020iGUN12#,TGN110..PHL202312-202407

86396NUT, ANTENNA

main86396-16020iGUN12#,TGN110..PHL¥450202312-202407

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340¥100

9011906915

main90119-06915¥60

90119T0130

main90119-T0130

90178T0007

main90178-T0007¥80

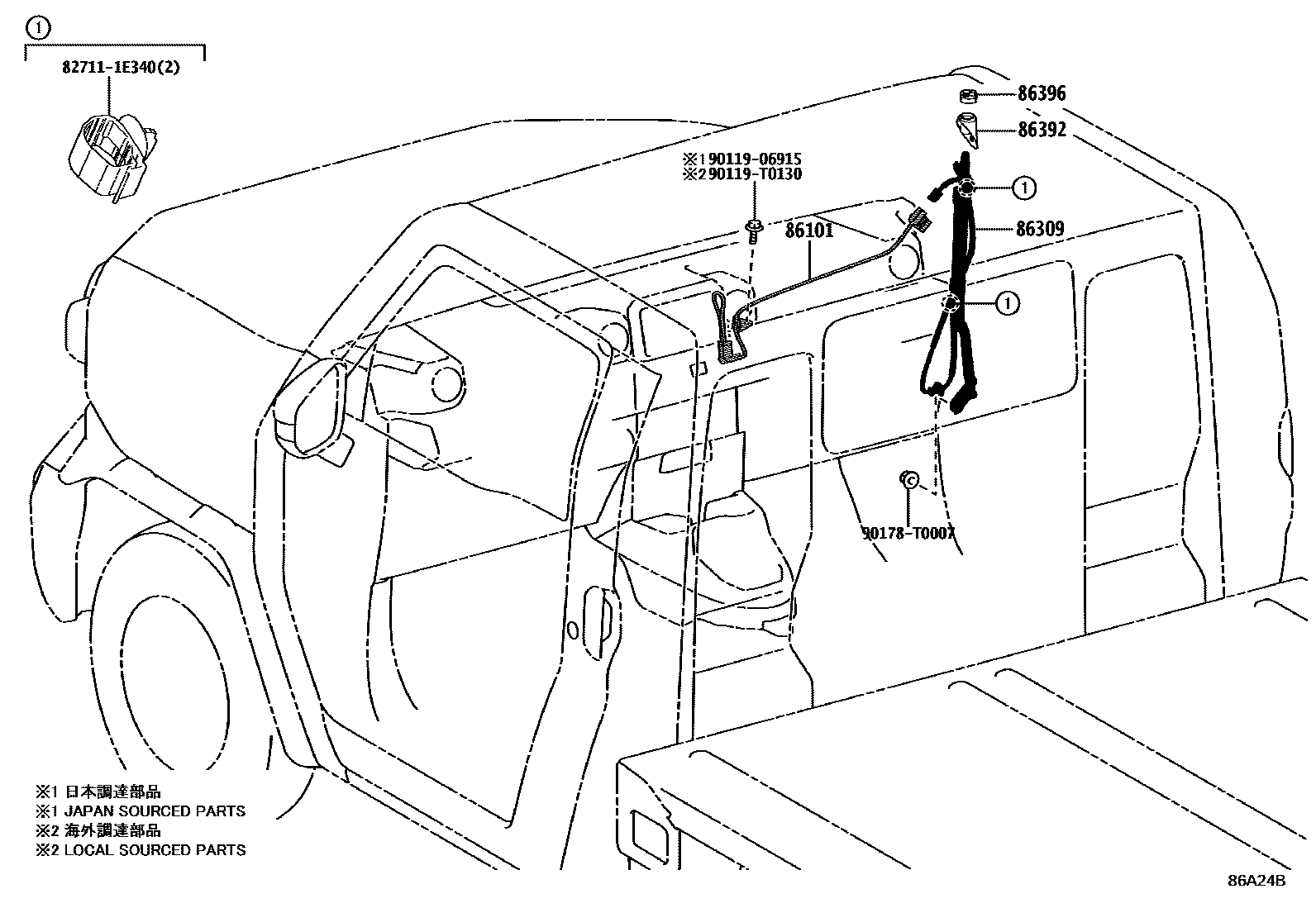

8 parts on this diagram · 1 diagram in section
