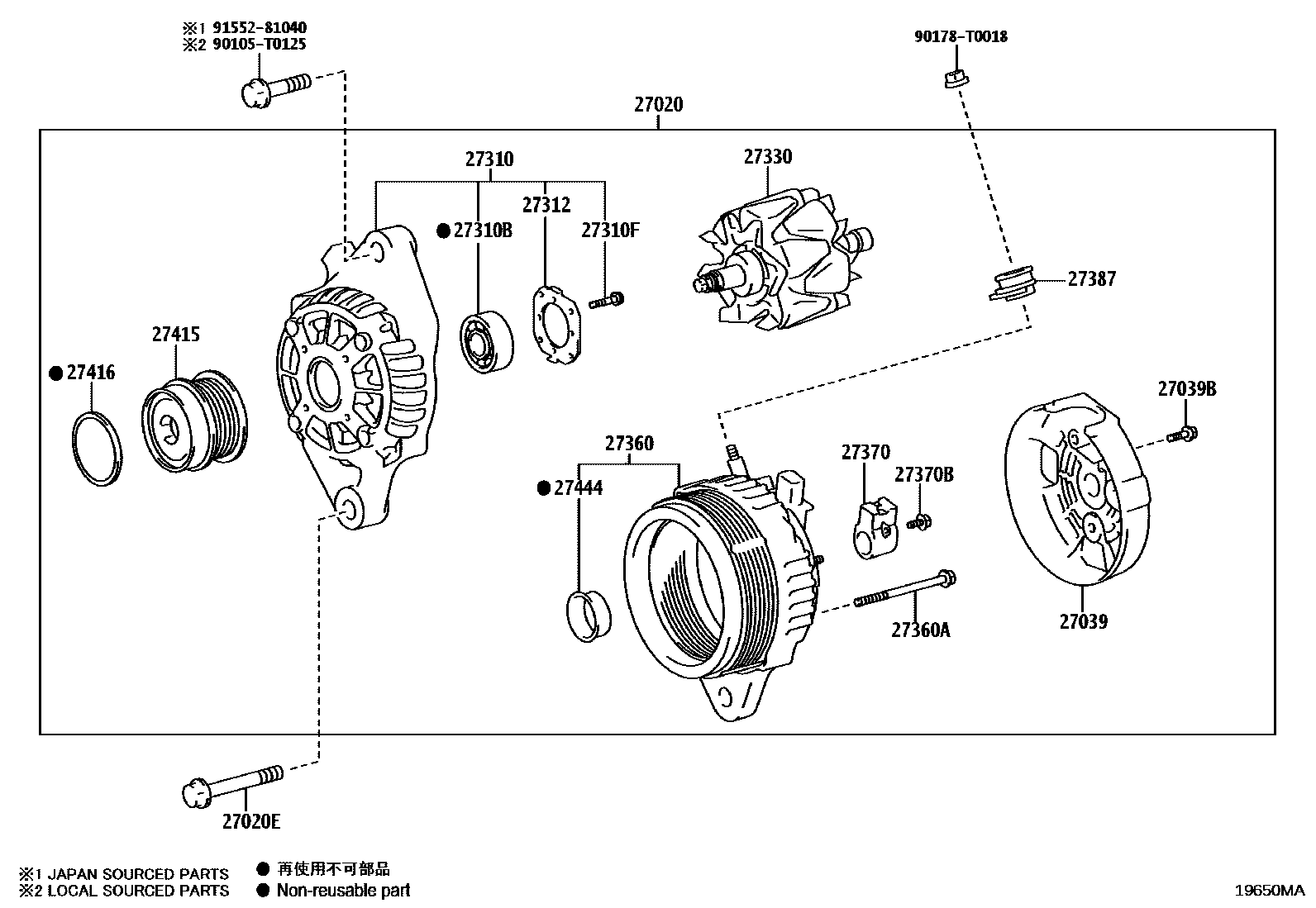

Toyota HILUX CHAMP — ALTERNATOR

0001 112V 80A 0002 112V 80A

27020ALTERNATOR ASSY

main27060-0C110i1TR..TGN110..PHL202312-202407

12V 80A

main27060-0L280i2GD..GUN110,12#..LA,THAI¥76,900202312-202407

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-T0211i1TR,2TR..TGN11#..THAI202312-202407

(L)

main91552-81080i1TR,2TR..TGN11#..THAI¥190202312-202407

(J)

27039COVER, ALTERNATOR REAR END

main27039-0M100i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27039BBOLT(FOR ALTERNATOR REAR END COVER)

main90068-04047i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C110i1TR..TGN110..PHL202312-202407

main27310-0L310i2GD..GUN12#..PHL202312-202407

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022i2GD,1TR,2TR..GUN110,12#,TGN11#..LA,THAI202312-202407

27312PLATE, RETAINER

main27312-0C020i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27330ROTOR ASSY, ALTERNATOR

main27330-0M100i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27360COIL ASSY, ALTERNATOR

main27360-0C110i1TR..TGN110..PHL202312-202407

main27360-0L220i2GD..GUN12#..PHL202312-202407

27360ABOLT(FOR ALTERNATOR COIL)

main90068-04048i2GD,1TR,2TR..GUN110,12#,TGN11#..LA,THAI202312-202407

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i1TR..TGN110..PHL202312-202407

main27370-0M040i2GD..GUN12#..PHL202312-202407

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023i2GD,1TR..GUN12#,TGN110..PHL202312-202407

27387INSULATOR, TERMINAL

main27387-0C020i2GD,1TR,2TR..GUN110,12#,TGN11#..LA,THAI202312-202407

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L030i2GD..GUN12#..PHL202312-202407

main27415-0W053i1TR..TGN110..PHL¥9,000202312-202407

27416CAP, ALTERNATOR PULLEY

main27416-0L050i2GD..GUN12#..PHL202312-202407

main27416-0W050i1TR..TGN110..PHL¥340202312-202407

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i2GD,1TR..GUN12#,TGN110..PHL202312-202407

90105T0125

main90105-T0125¥140

90178T0018

main90178-T0018¥70

9155281040

main91552-81040¥120

20 parts on this diagram · 2 diagrams in section
