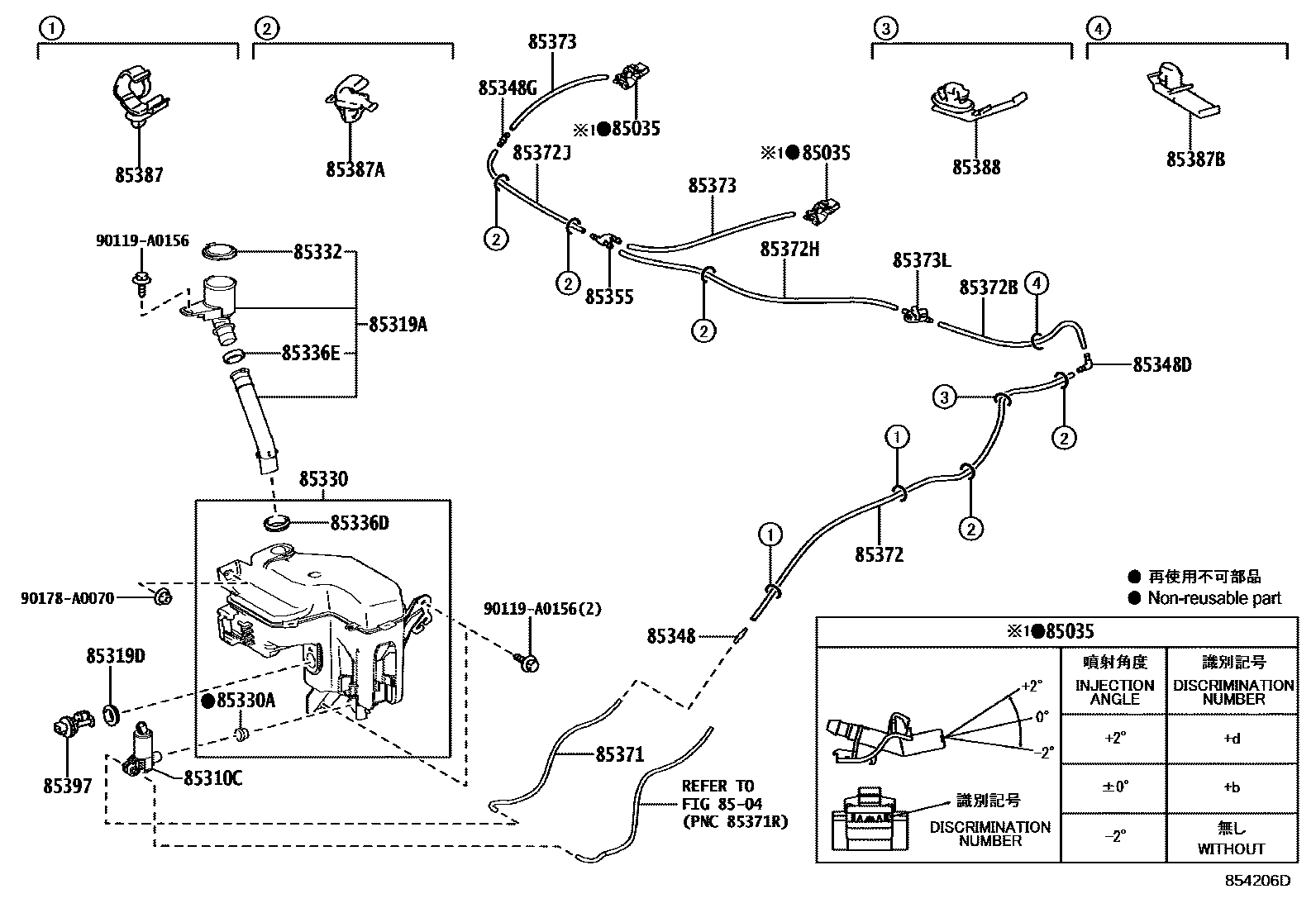

Toyota HIGHLANDER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
ANGLE +2
ANGLE +2
ANGLE +2
8504
85310CMOTOR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=375
L=375
L=375
L=375
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=900
L=900
L=900
L=900
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1250(*H,L=340)
L=1250(*H,L=340)
L=1250(*H,L=340)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=590
L=590
L=590
L=590
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1250(*H,L=320)
L=1250(*H,L=320)
L=1250(*H,L=320)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1250(*H,L=320)
L=1250(*H,L=320)
L=1250(*H,L=320)
85373LGROMMET, WASHER
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
90119A0156
90178A0070
main90178-A0070
28 parts on this diagram · 1 diagram in section
