Toyota HIGHLANDER — THROTTLE LINK & VALVE LEVER (ATM)

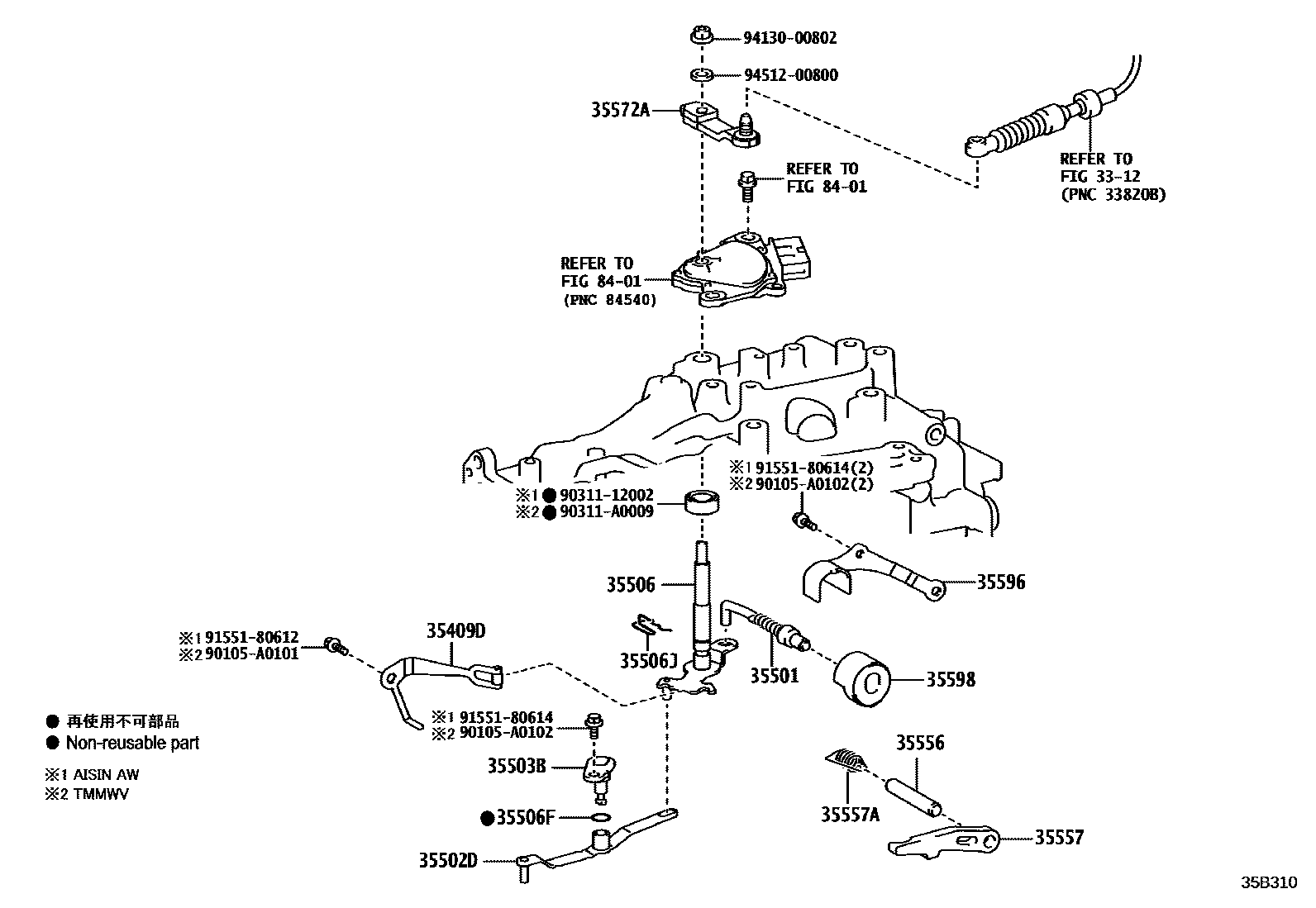

Parts diagram
3312
35409DSPRING SUB-ASSY, MANUAL DETENT
main35409-48060i¥400201912-202410
35501ROD SUB-ASSY, PARKING LOCK
main35501-48040i¥1,210201912-202410
35502DLEVER SUB-ASSY, MANUAL VALVE LINK
main35502-48010i¥230201912-202410
35503BSHAFT SUB-ASSY, MANUAL VALVE LINK
main35503-48010i¥300201912-202410
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
main35506-06021i201912-202111
TMMWV:REFER 35-01
sub35506-48011¥1,240
main35506-06022i202111-202410
TMMWV:REFER 35-01
main35506-48021i201912-202202
AISIN AW:REFER 35-01
main35506-48022i¥930202202-202311
AISIN AW:REFER 35-01
main35506-48022i¥930202311
AISIN:REFER 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
main90301-09173i¥140202210-202311
AISIN AW:REFER 35-01
main90301-09173i¥140202311
AISIN:REFER 35-01
main90301-09173i¥140201912-202210
(J)
main90301-A0063i202210-202410
TMMWV:REFER 35-01
main90301-A0063i201912-202210
(L)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
main90524-09004i¥60201912-202410
35556SHAFT, PARKING LOCK PAWL
main35556-06010i201912-202010
TMMWV:REFER 35-01
sub35556-48030¥520
main35556-48030i¥520202010-202410
TMMWV:REFER 35-01
main35556-48040i201912-202311
AISIN AW:REFER 35-01
main35556-48040i202311
AISIN:REFER 35-01
35557PAWL, PARKING LOCK
main35557-48040i¥2,810201912-202410
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
main90508-29030i¥180201912-202410
35572ALEVER, TRANSMISSION CONTROL SHAFT
main35572-48050i¥810201912-202111
TMMWV:REFER 35-01
sub35572-48051¥740
main35572-48050i¥810201912-202111
AISIN AW:REFER 35-01
sub35572-48051¥740
main35572-48051i¥740202210-202410
main35572-48051i¥740202111-202210
TMMWV:REFER 35-01
main35572-48051i¥740202111-202210
AISIN AW:REFER 35-01
35596PLATE, PAWL STOPPER
main35596-06010i202210-202410
TMMWV:REFER 35-01
main35596-06010i201912-202210
(L)
main35596-48030i¥380202210-202311
AISIN AW:REFER 35-01
main35596-48030i¥380201912-202210
(J)
main35596-48030i¥380202311
AISIN:REFER 35-01
35598SLEEVE, PARKING LOCK
main35598-06020i201912-202210
(L)
main35598-06020i202210-202410
TMMWV:REFER 35-01
main35598-48040i¥770201912-202210
(J)
main35598-48040i¥770202311
AISIN:REFER 35-01
main35598-48040i¥770202210-202311
AISIN AW:REFER 35-01
8401
90105A0101
main90105-A0101
90105A0102
main90105-A0102¥60
9031112002
main90311-12002¥270
90311A0009
main90311-A0009
9155180612
main91551-80612¥60
9155180614
main91551-80614¥60
9413000802
main94130-00802¥90
9451200800
main94512-00800¥80

23 parts on this diagram · 1 diagram in section
