Toyota HIGHLANDER — TELEPHONE & MAYDAY

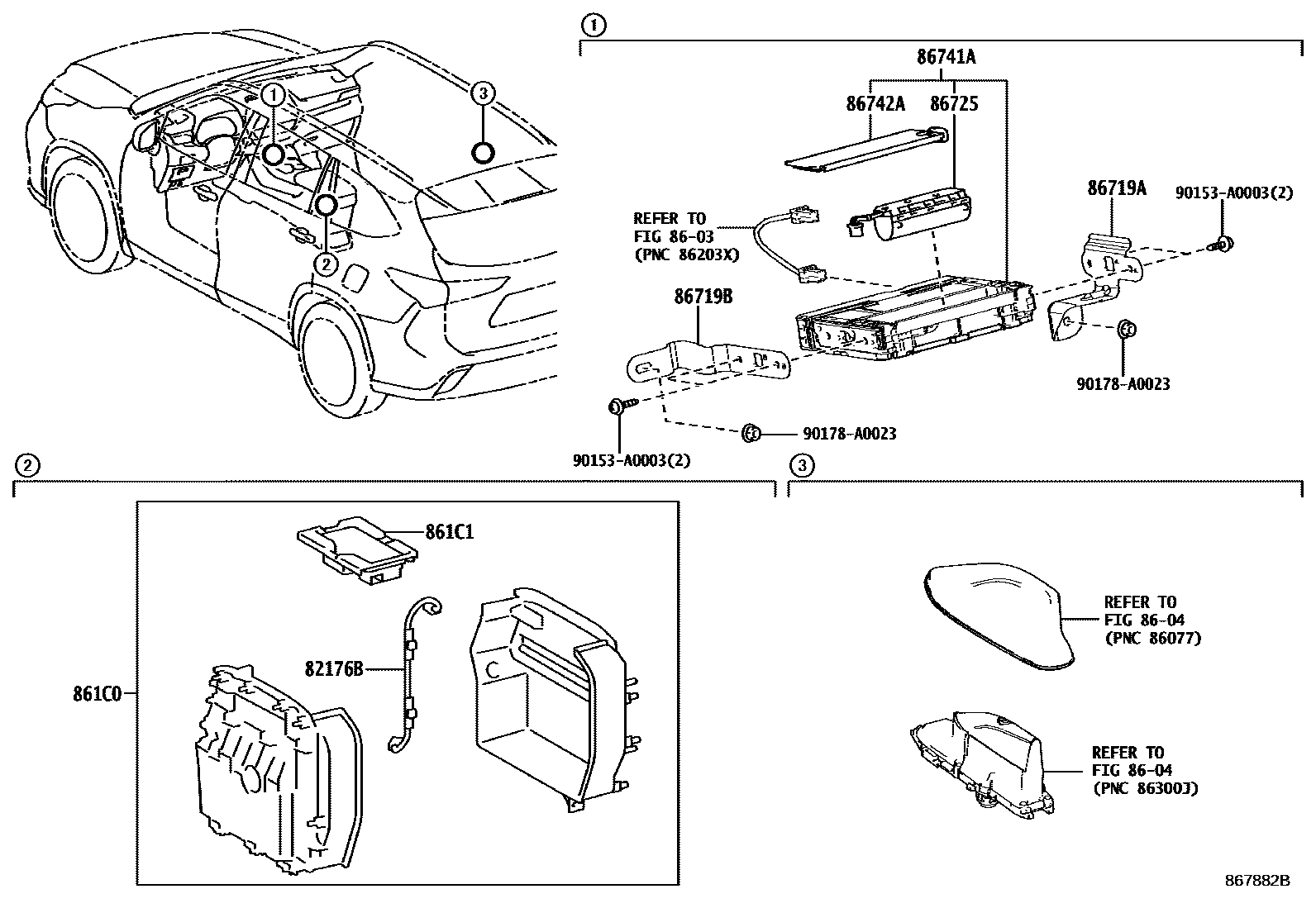

Parts diagram
82176BWIRE, REAR CONSOLE BOX
8603
8604
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
main861C0-0E070-C0i202210-202311
BLACK,TRIM1#,2#,41
main861C0-0E070-C0i202311
BLACK,TRIM1#,2#
main861C0-0E070-C0i202311
BLACK,TRIM2#,3#
main861C0-0E070-C0i202311
BLACK,TRIM1#,2#,41,42
main861C0-0E070-C0i202210-202311
BLACK,TRIM1#,2#
main861C0-0E070-C0i202210-202311
BLACK,TRIM2#,3#
main861C0-0E070-C0i202311-202410
BLACK,TRIM2#,3#
main861C0-0E070-E0i202311
NEUTRAL BEIGE,TRIM40
main861C0-0E070-E0i202311
NEUTRAL BEIGE,TRIM4#
main861C0-0E070-E0i202210-202311
NEUTRAL BEIGE,TRIM4#
main861C0-0E070-E0i202210-202311
NEUTRAL BEIGE,TRIM40
861C1CRADLE, MOBILE WIRELESS CHARGER
main861C0-YY020
86719ABRACKET, TELEPHONE NO.1
main86719-0E080i201912-202210
MEXICO SPEC&AUDIO-8INCH(AVN) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
MEXICO SPEC&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
PUERTO RICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
GUAM,SAIPAN SPEC&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
A.SAMOA SPEC&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
HAWAII SPEC&L PACKAGE&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
CANADA SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E080i201912-202210
MEXICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E080i202210-202311
MEXICO SPEC
main86719-0E080i202210-202311
GUAM,SAIPAN SPEC
main86719-0E080i202210-202311
A.SAMOA SPEC
main86719-0E080i202311-202410
main86719-0E080i202311
MEXICO SPEC
main86719-0E080i202311
GUAM,SAIPAN SPEC
main86719-0E080i202311
A.SAMOA SPEC
86719BBRACKET, TELEPHONE NO.2
main86719-0E090i201912-202210
CANADA SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
HAWAII SPEC&L PACKAGE&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
MEXICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
MEXICO SPEC&AUDIO-8INCH(AVN) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
MEXICO SPEC&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
PUERTO RICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
GUAM,SAIPAN SPEC&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
main86719-0E090i201912-202210
A.SAMOA SPEC&SATELLITE RADIO-WITHOUT
main86719-0E090i202210-202311
MEXICO SPEC
main86719-0E090i202210-202311
GUAM,SAIPAN SPEC
main86719-0E090i202210-202311
A.SAMOA SPEC
main86719-0E090i202311-202410
main86719-0E090i202311
MEXICO SPEC
main86719-0E090i202311
GUAM,SAIPAN SPEC
main86719-0E090i202311
A.SAMOA SPEC
86725BATTERY, MOBILEPHONE
main86725-06020i202311
A.SAMOA SPEC
main86725-06020i202311
GUAM,SAIPAN SPEC
main86725-06020i202311
MEXICO SPEC
main86725-06020i202210-202311
MEXICO SPEC
main86725-06020i202210-202311
GUAM,SAIPAN SPEC
main86725-06020i202210-202311
A.SAMOA SPEC
main86725-06020i202311-202410
main86725-0E010i¥7,500201912-202210
MEXICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
MEXICO SPEC&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
PUERTO RICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
GUAM,SAIPAN SPEC&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
A.SAMOA SPEC&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
HAWAII SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86725-0E010i¥7,500201912-202210
CANADA SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
86741ATRANSCEIVER, TELEMATICS
main86741-06130i202210-202311
A.SAMOA SPEC
main86741-06130i202210-202311
GUAM,SAIPAN SPEC
main86741-06130i202210-202311
MEXICO SPEC
main86741-0E061i201912-202210
MEXICO SPEC&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
HAWAII SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
CANADA SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
MEXICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
PUERTO RICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
GUAM,SAIPAN SPEC&SATELLITE RADIO-WITHOUT
main86741-0E061i201912-202210
A.SAMOA SPEC&SATELLITE RADIO-WITHOUT
main86741-0E210i202311-202410
main86741-0E210i202311
MEXICO SPEC
main86741-0E210i202311
GUAM,SAIPAN SPEC
main86741-0E210i202311
A.SAMOA SPEC
86742ACOVER, TRANSCEIVER
main86742-0E020i¥680201912-202210
HAWAII SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
CANADA SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
MEXICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
MEXICO SPEC&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
PUERTO RICO SPEC&AUDIO-8INCH(DA) DECKLESS 6SP&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
GUAM,SAIPAN SPEC&SATELLITE RADIO-WITHOUT
main86742-0E020i¥680201912-202210
A.SAMOA SPEC&SATELLITE RADIO-WITHOUT
main86742-78010i202210-202311
MEXICO SPEC
main86742-78010i202210-202311
GUAM,SAIPAN SPEC
main86742-78010i202210-202311
A.SAMOA SPEC
main86742-78010i202311-202410
main86742-78010i202311
MEXICO SPEC
main86742-78010i202311
GUAM,SAIPAN SPEC
main86742-78010i202311
A.SAMOA SPEC
90153A0003
main90153-A0003
90178A0023
main90178-A0023

12 parts on this diagram · 2 diagrams in section
